Position Light Bulb Replacement
Position Light Bulb Replacement
1.
Disconnect the connector and remove the sealing cover of the headlight low beam.
2.

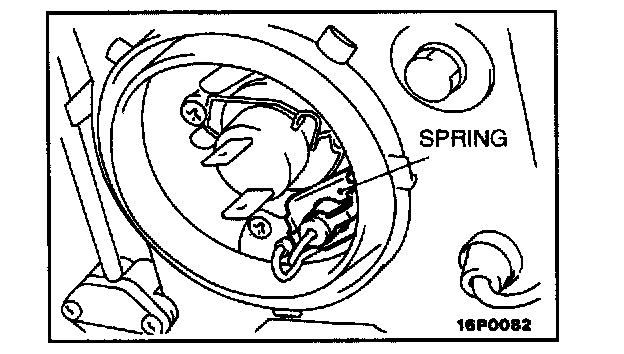

Lift the spring and pull out the position light bulb.
