Automatic Transmission/Transaxle

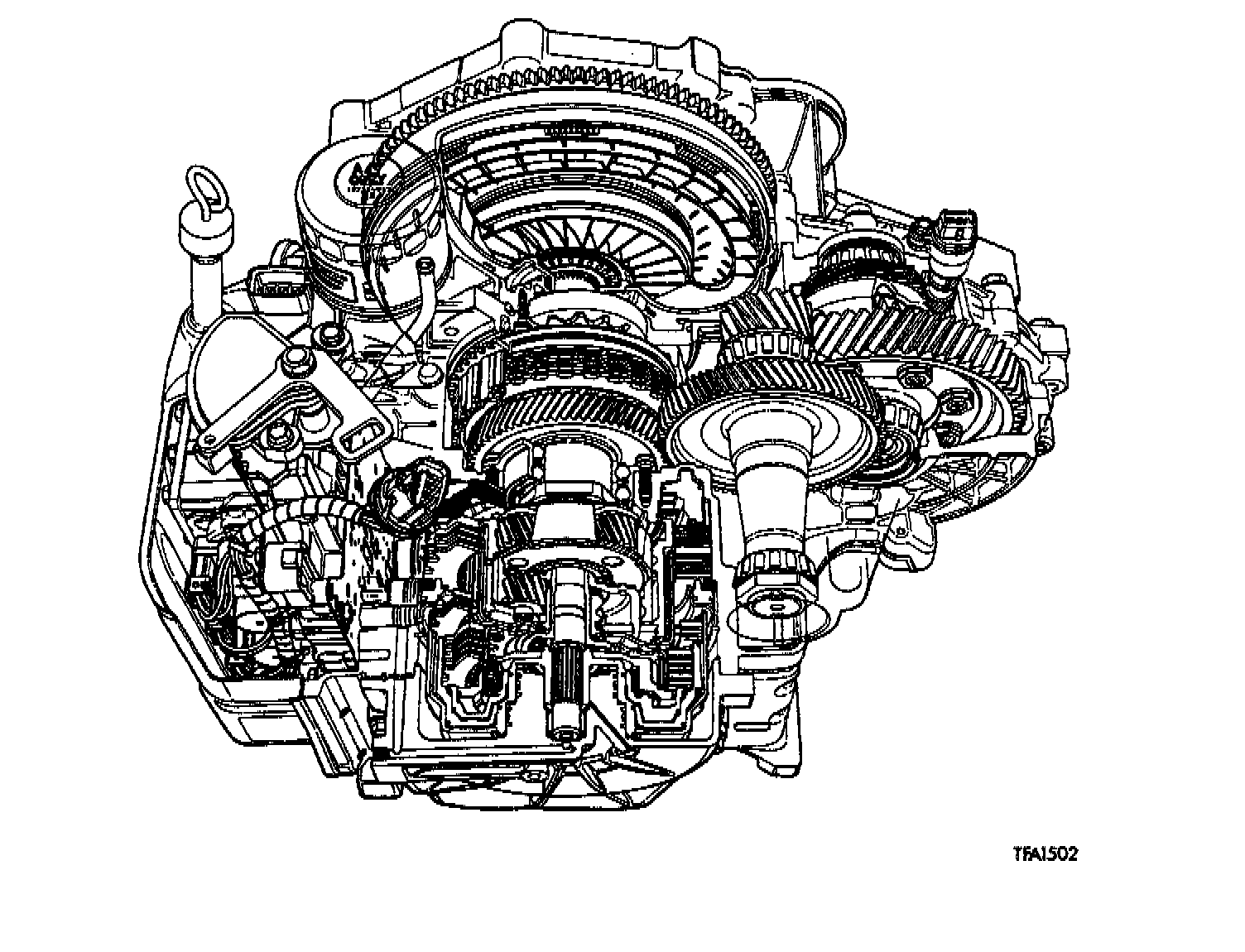

Cutaway View Of The Transmission

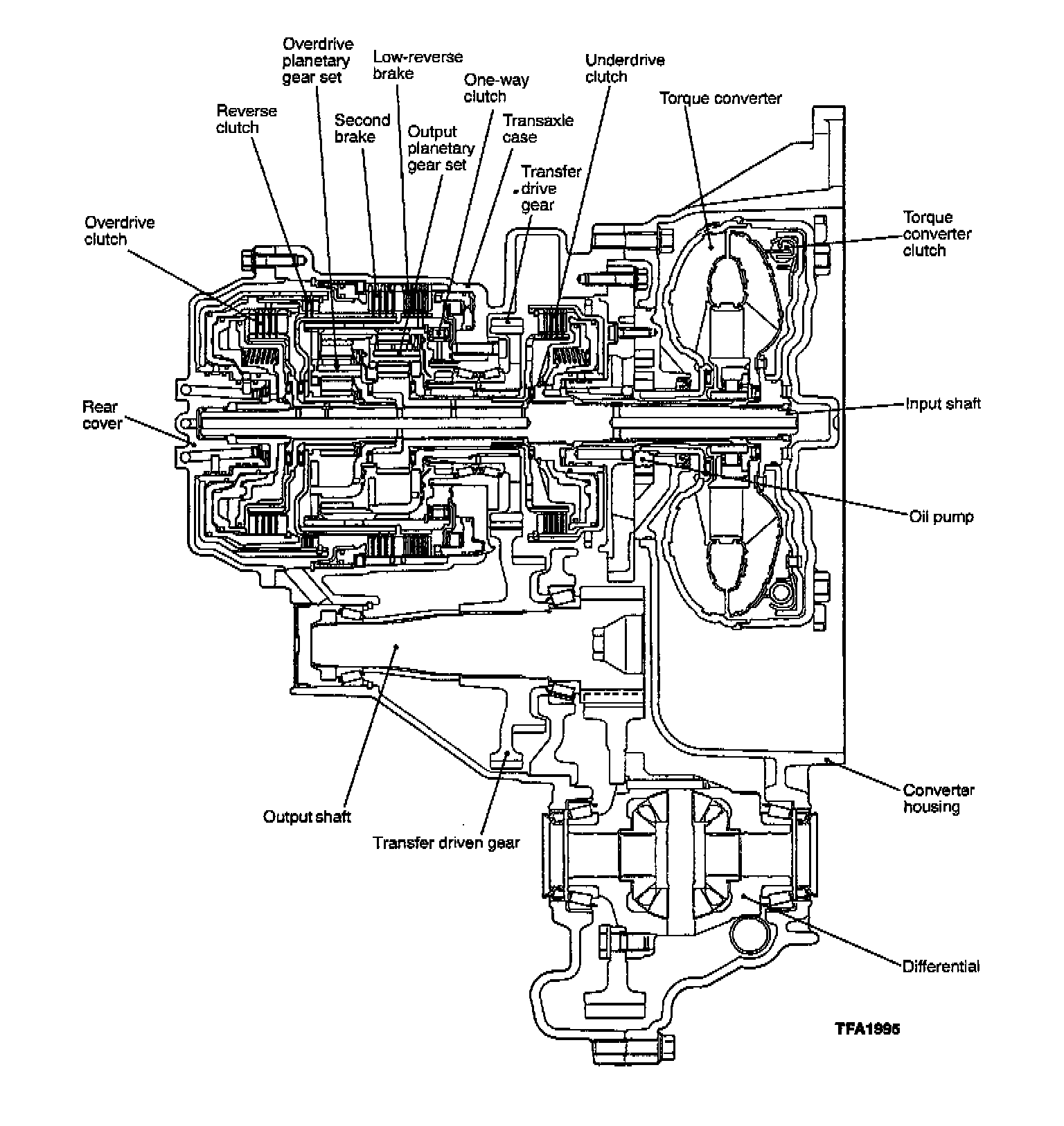

Sectional View F4A51

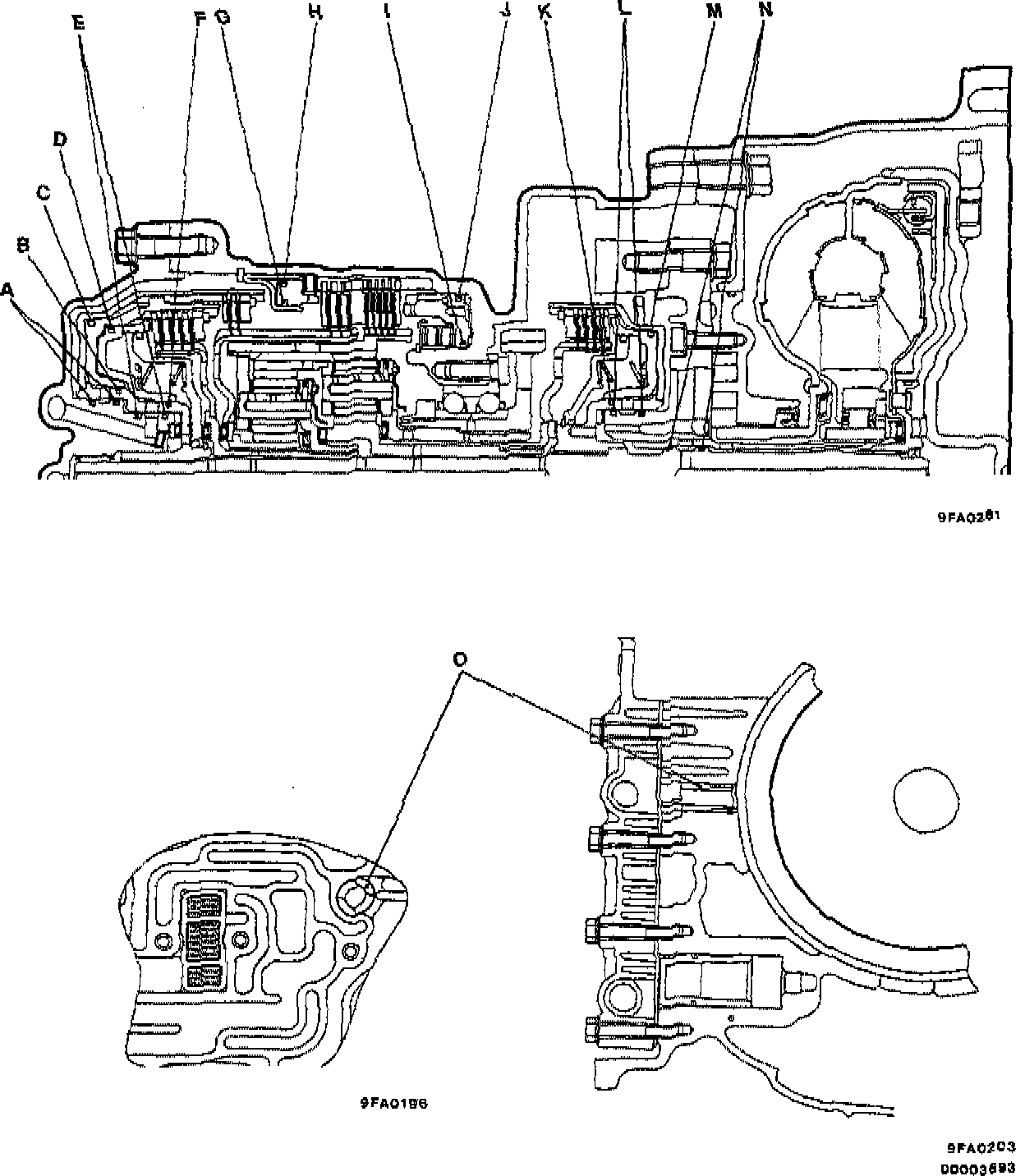

Oil Seal Layout

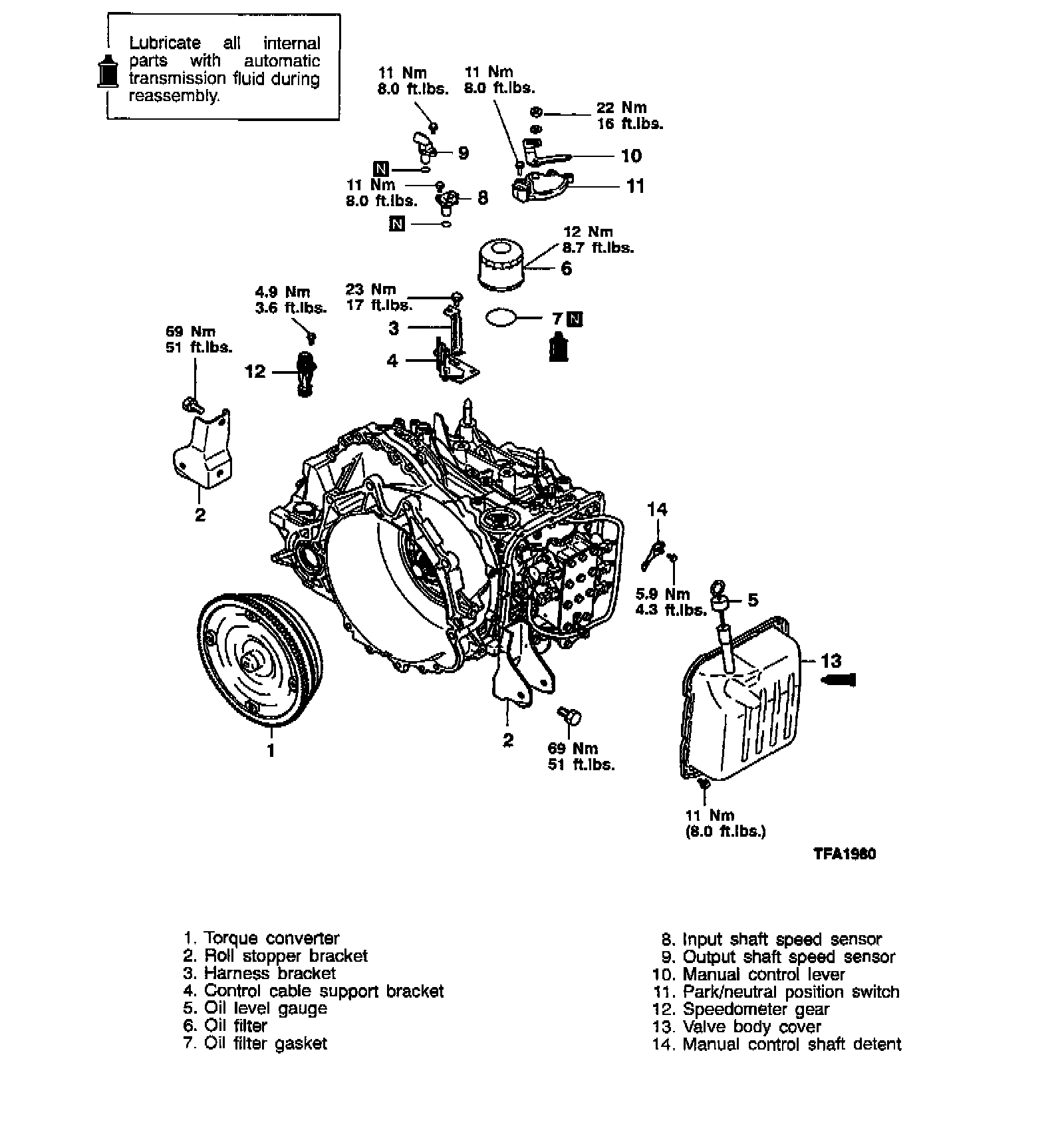

External Components

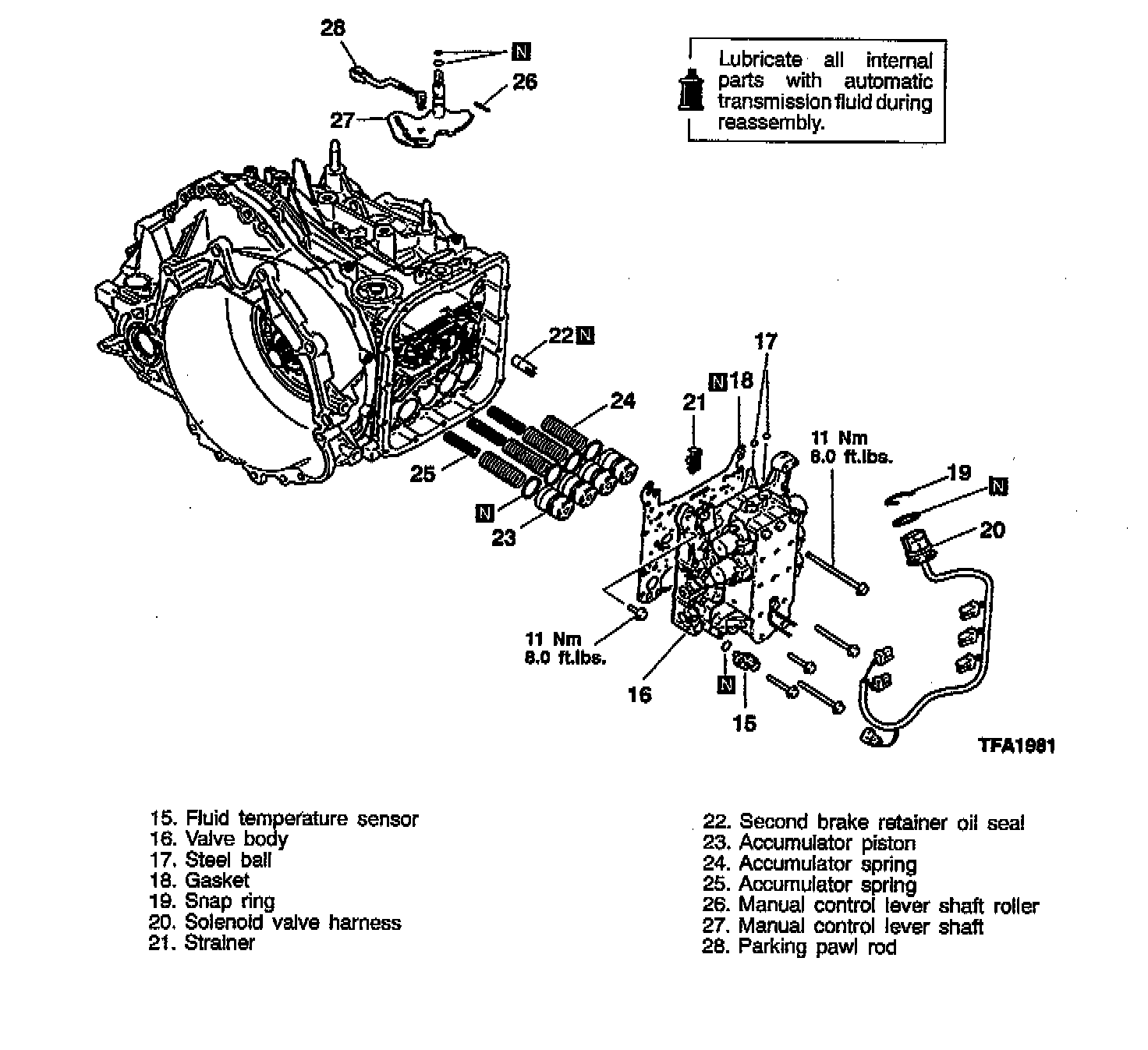

Valve Body




Torque Converter Housing

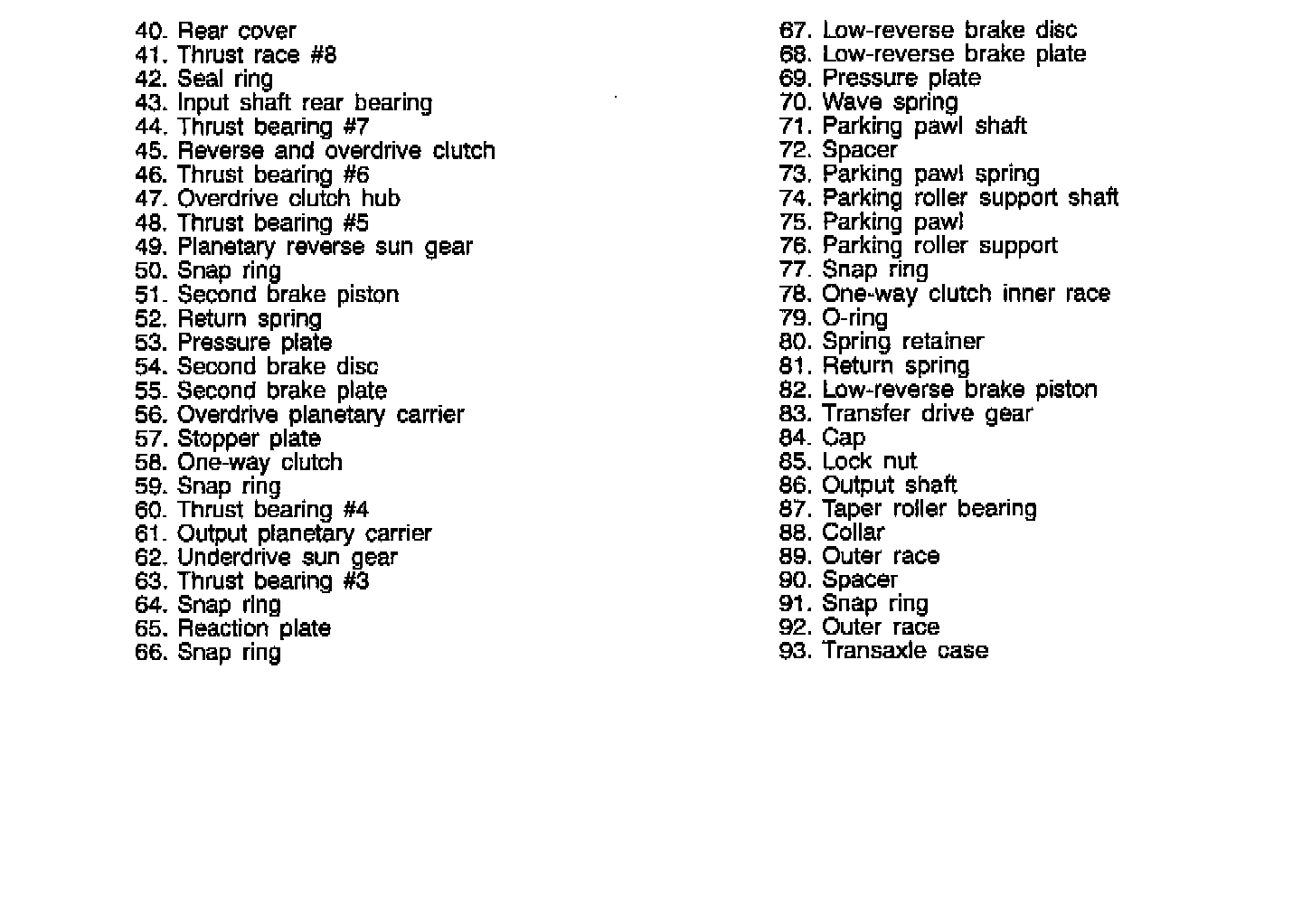

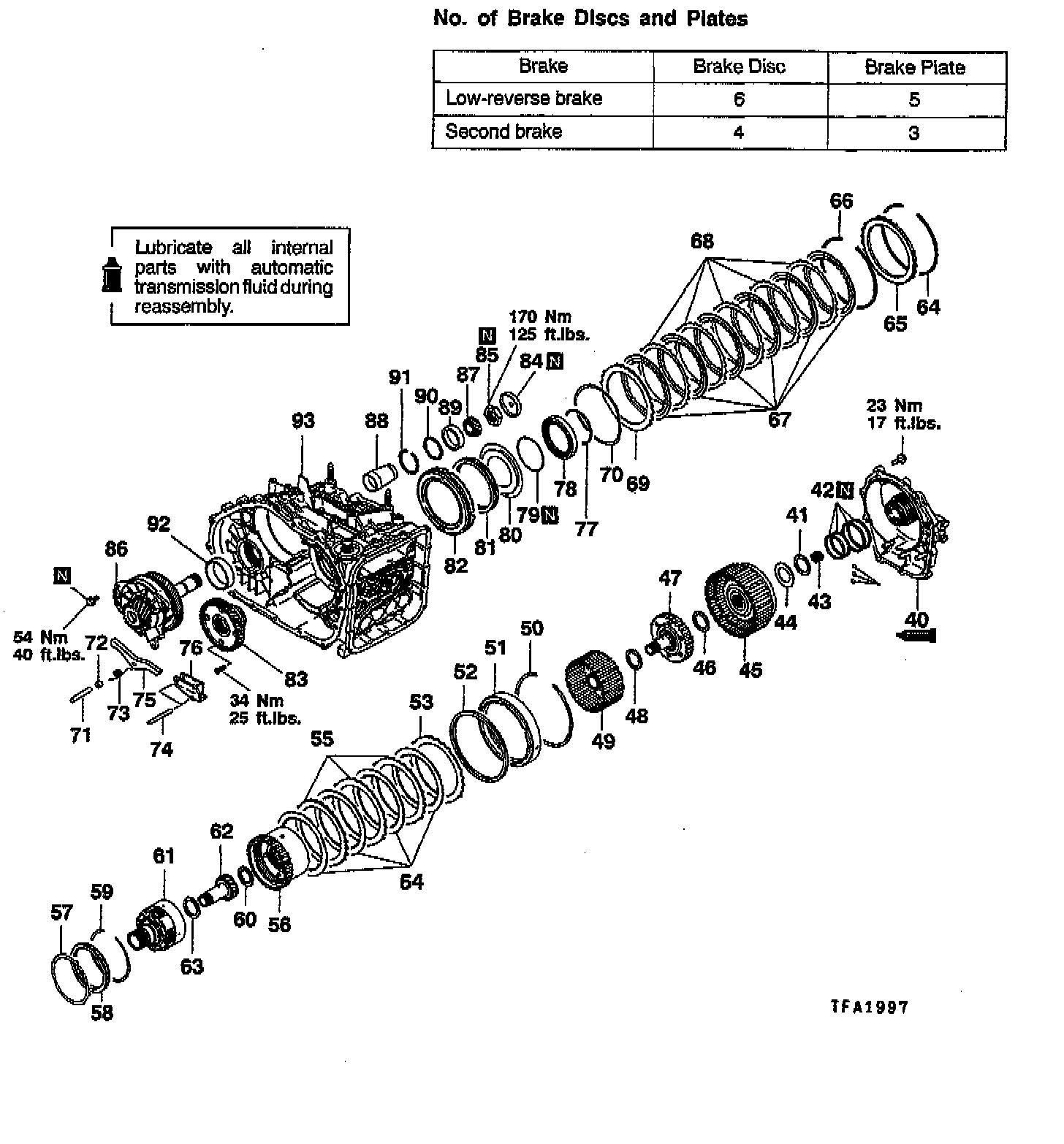

Discs and Plates
