Control Unit

Control Unit Locations Overall View:

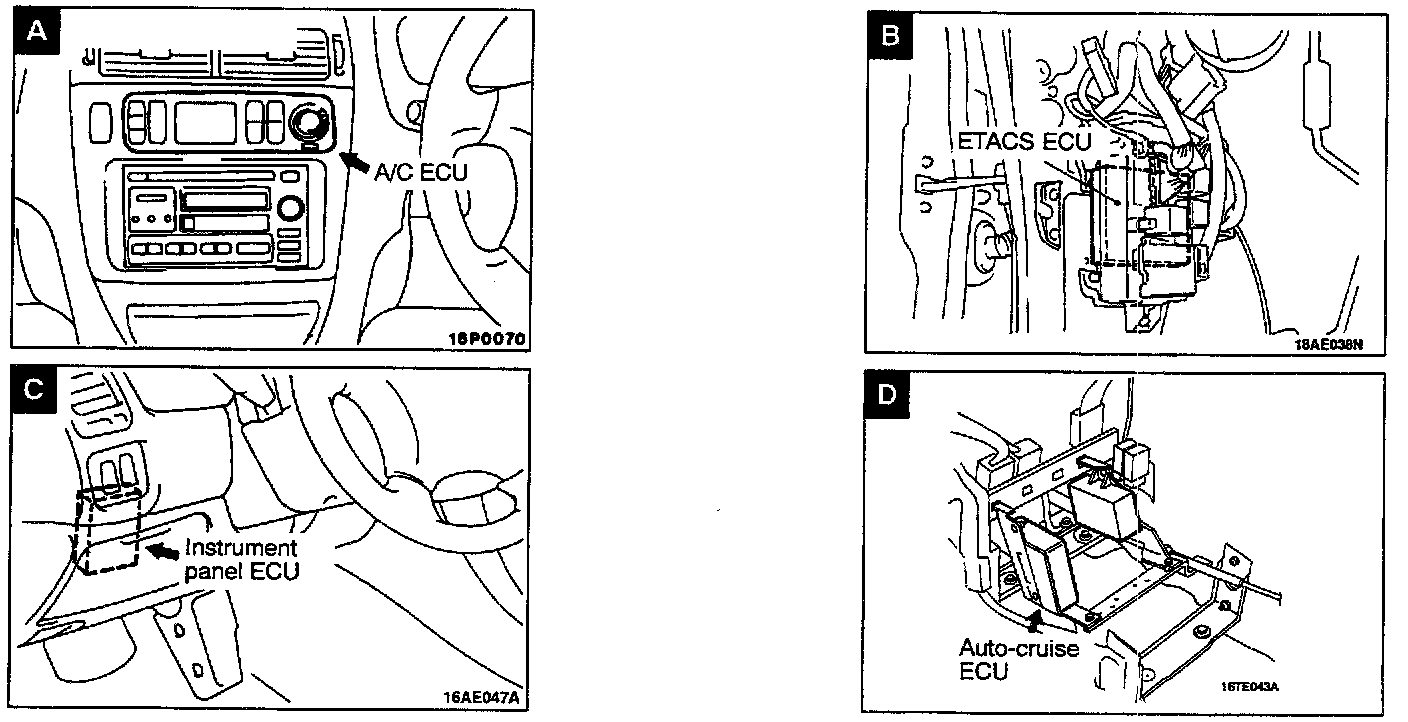

Control Unit Location Views A - D:

Control Unit Location Views E - J:

Component View
ABS ECU K
A/C ECU A
A/C belt lock ECU F
Assist ECU F
Auto cruise ECU D
Engine control module (ECM) E
ETACS ECU B
Front door module (LH) G
Instrument panel ECU C
Keyless entry receiver I
Memory power seat ECU J
SRS ECU E
Sunroof ECU H
Transaxle control module (TCM) E
