Electrical Diagrams

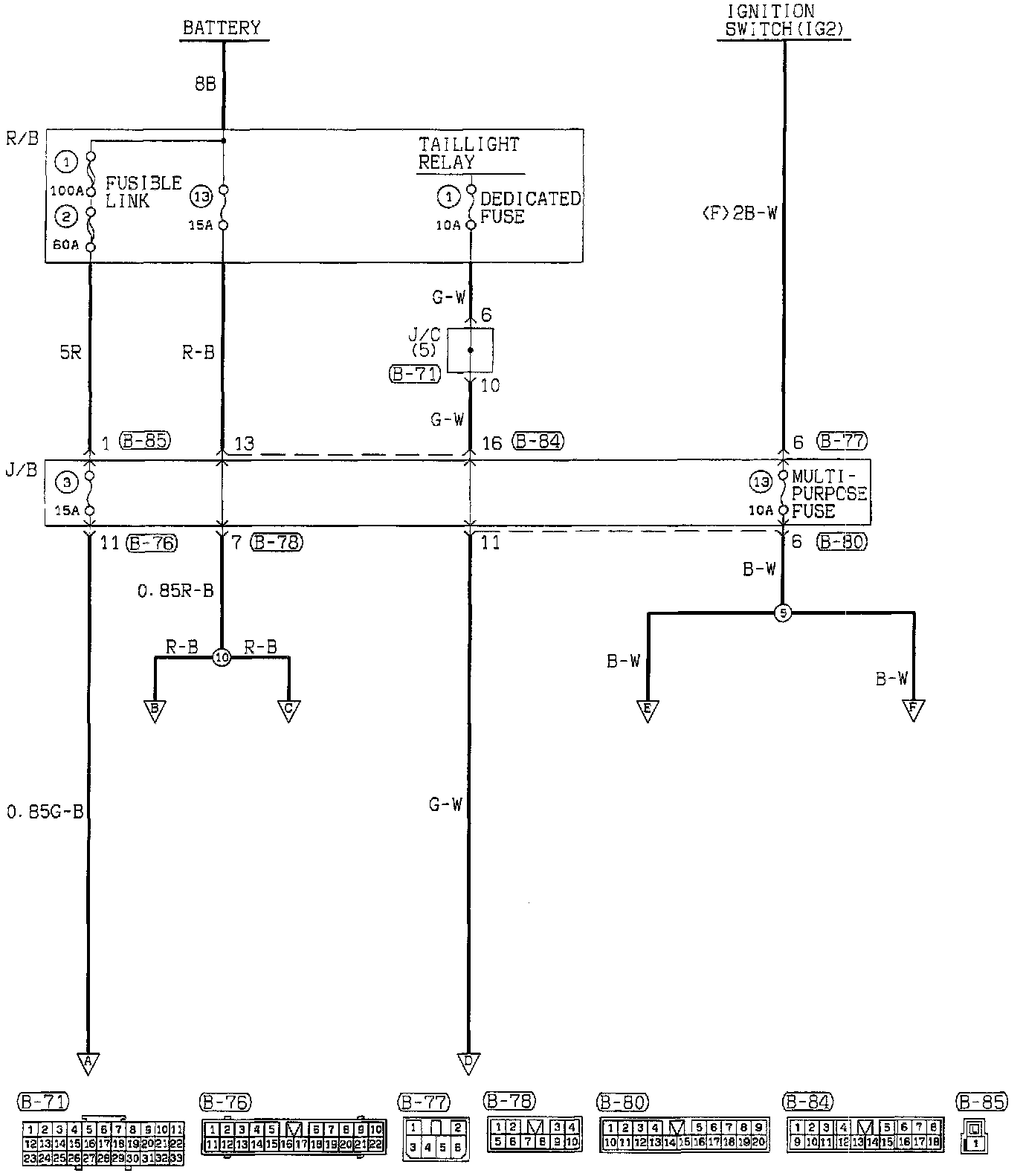

Auto-Cruise Control (Part 1 Of 5):

J/B
R/B

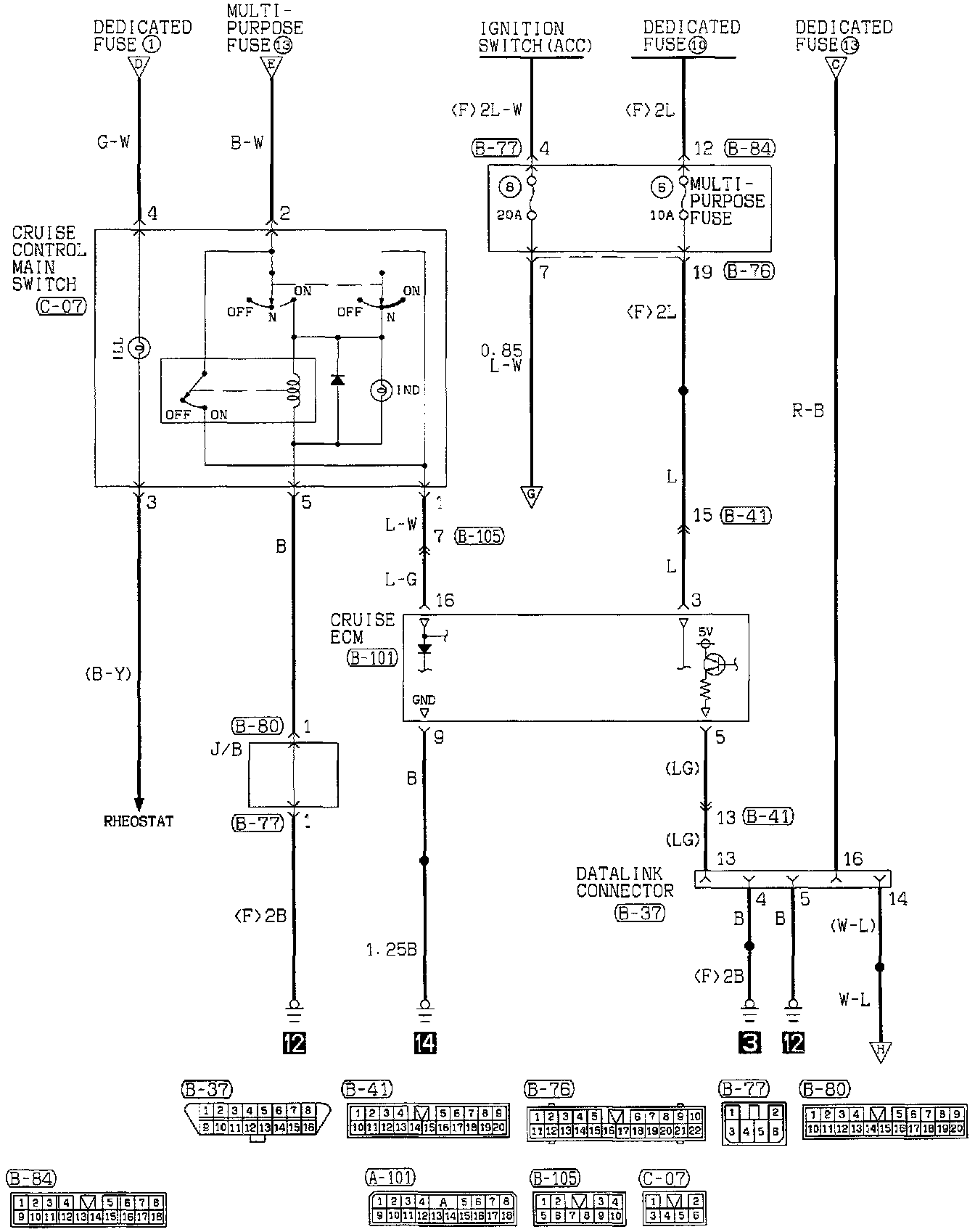

Auto-Cruise Control (Part 2 Of 5):

Cruise Control Main Switch
Cruise ECM
Datalink Connector
J/B
Multi-Purpose Fuse

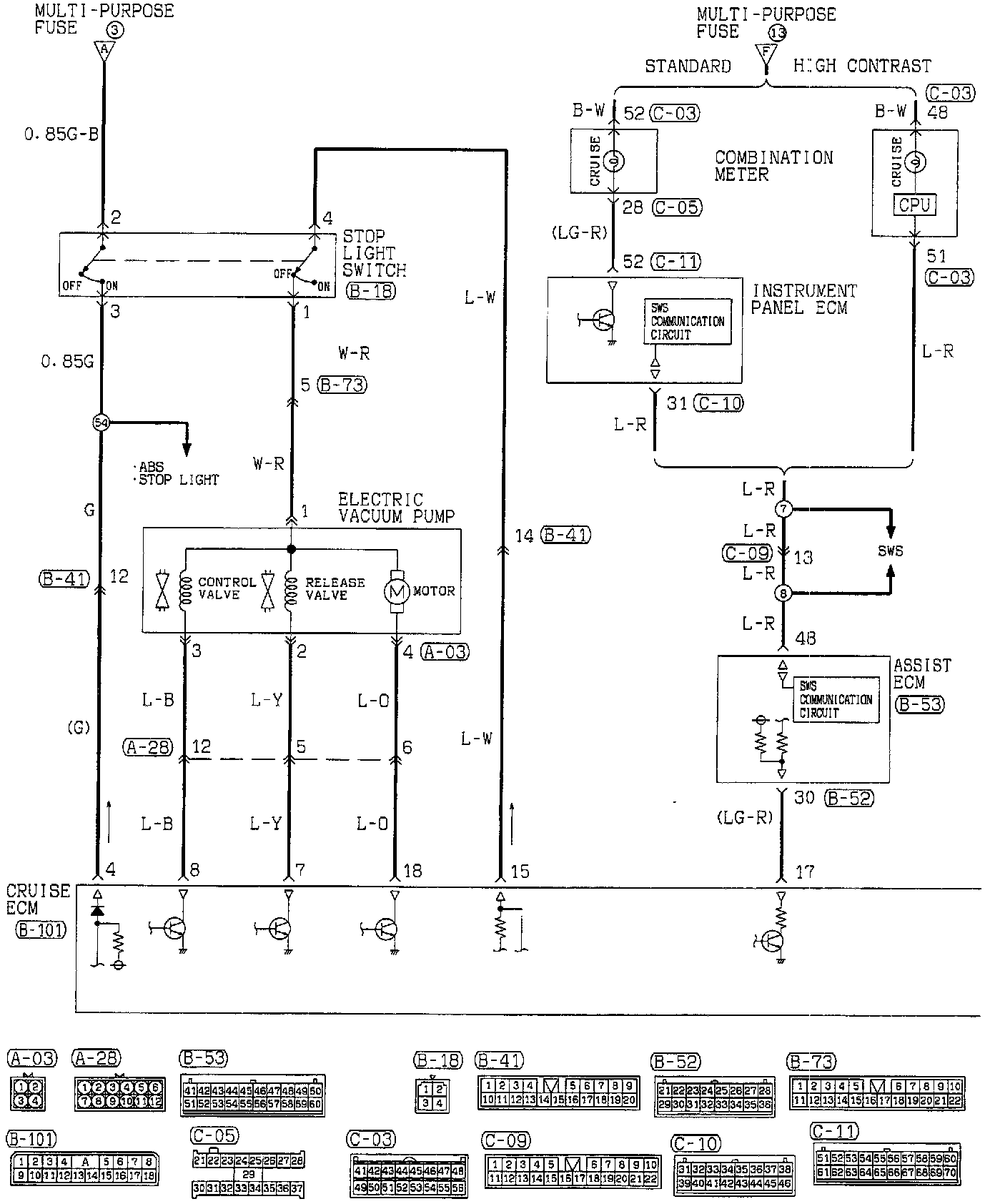

Auto-Cruise Control (Part 3 Of 5):

Assist ECM
Combination Meter (High Contrast & Standard)
Cruise ECM
Electric Vacuum Pump
Instrument Panel ECM
Stop Light Switch

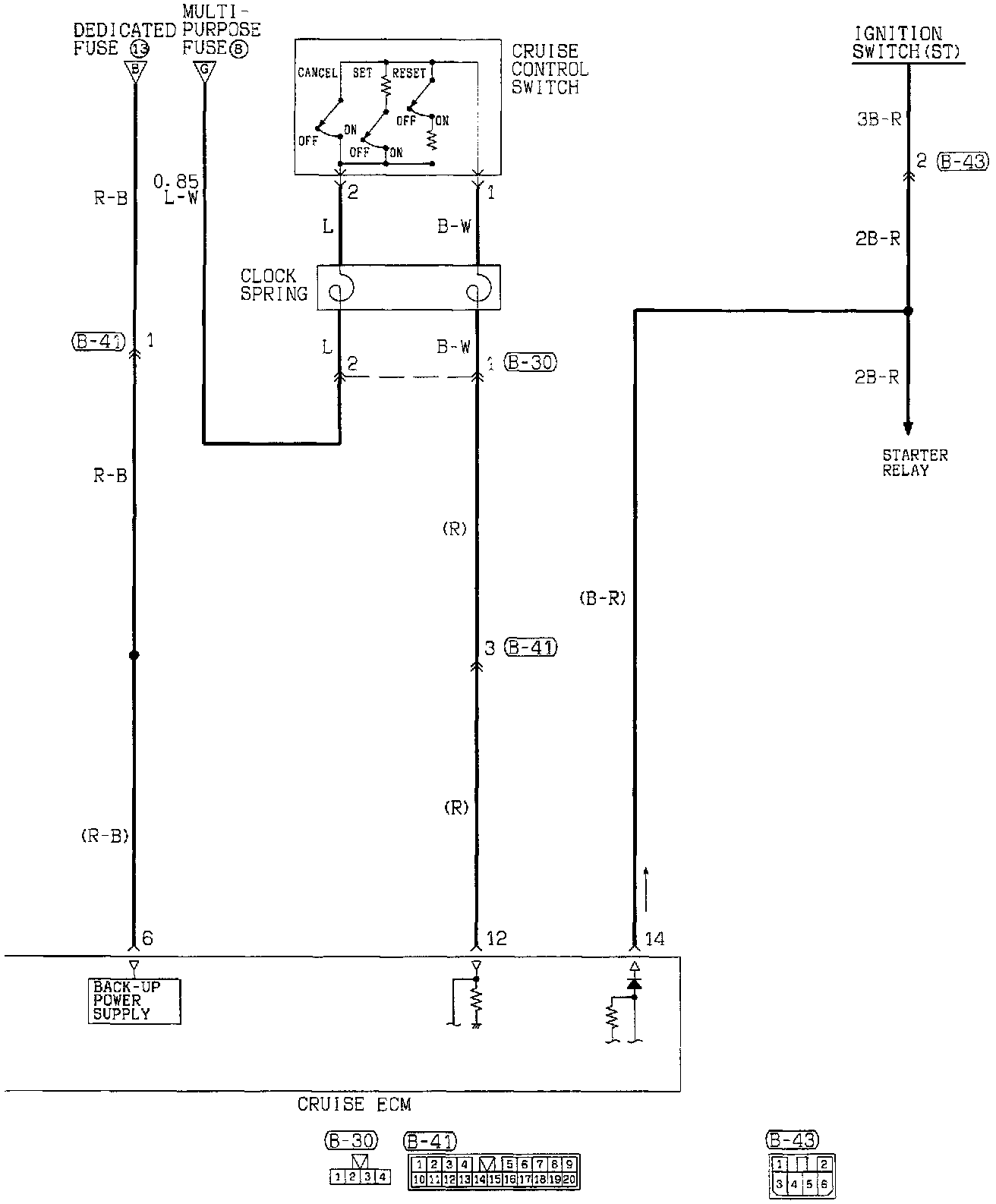

Auto-Cruise Control (Part 4 Of 5):

Cruise Control Switch
Cruise ECM
- Back-Up Power Supply
Clock Spring

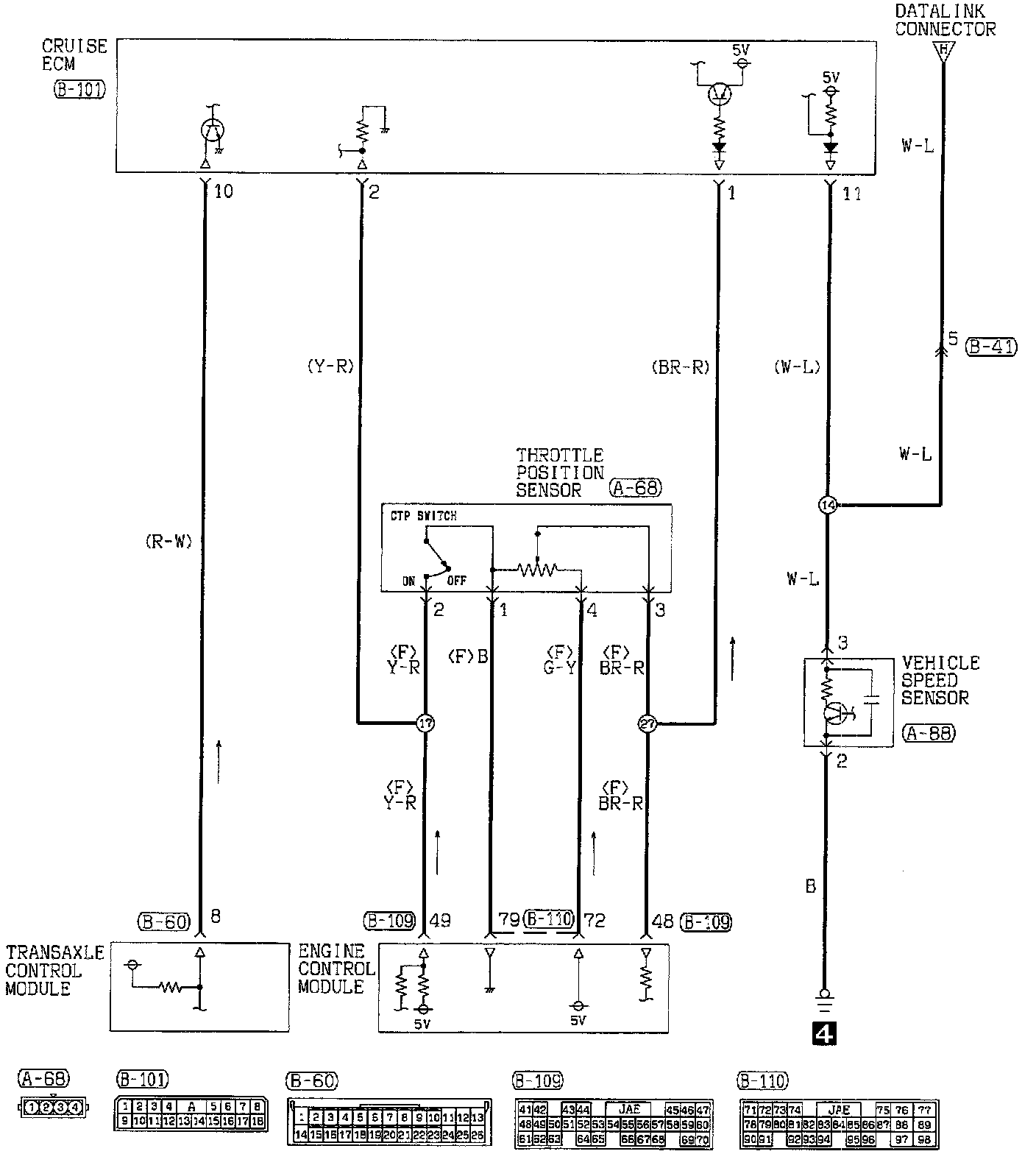

Auto-Cruise Control (Part 5 Of 5):

Cruise ECM
Engine Control Module
Transaxle Control Module
Throttle Position Sensor
