Brake Pedal Assy: Service and Repair

REMOVAL
Pre-removal Operation:
- Instrument panel lower cover removal.
- Steering column assembly removal.

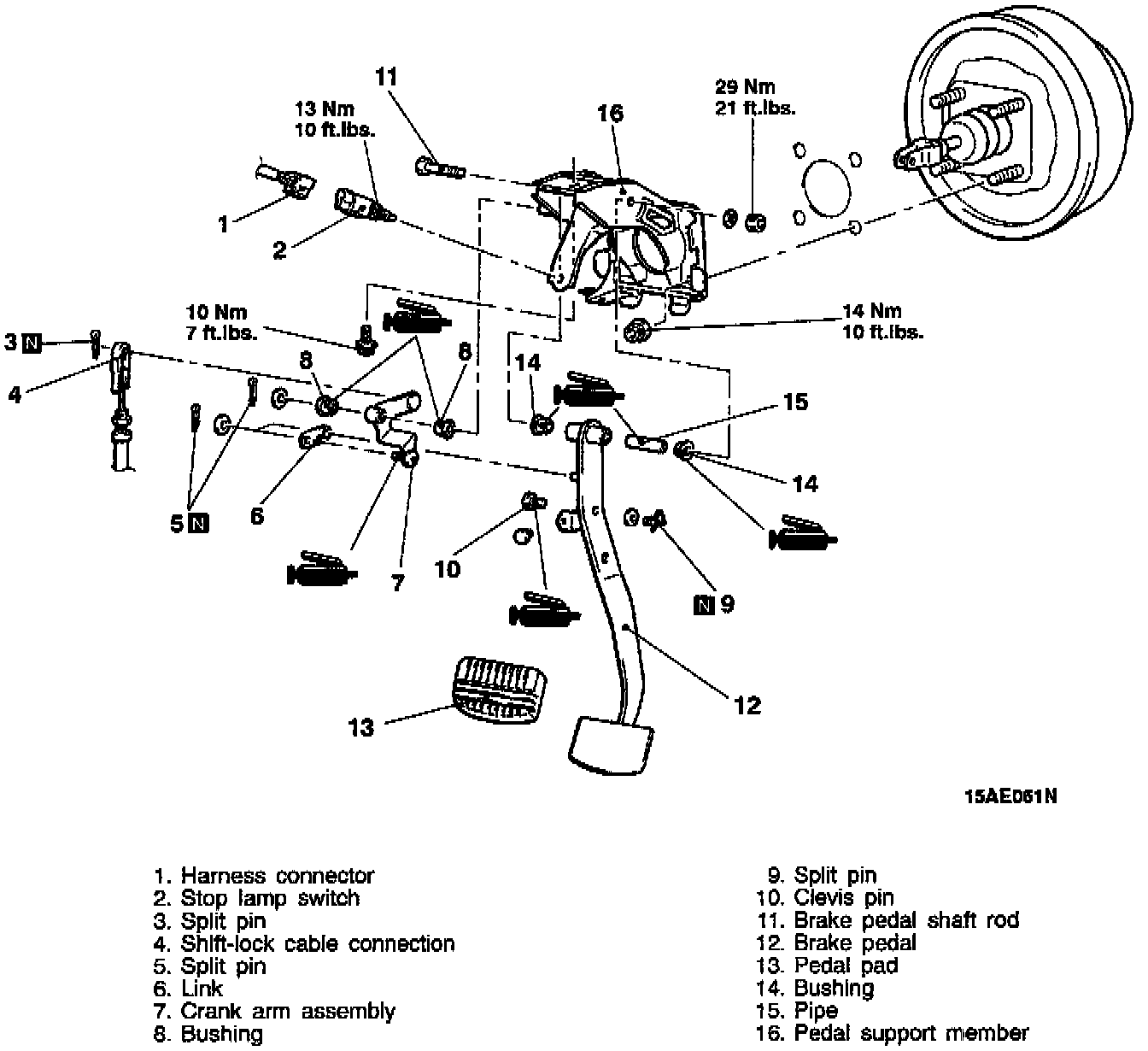

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation:
- Adjust the brake pedal.
- Adjust the shift-lock cable.
- Fit the steering column assembly.
- Fit the lower cover of the instrument panel.
