Power Seat Control Module: Testing and Inspection

MEMORY POWER SEAT ECU TERMINAL VOLTAGE CHECK

Connector Terminal No. 2 - 43:

PART 1 OF 3

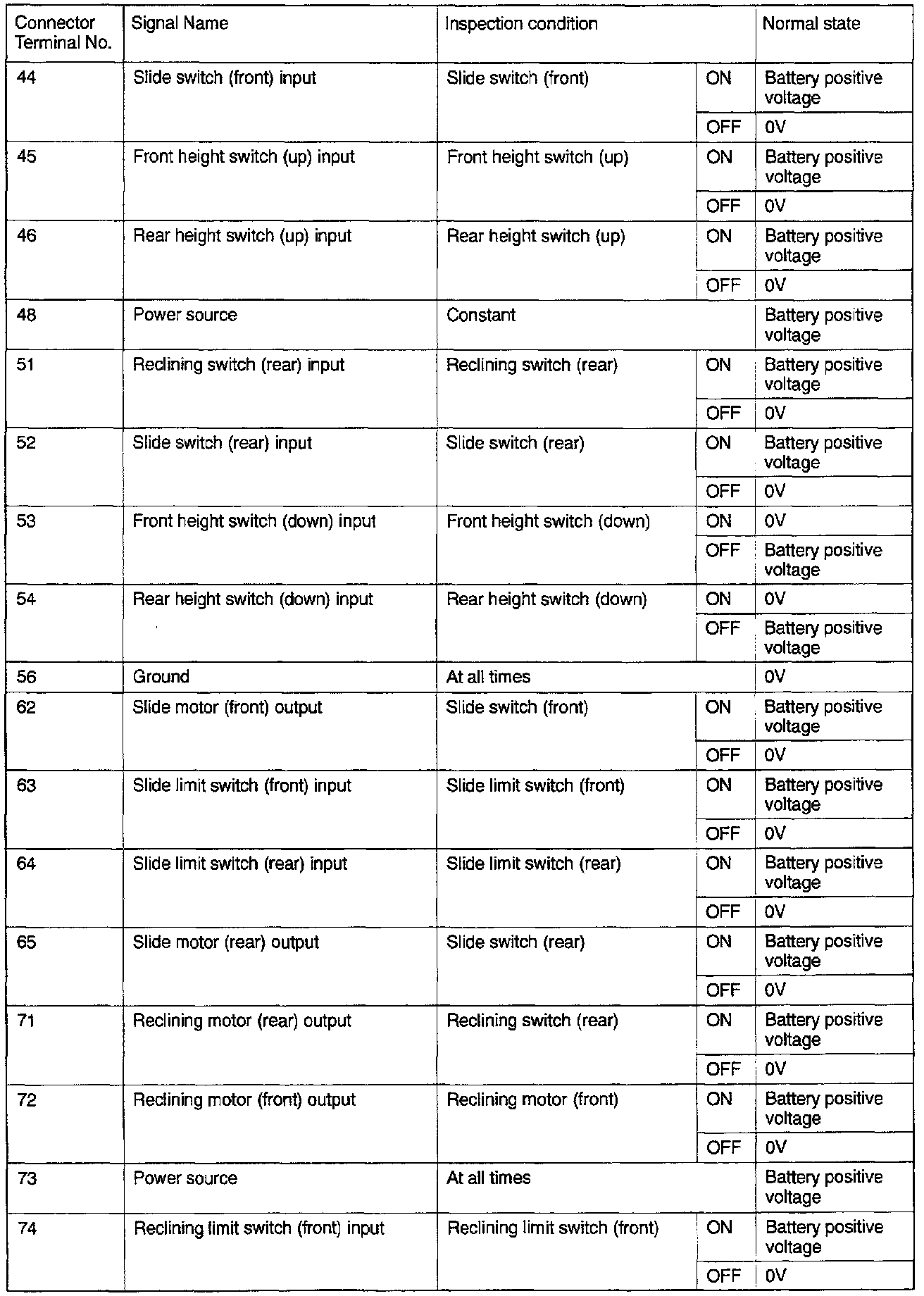

Connector Terminal No. 44 - 74:

PART 2 OF 3

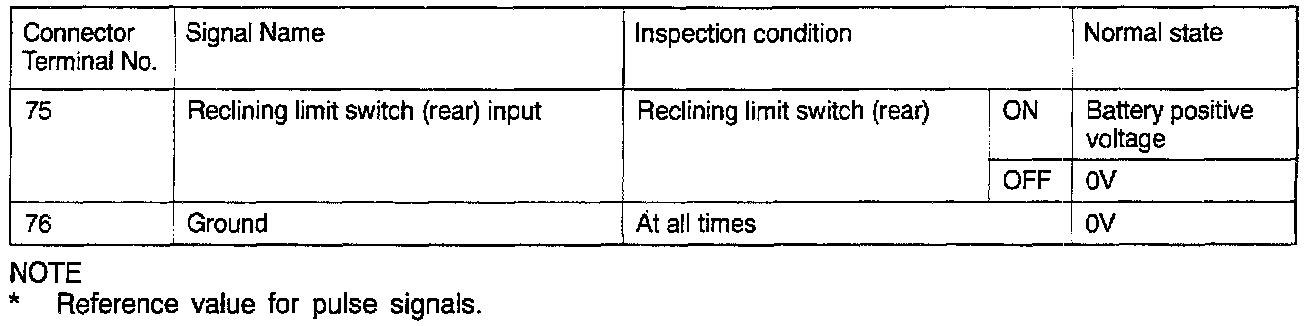

Connector Terminal No. 75 - 76:

PART 3 OF 3

NOTE: For Memory Power Seat ECU code related diagnosis refer to: Computers and Control Systems, Information Bus, Testing and Inspection.
