Console: Service and Repair

FLOOR CONSOLE REMOVAL AND INSTALLATION

CAUTION: When removing and installing the floor console assembly, do not let it bump against the SRS-ECU or other components.

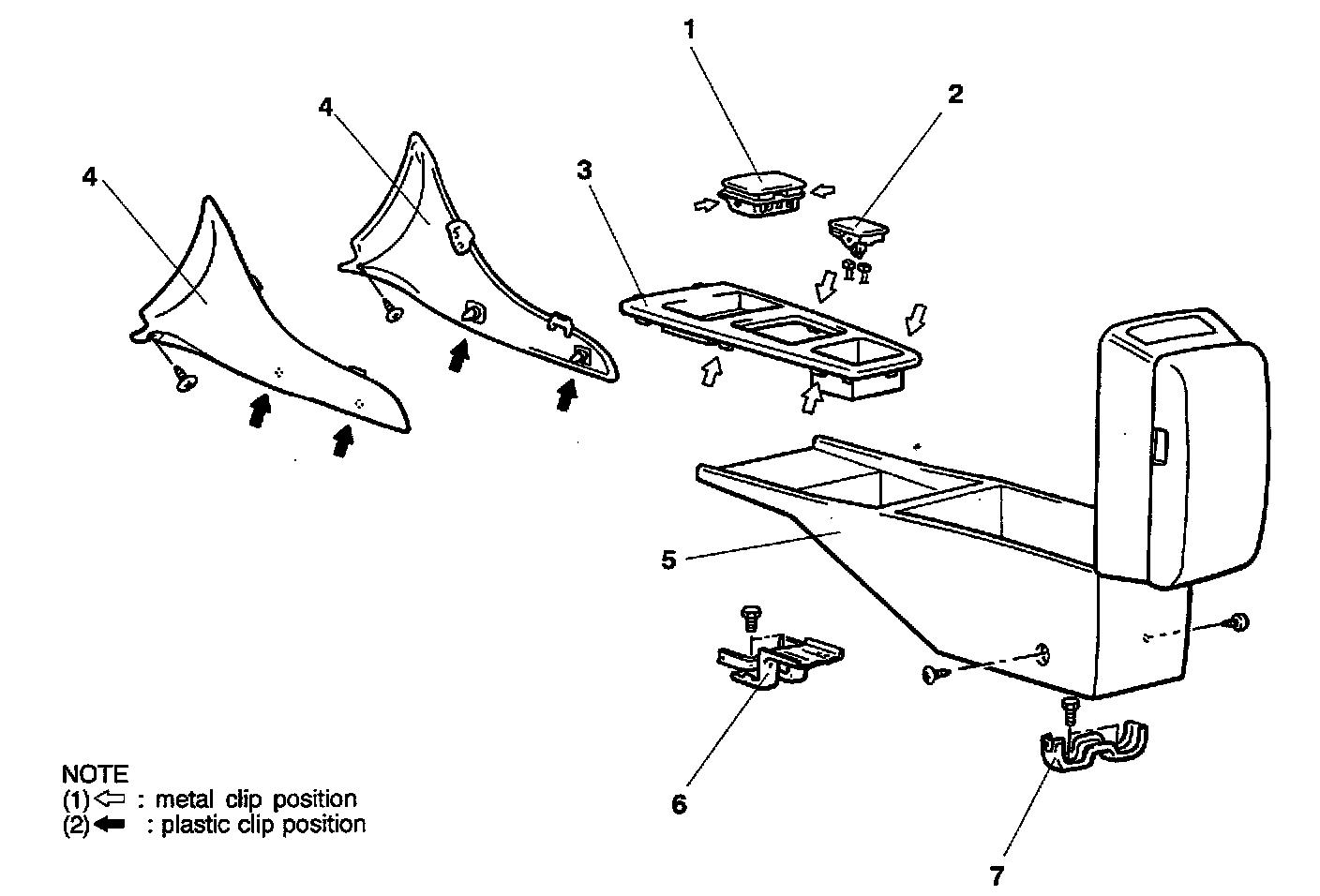

Removal steps

1 Cup holder assembly

2 Coin box assembly

3 Floor console panel

4 Console side cover assembly

5 Floor console box

6 Console bracket A

7 Console bracket C
