Body Control Module: Testing and Inspection

BCM TERMINAL VOLTAGE CHECK

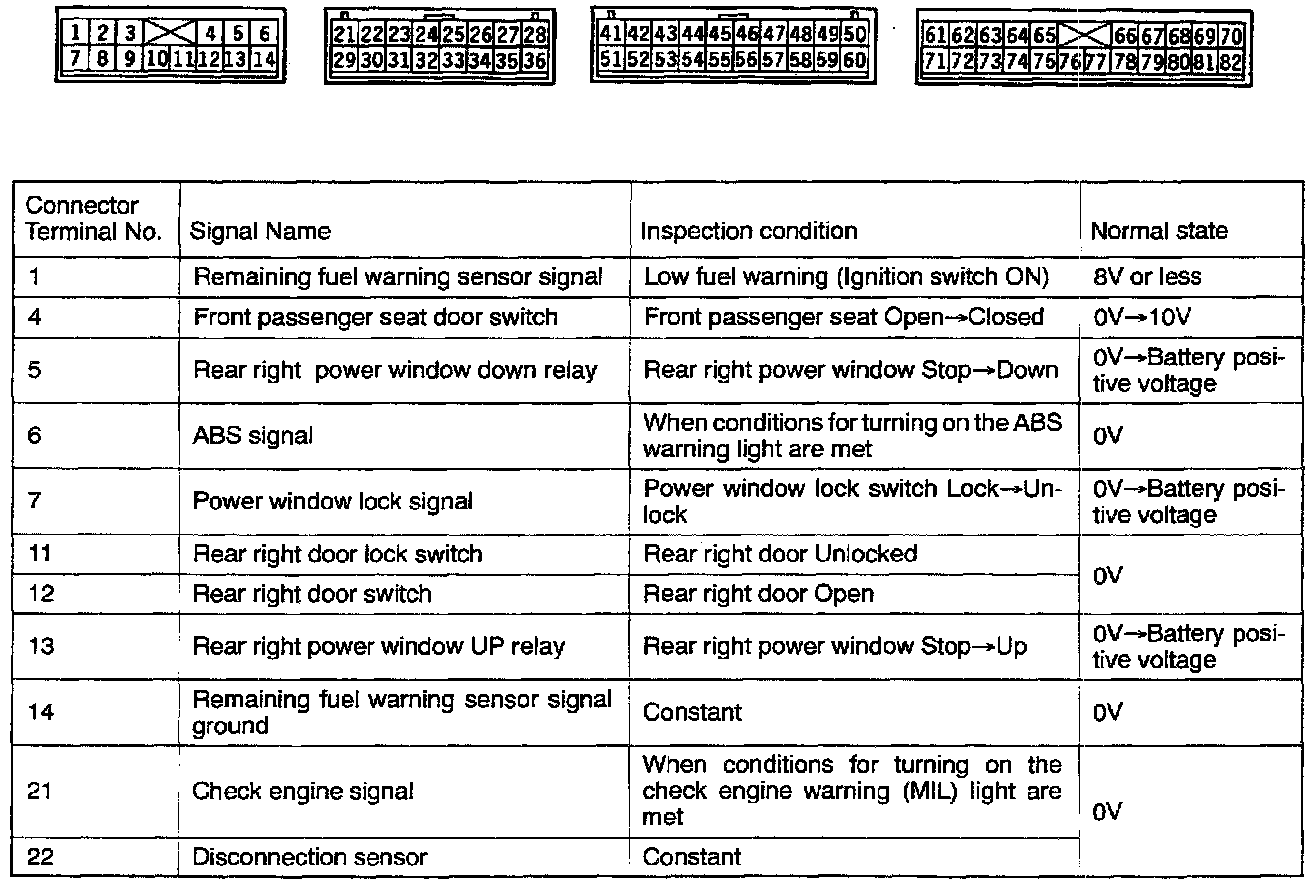

Connector Terminal No 1 - 22:




PART 1 OF 3

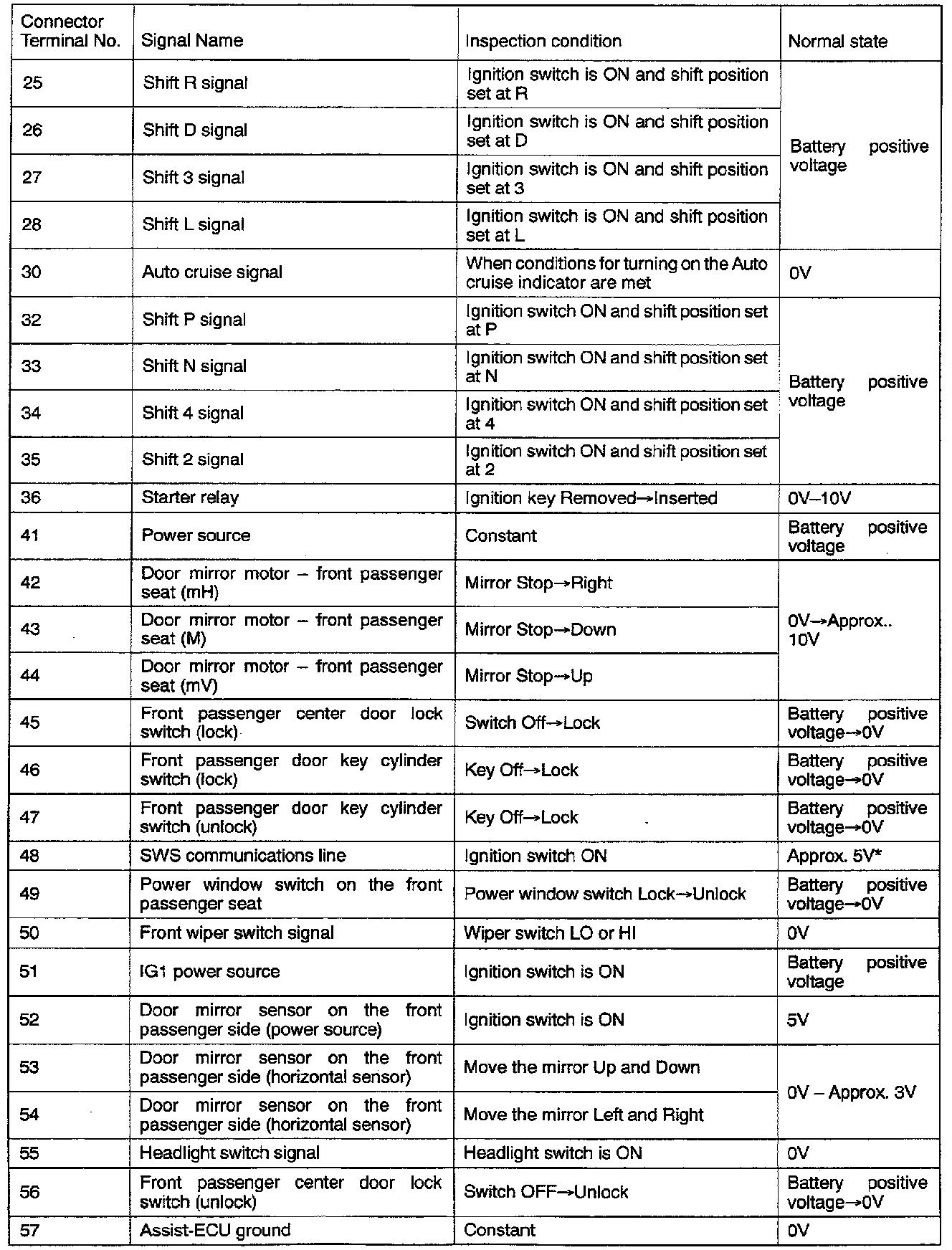

Connector Terminal No 25 - 57:




PART 2 OF 3

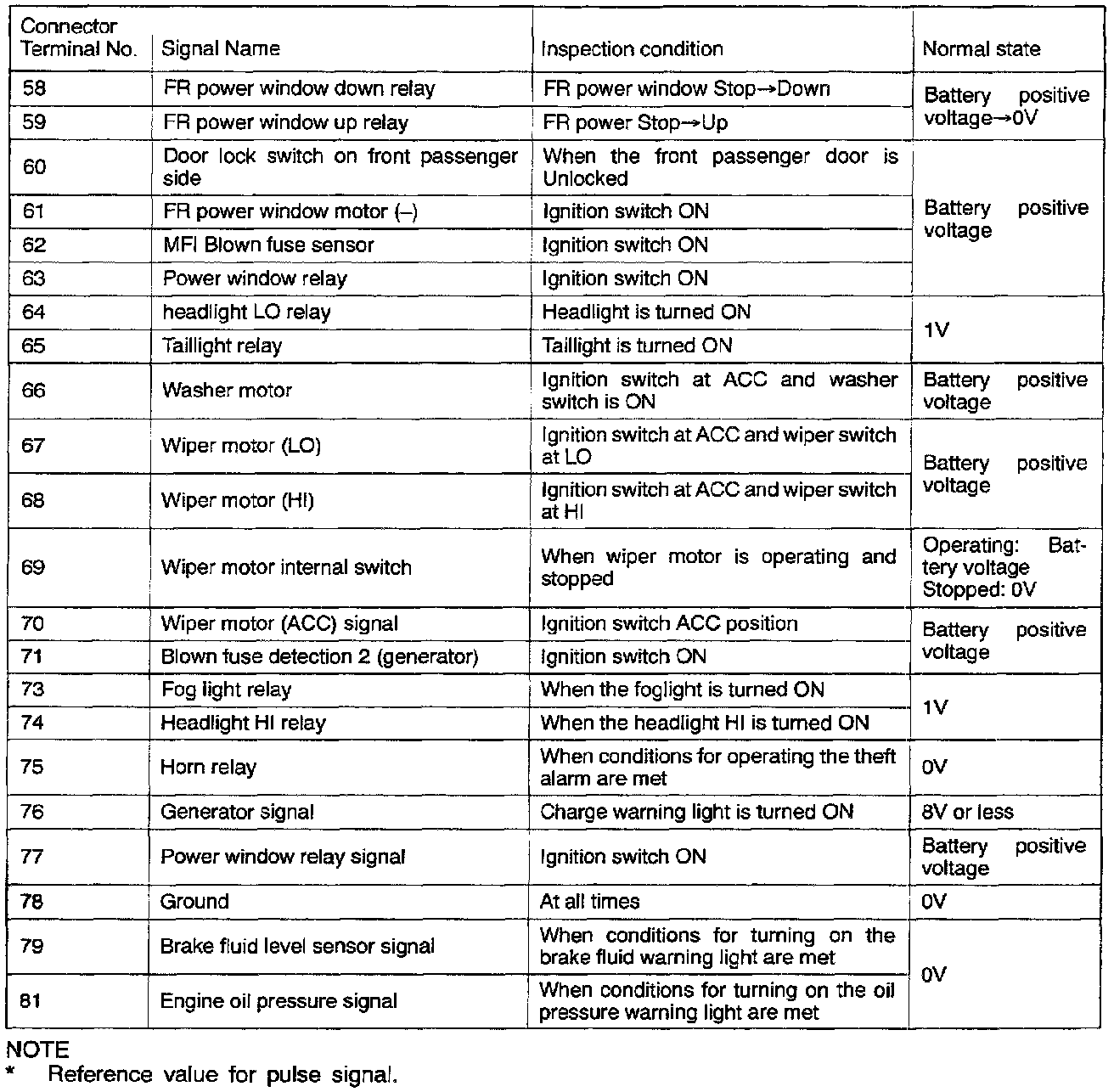

Connector Terminal No 58 - 81:




PART 3 OF 3
