Differential Assembly

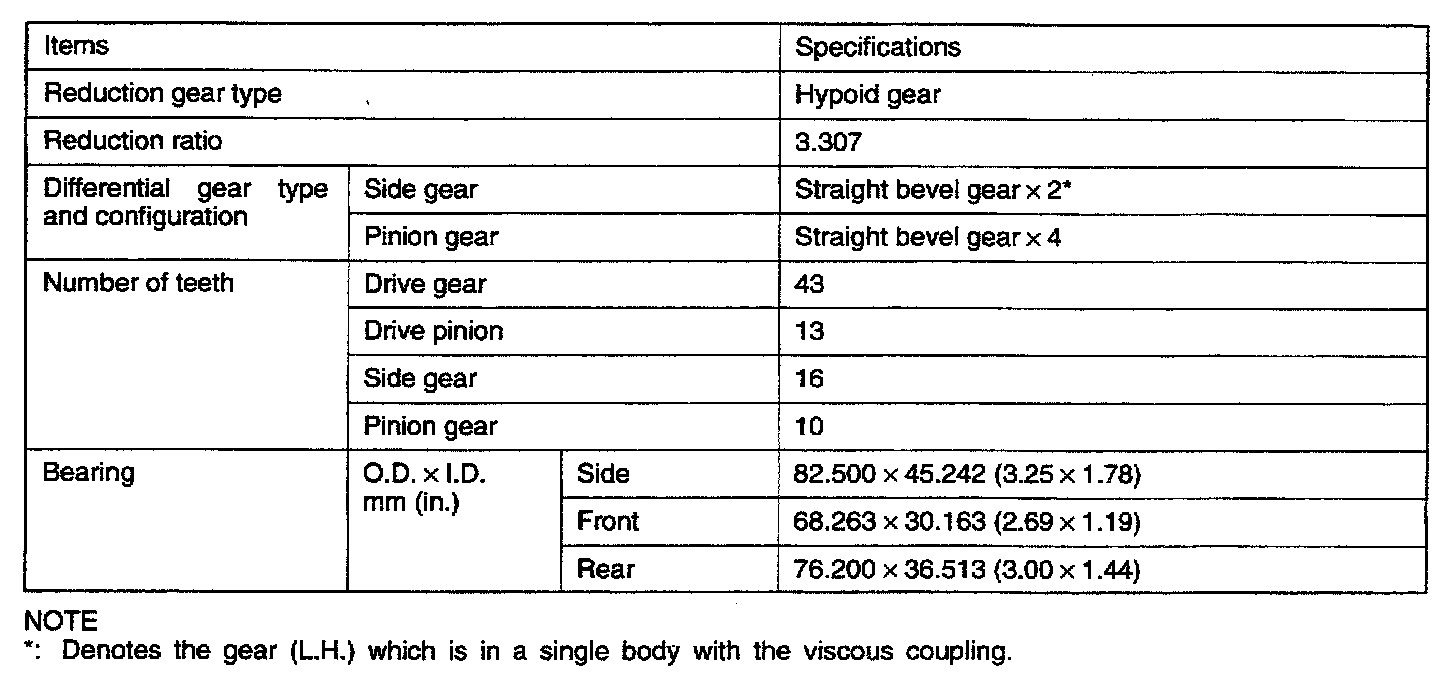

W6MG1 6-spd M/T, Rear Axle (AWD) Differential Dimensions:





W6MG1 6-spd M/T, Rear Axle (AWD) Differential Standards & Limits:
