Transmission Mount: Service and Repair

REMOVAL
Pre-removal Operation:
- Raise and Suspend the Transaxle to the Extent Force is not Applied to the Transaxle Mount.
- Air Cleaner Removal.

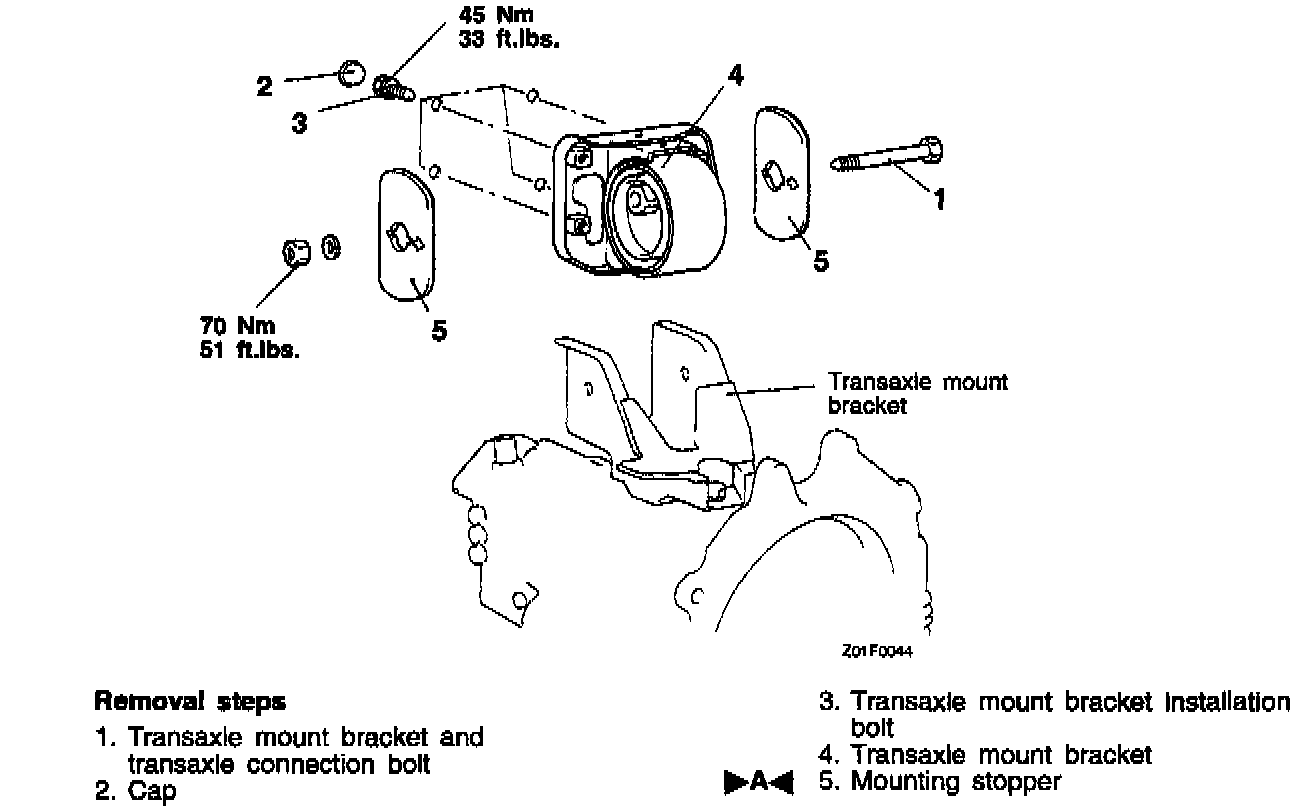

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point

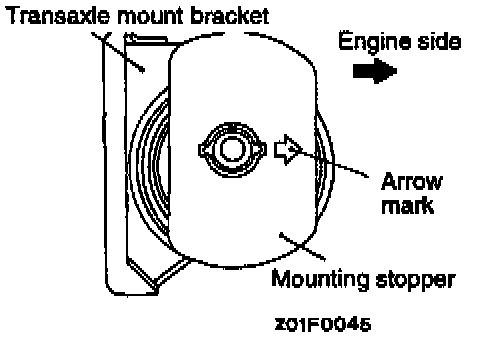

>A< Mounting Stopper Installation.
Attach the transaxle mounting bracket so that the arrow mark on the mounting stopper is in the direction as shown in the illustration.

Post-installation Operation:
- Lower the Transaxle.
- Air Cleaner Installation.

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
