Shift Linkage: Service and Repair

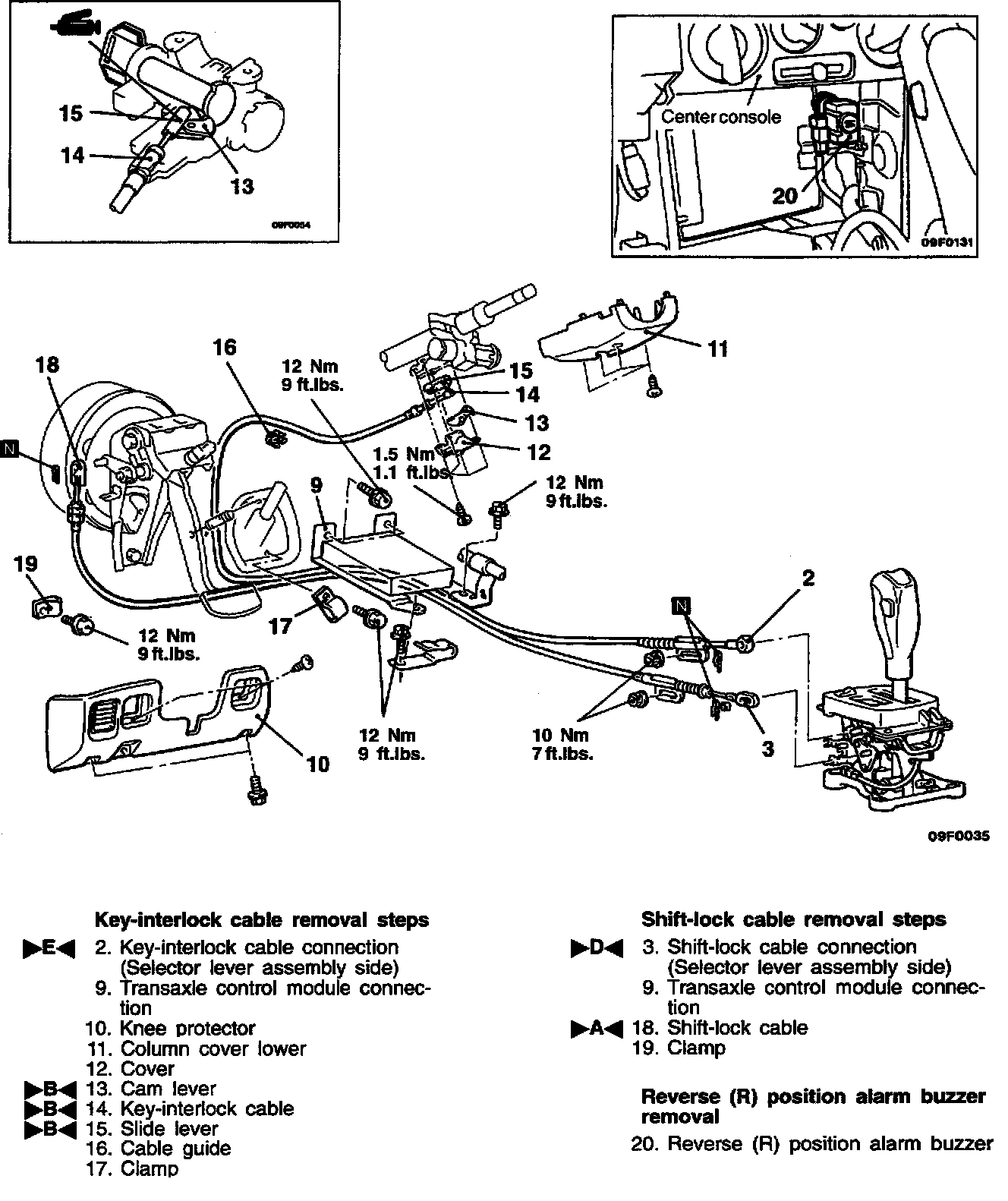

REMOVAL AND INSTALLATION
Installation Service Points

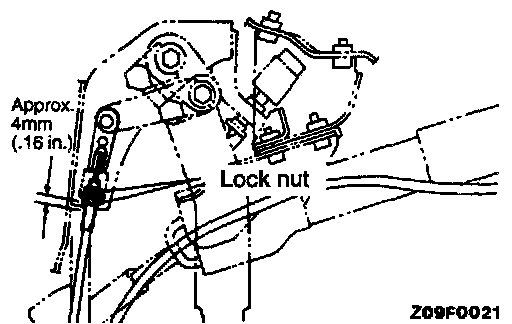

>A< Shift Lock Cable Connection (Brake Pedal Side)





Connect the shift lock cable so that its, threads measure about 4 mm (0.16 inch).

CAUTION: Do not change the routing of shift lock cable to the selector lever assembly.

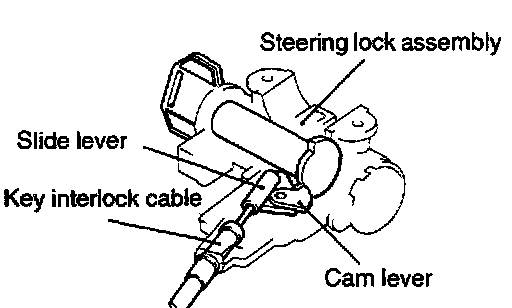

>B< Slide Lever / Key Interlock Cable (Steering Lock Assembly Side)/Cam Lever Installation





1. Place the ignition key at the ""LOCK" position or keep it removed.
2. Install the slide lever, key interlock cable, and cam lever to the steering lock assembly as shown.

CAUTION: Do not change the routing of key interlock cable to the selector lever assembly.

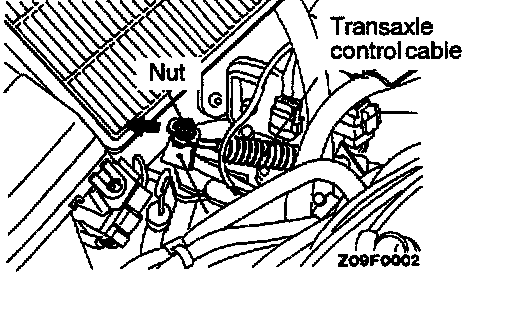

>C< Transaxle Control Cable Connection (Selector Lever Assembly Side)





Connect the transaxle control cable, then make the following adjustment.
1. Place the selector lever in "N" position.
2. Loosen the nut and slightly pull the transaxle control cable in the direction of the arrow; then, tighten the nut.

>D< Shift Lock Cable Connection (Selector Lever Assembly Side)





1. Place the selector lever in "P" position.
2. Disconnect the key interlock cable from the selector lever assembly side.

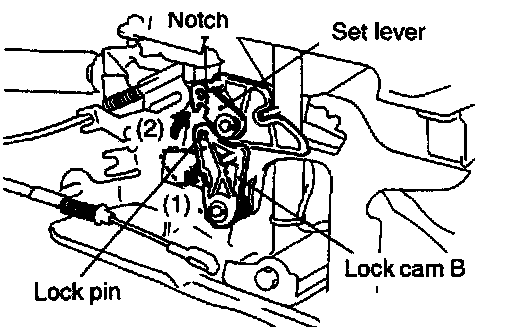

3. Turn the lock cam B counterclockwise (arrow 1) to move the set lever upward (arrow 2).
4. Fit the cutout in set lever to the lock pin of lock cam B.





5. Connect the shift lock cable to lock cam B and temporarily tighten the nut. At this time, install the spring and washer, which have been fitted to the shift lock cable, as shown.
6. Pressing the set lever to prevent lock cam B from moving, lightly pull the shift lock cable to take up slack and tighten the nut to secure the shift lock cable into position.

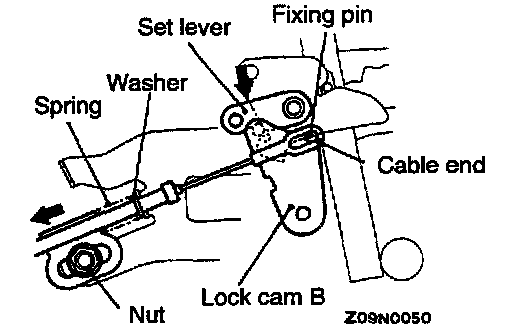

NOTE: Make sure that the shift lock cable end is in contact with the fixing pin of lock cam B as shown, then install the washer and snap pin.

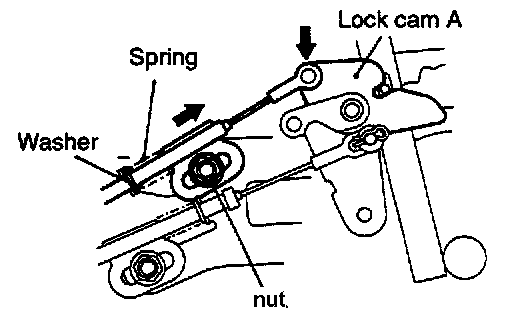

7. Connect the key interlock cable to lock cam A and temporarily tighten the nut. At this time, install the spring and washer, which have been fitted to the key interlock cable, as shown.
8. Lightly pressing lock cam A in the direction of arrow, lightly push the key interlock cable to take up slack and tighten the nut to secure the key interlock cable in position.

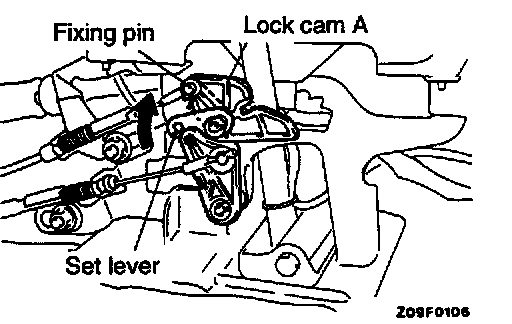

9. Turn the set lever and fit it onto the fixing pin on lock cam A, then install the snap pin.
10. After the key interlock cable has been connected, check the shift lock and key interlock mechanism.

>E< Key Interlock Cable Connection (Selector Lever Assembly Side)





1. Place the selector lever into "P" position.

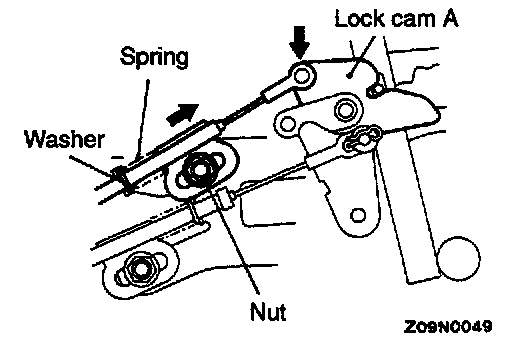

2. Connect the key interlock cable to lock cam A and temporarily tighten the nut. At this time, install the spring and washer, which have been fitted to the key interlock cable, as shown.
3. Lightly pressing lock cam A in the direction of arrow, lightly push the key interlock cable to take up slack and tighten the nut to secure the key interlock cable in position.

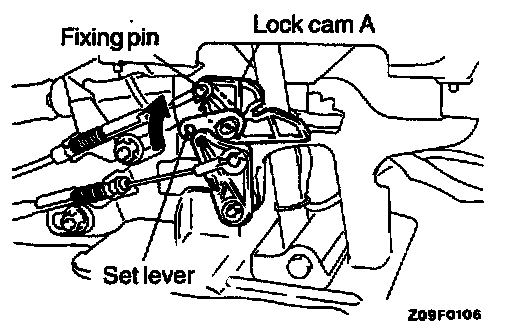

4. Turn the set lever and fit it onto the fixing pin on lock cam A, then install the snap pin.
5. After the key interlock cable has been connected, check the key interlock mechanism.

INSPECTION





- Check the control cable for function and for damage.
- Check the outer cable (key interlock cable, shift lock cable) for damage and spring for breakage and tension.
- Check the inner cable (key interlock cable, shift lock cable) for extension.

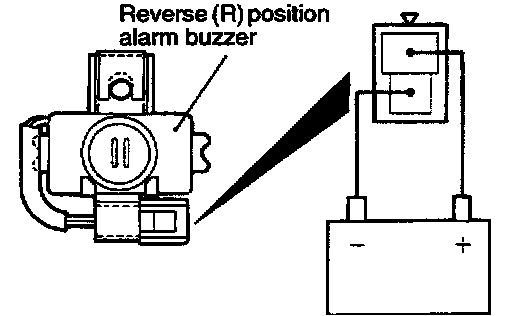

Reverse (R) Position Alarm Buzzer Check
Check that the buzzer sounds when battery voltage is applied across terminals.
