Automatic Transmission/Transaxle: Description and Operation

GENERAL INFORMATION





The automatic transaxle comes in one model, namely, RA33. The transaxle is essentially the same as the conventional model.

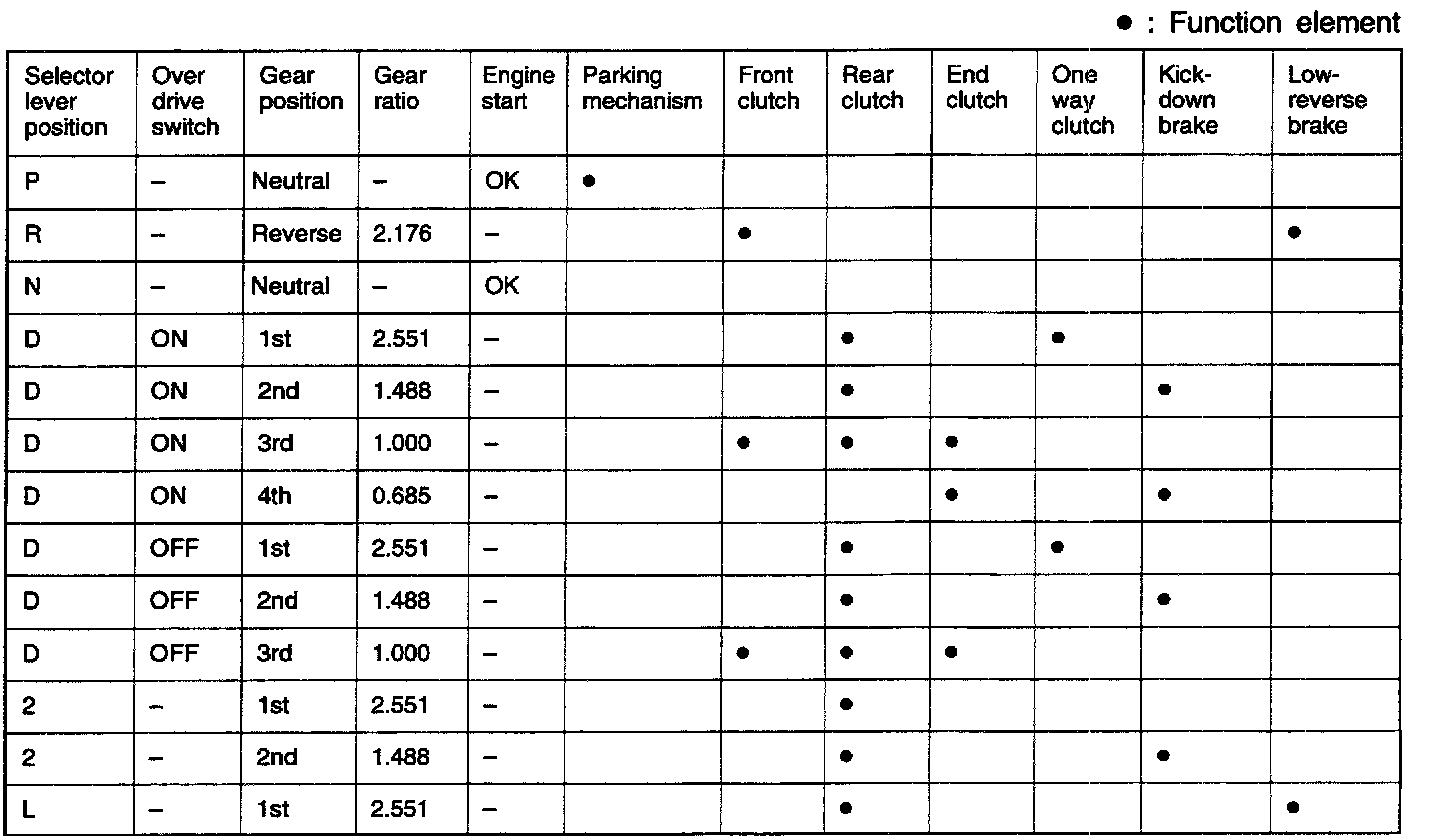

Function Element Table

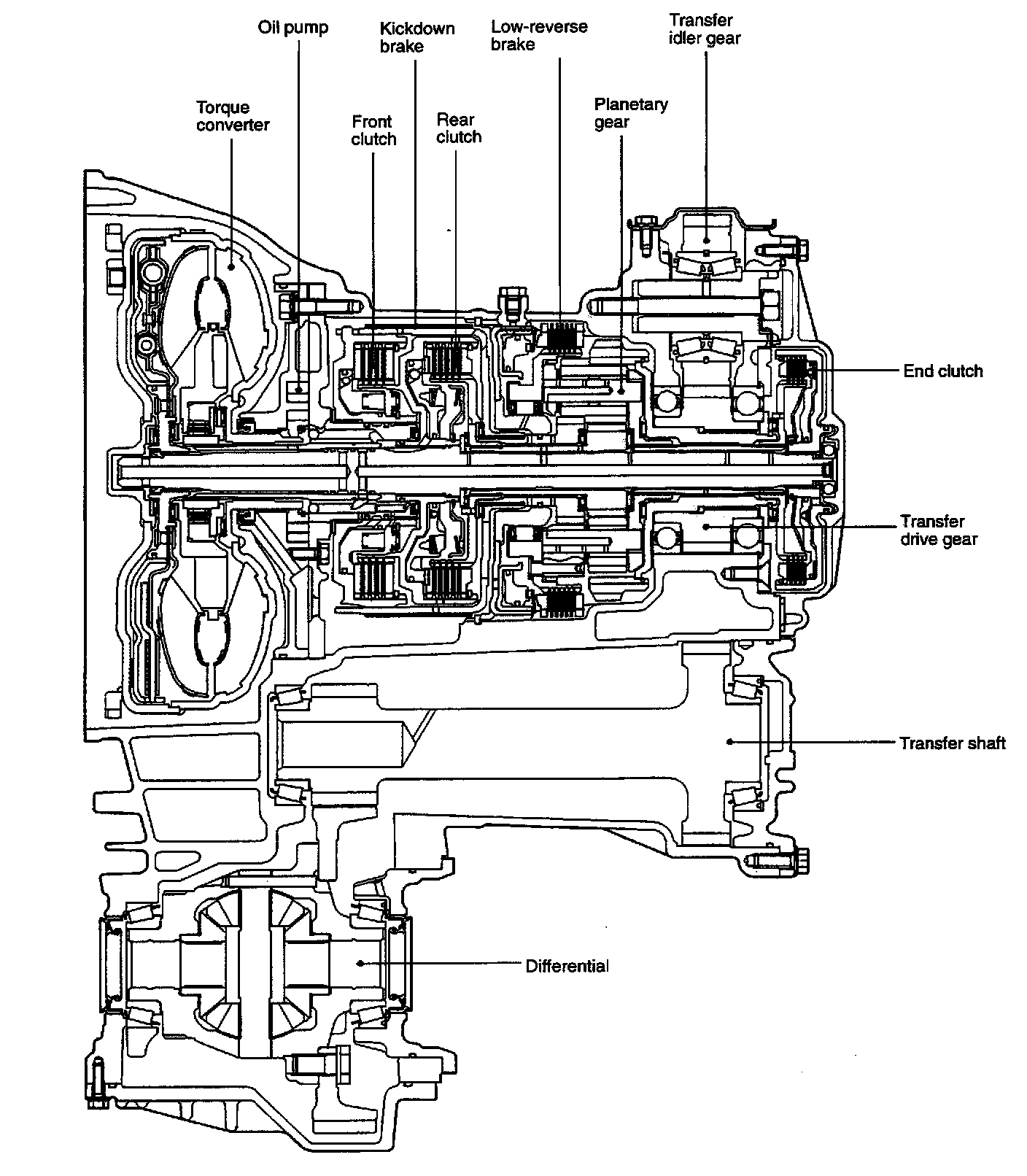

Sectional View
