Overhaul

DISASSEMBLY

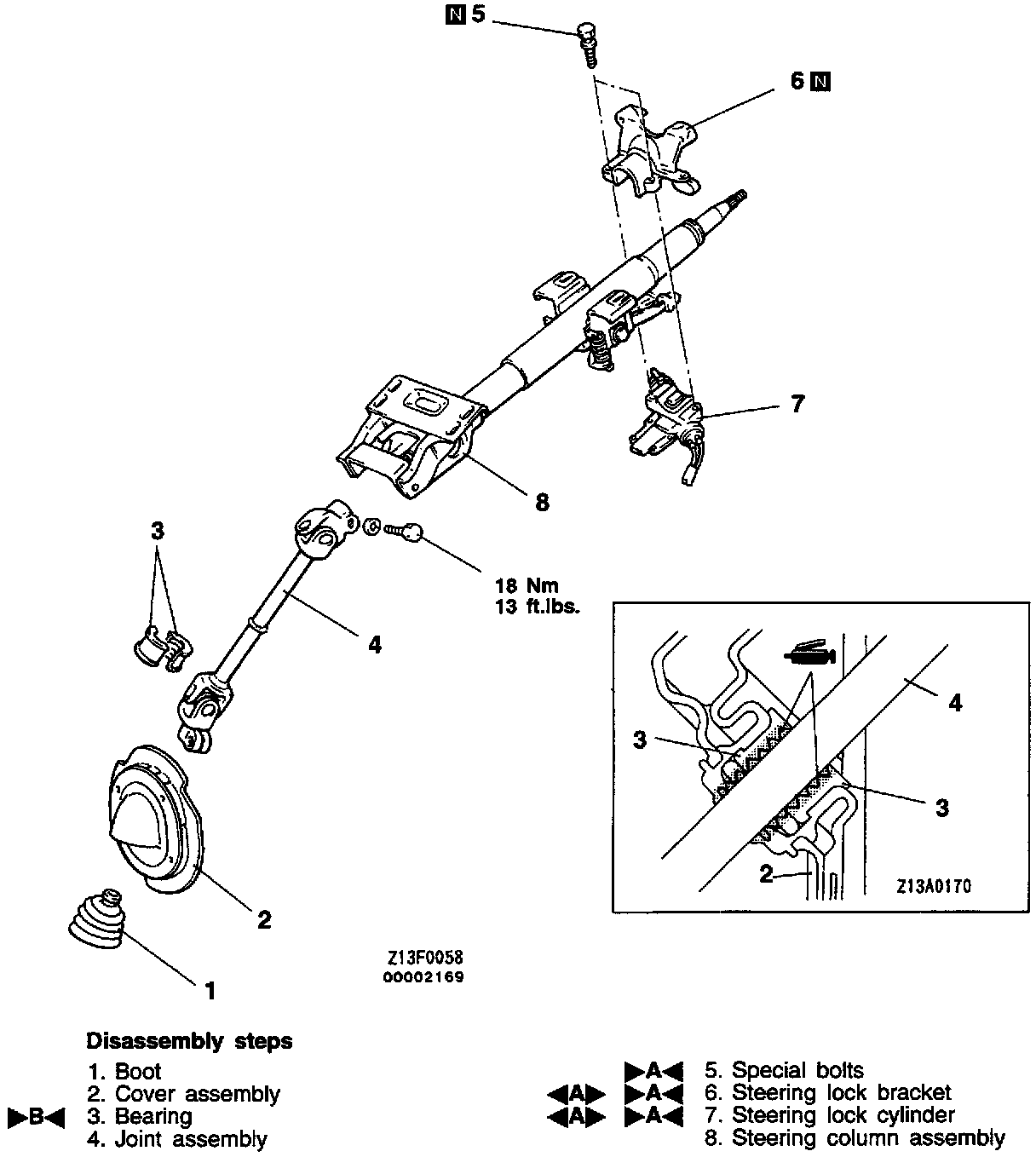

Follow disassembly steps outlined in illustration.

Disassembly Service Points





[A] Steering Lock Bracket/Steering Lock Cylinder Removal (6 & 7)
If it is necessary to remove the steering lock cylinder, use a hacksaw to cut the special bolts at the steering lock bracket side.

REASSEMBLY
Assembly in reverse order as Disassembly.

Reassembly Service Points





]A[ Steering Lock Cylinder/Steering Lock Bracket/Special Bolt Installation (5, 6 & 7)
1. When installing the steering lock and steering lock bracket to the column tube, temporarily install the steering lock in alignment with the column boss.

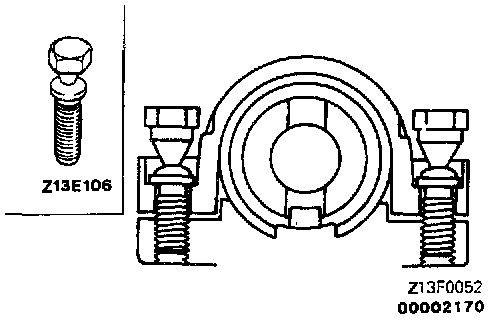

2. After checking that the lock works properly, tighten the special bolts until the head twists off.

CAUTION: The steering lock bracket and bolts must be replaced with new ones when the steering lock is installed.





]B[ Bearing Installation (3)
1. Fill the inside of the bearing with multipurpose grease.
2. Install the bearings to the shaft on the joint assembly.

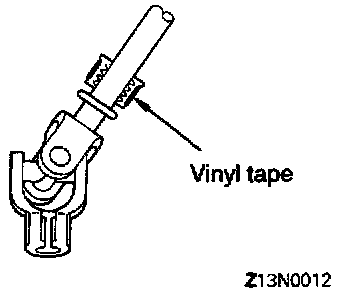

3. Wrap vinyl tape approximately one and one-half times around the concave circumferences of the bearings, and then press fit the bearings into the cover assembly.

INSPECTION
- Check the steering shaft for play and round movement.
- Check the joints for play, damage, or rough movement.
- Check the joint bearing for wear and damage.
- Check the dust shield for damage.
