Home >> Mitsubishi >> 1998 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Output Shaft, A/T >> Thrust Washer Set, Pressure Plate, Snap Rings and Spacers

Thrust Washer Set, Pressure Plate, Snap Rings and Spacers

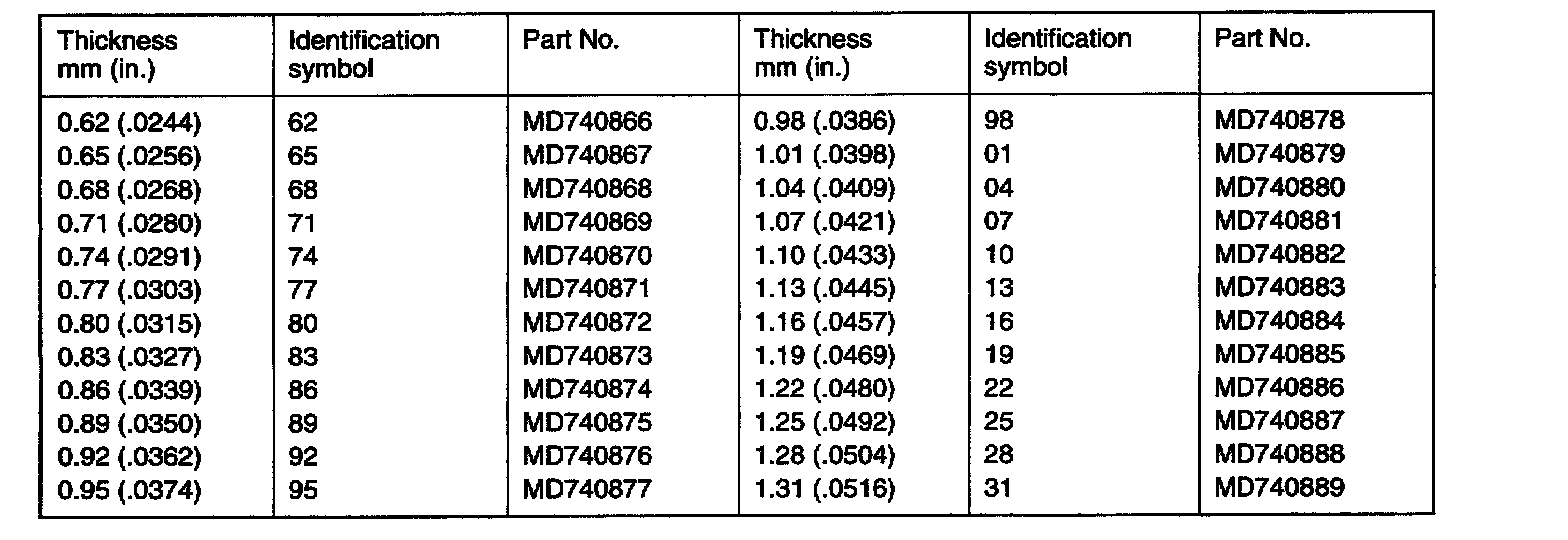

SPACER (FOR ADJUSTMENT OF TRANSFER DRIVEN GEAR PRELOAD)






SNAP RING (FOR ADJUSTMENT OF OUTPUT FLANGE BEARING END PLAY)
