Thrust Washer Set, Pressure Plate, Snap Rings and Spacers





SPACER (FOR ADJUSTMENT OF DIFFERENTIAL CASE PRELOAD)

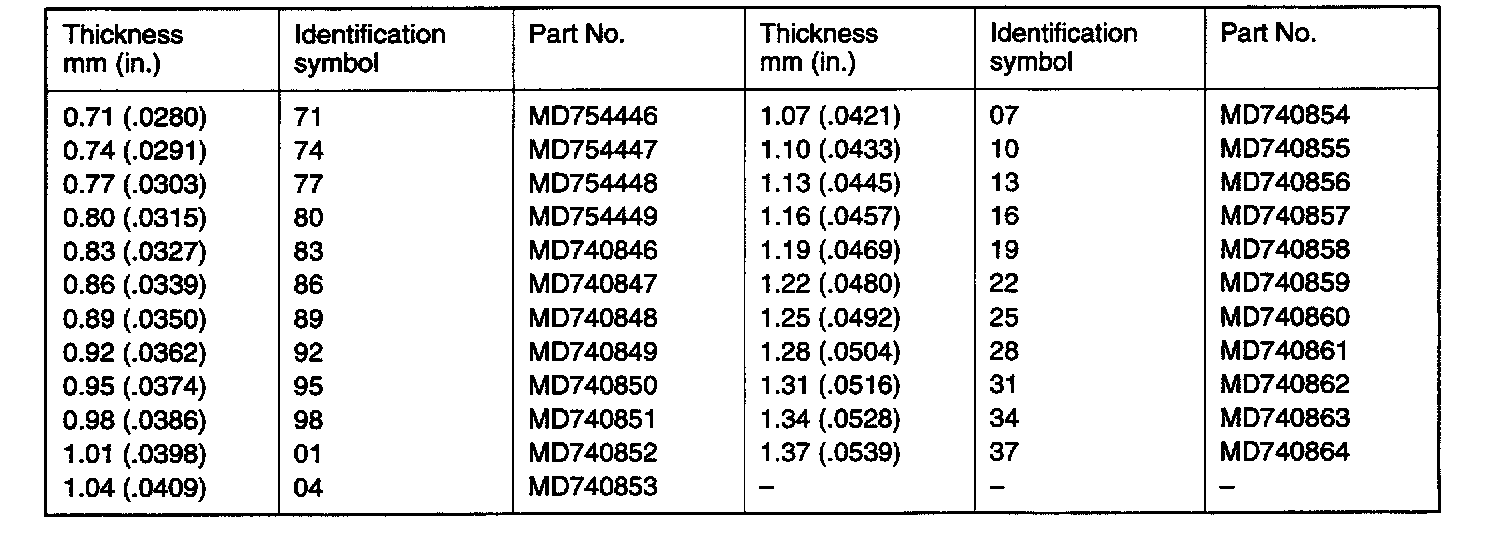

SPACER (FOR ADJUSTMENT OF DIFFERENTIAL GEAR AND PINION BACKLASH)
