Home >> Mitsubishi >> 1998 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Fog/Driving Lamp Relay >> Testing and Inspection

Fog/Driving Lamp Relay: Testing and Inspection

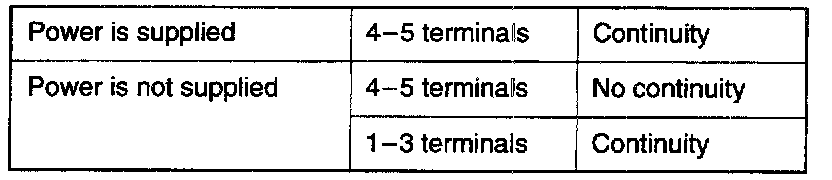

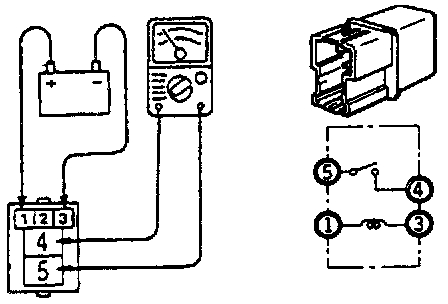

Connect battery to terminal 1 and check continuity between terminals with terminal 3 grounded.
