Disassembly and Assembly

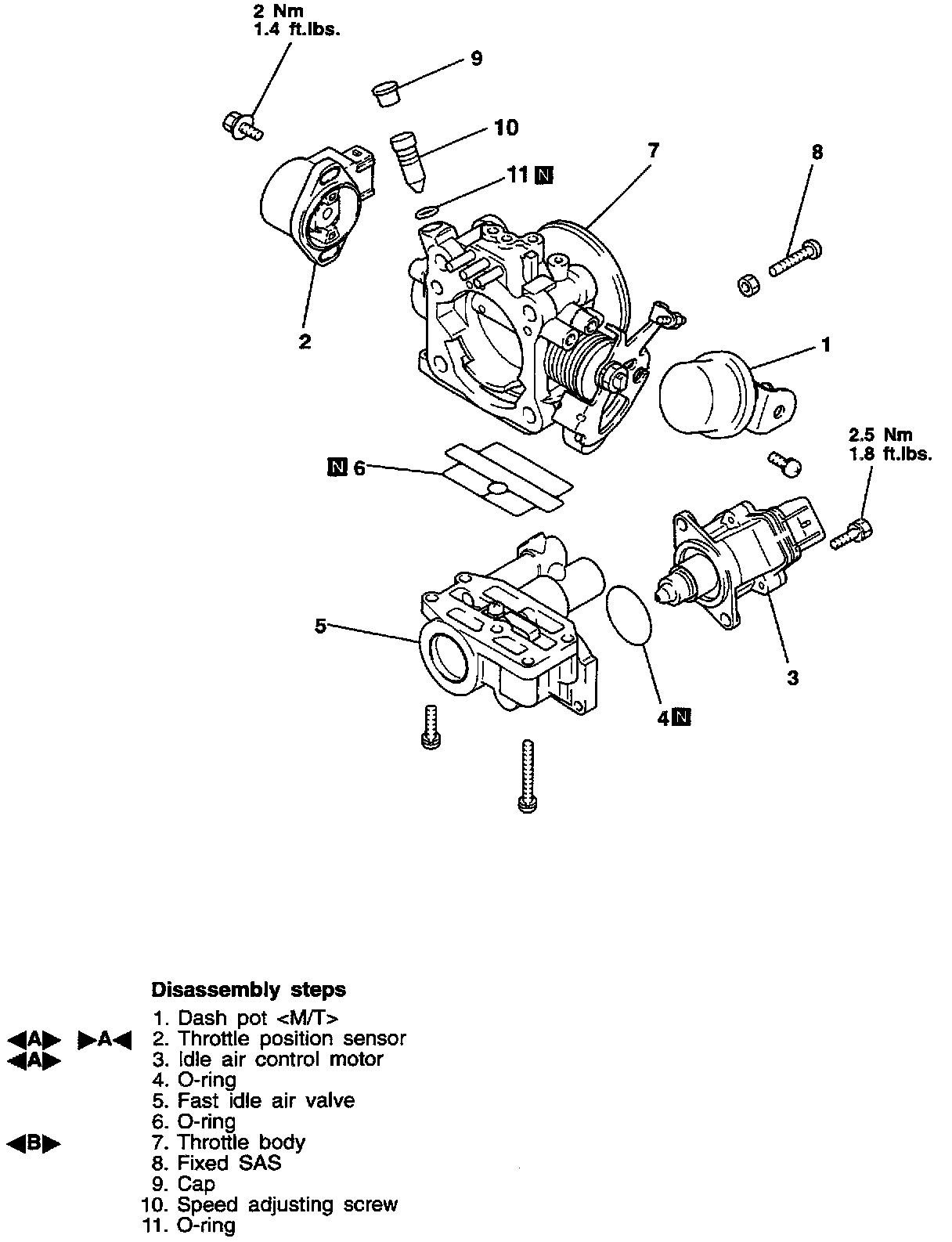

DISASSEMBLY AND REASSEMBLY

NOTE:
1. The fixed SAS and the speed adjusting screw are correctly adjusted at the factory and should not be removed.
2. If the fixed SAS should happen to have been removed, carry out fixed SAS adjustment.
3. If the speed adjusting screw should happen to have been removed, carry out speed adjusting screw adjustment.

DISASSEMBLY SERVICE POINTS

THROTTLE POSITION SENSOR AND IDLE AIR CONTROL MOTOR REMOVAL
(1) Do not disassemble the sensor and motor.
(2) Do not clean the sensor and motor by dipping them into cleaning solvent. Clean them with shop towel.

THROTTLE BODY REMOVAL
(1) Do not remove the throttle valve.
(2) Check if the vacuum port or passage is clogged. Use compressed air to clean the vacuum passage.

REASSEMBLY SERVICE POINTS

>A< THROTTLE POSITION SENSOR (TPS) INSTALLATION

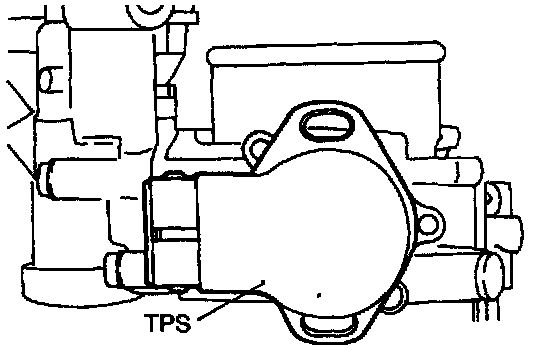

(1) Install the throttle position sensor to the throttle body as shown in the illustration.

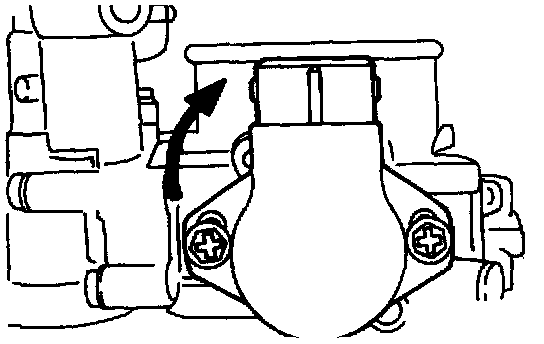

(2) Turn the throttle position sensor 90± clockwise to set it and tighten the screws.

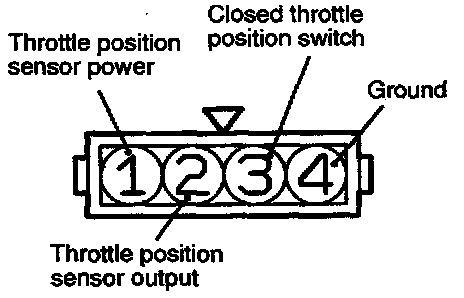

(3) Connect a circuit tester between 4 (ground) and 2 (output), or between 2 (output) and 1 (power). Then, make sure that the resistance changes smoothly when the throttle valve is slowly moved to the fully open position.

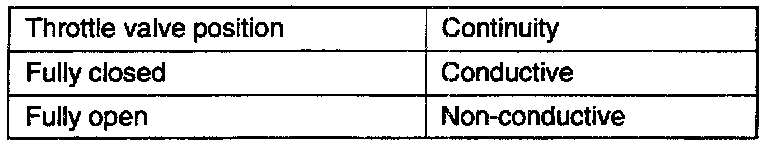

(4) Check for continuity between terminals 3 (closed throttle position switch) and 4 (ground) with the throttle valve both fully closed and fully open.
If there is no continuity with the throttle valve fully closed, turn TPS counterclockwise and then check again.

NOTE: Some throttle position sensors are not provided with the position switch. In that case, the check described in step (4) cannot be accomplished.

(5) If the above specifications are not met, replace TPS.
