Oscilloscope Patterns and Waveforms

Using Oscilloscope
(1) Run the engine at idle speed.

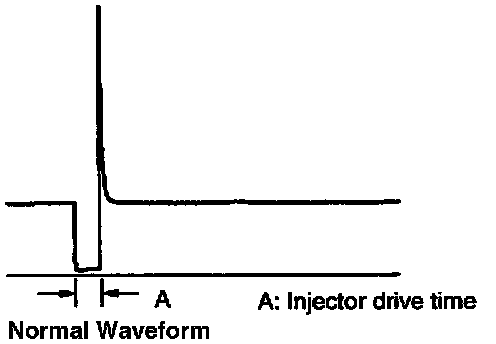

(2) Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram and check the waveform at the drive side of each injector.
