Component Testing

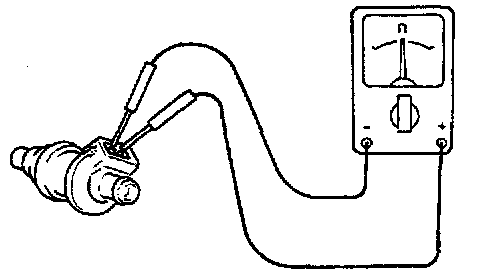

(1) Measure resistance between terminals of injector using a ohmmeter.

Standard value: 13 - 16 Ohms [at 20°C (68°F)]

(2) If the resistance is out of specification, replace the injector.
