Home >> Mitsubishi >> 1998 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Control Solenoid >> Locations

EGR Control Solenoid: Locations

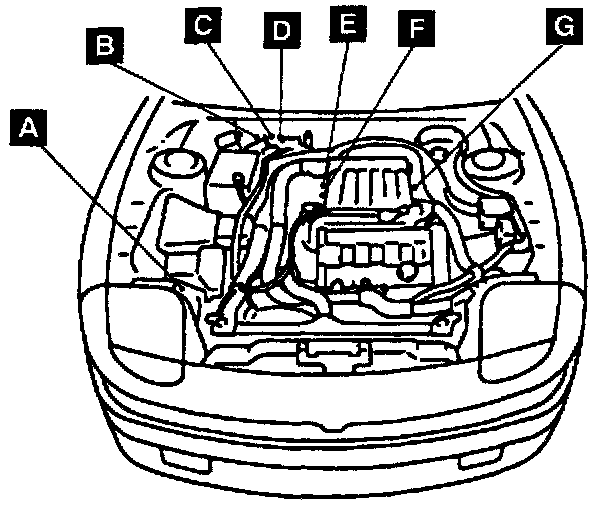

Solenoid, Solenoid Valve Locations Overall View:

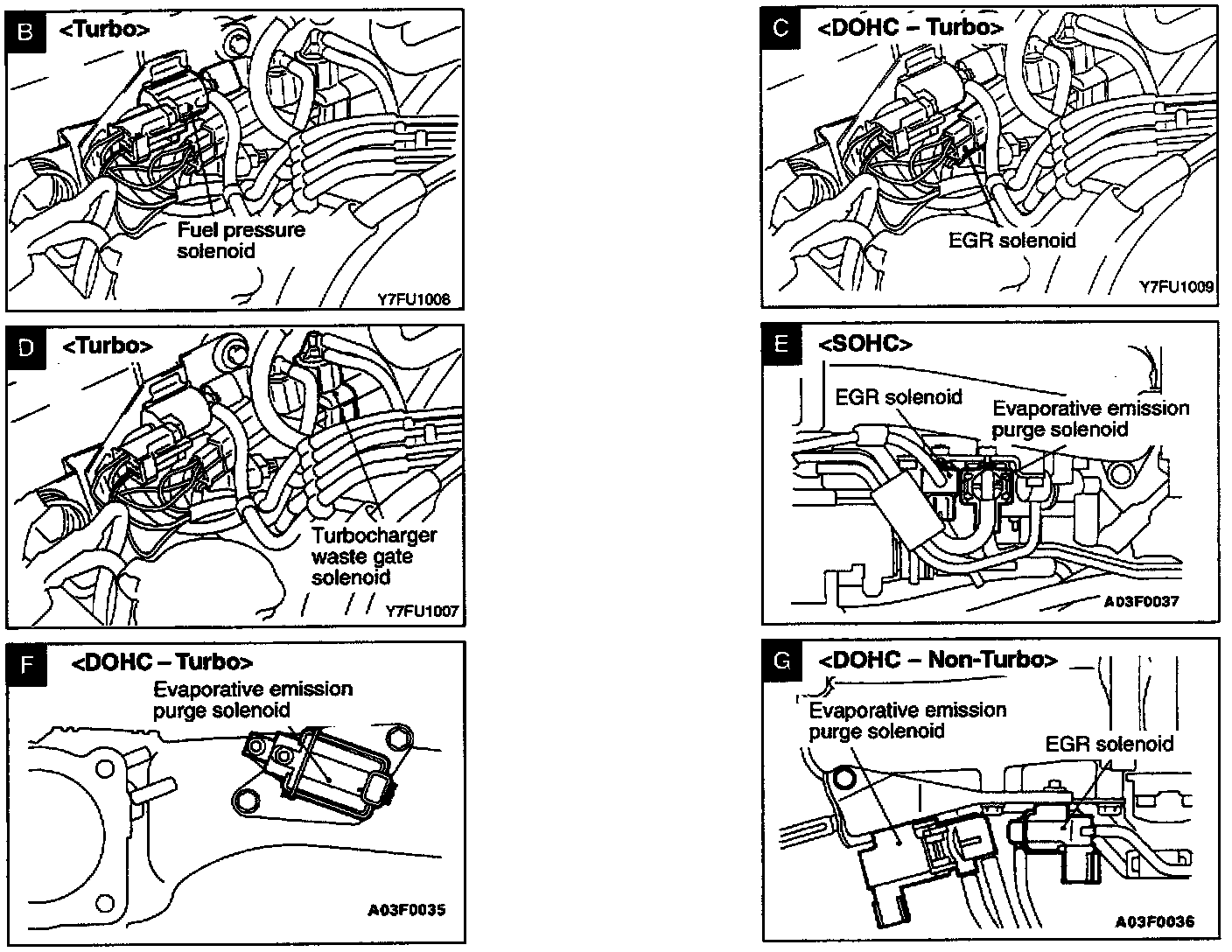

Solenoid, Solenoid Valve Views B-G:




Name Symbol
EGR Solenoid E
