Coolant Line/Hose: Service and Repair

REMOVAL
Pre-removal Operation:
- Engine Coolant Draining.
- Timing Belt Removal.

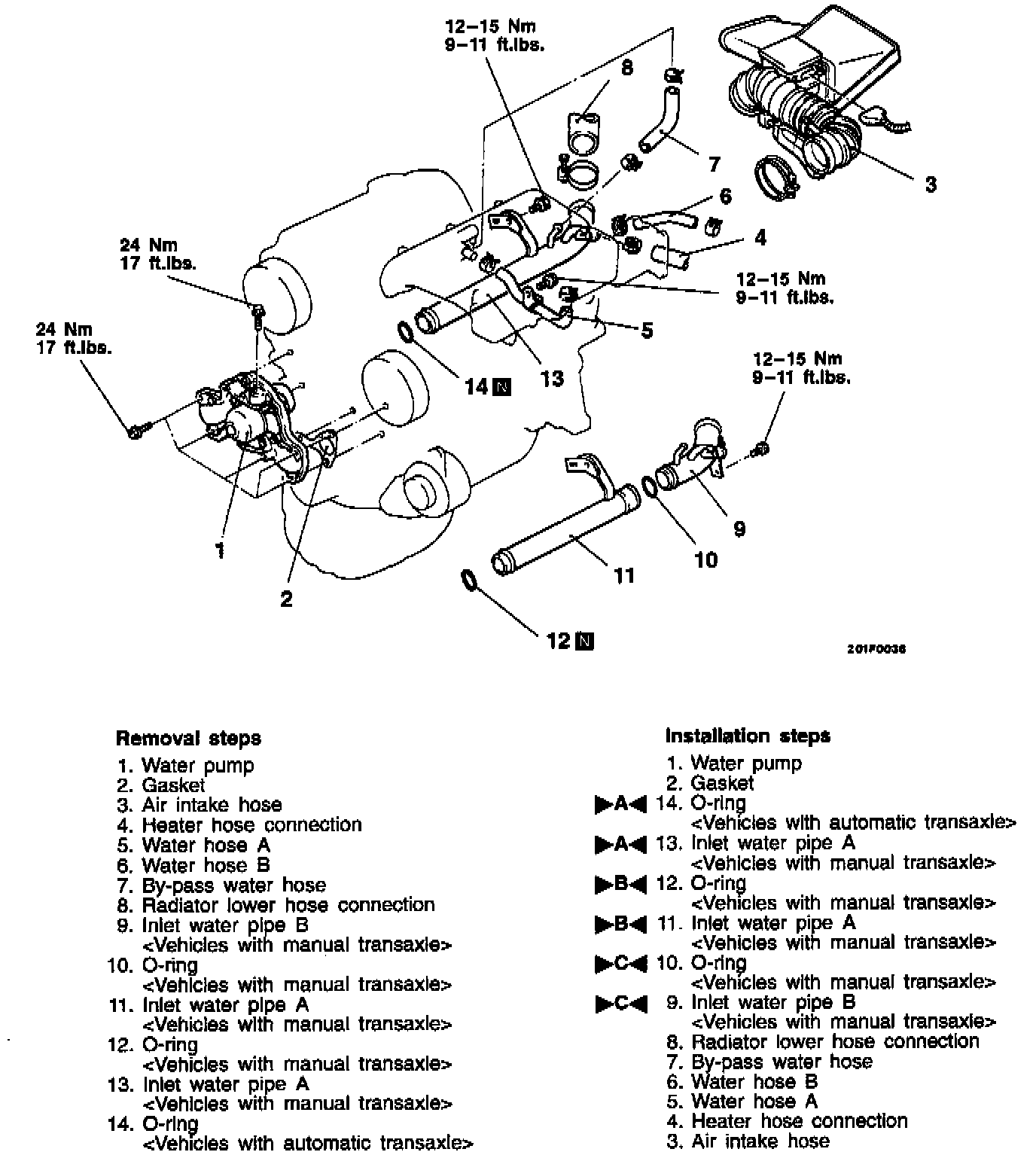

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points

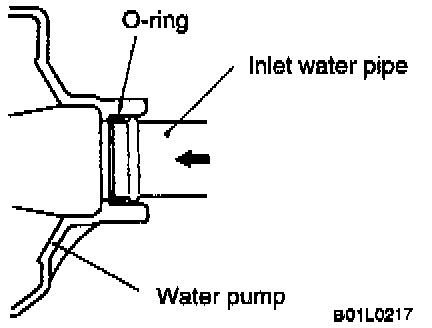

]A[ O-ring / Inlet Water Pipe Installation.
Insert the O-ring to the water inlet pipe, and coat the outer portion of the O-ring with water.
By coating with water the insertion to the water pump will become easier.

CAUTION: Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
Do not fold over or scratch the O-ring during installation.

]B[ O-ring / Inlet Water Pipe A Installation
Insert the O-ring to the water inlet pipe A, and coat the outer portion of the O-ring with water.
By coating with water, the insertion to the water pump will become easier.

CAUTION: Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
Do not fold over or scratch the Wring during installation.

]C[ O-ring / Inlet Water Pipe B Installation.
Insert the O-ring to the water inlet pipe B. and coat the outer portion of the O-ring with water.
By coating with water, the insertion to the water pump will become easier.

CAUTION: Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
Do not fold over or scratch the O-ring during installation.

Post-installation Operation
- Engine Coolant Supplying.
- Timing Belt Installation.

INSPECTION
Water Pump Check
If any of the following irregularities are observed, replace the water pump as an assembly.
(1) Damage or crack on the water pump body
(2) Water leakage. With improper sealing, a water leakage mark may be observed around hole (A).
