Locations
>>
Ground Locations
Ground Locations

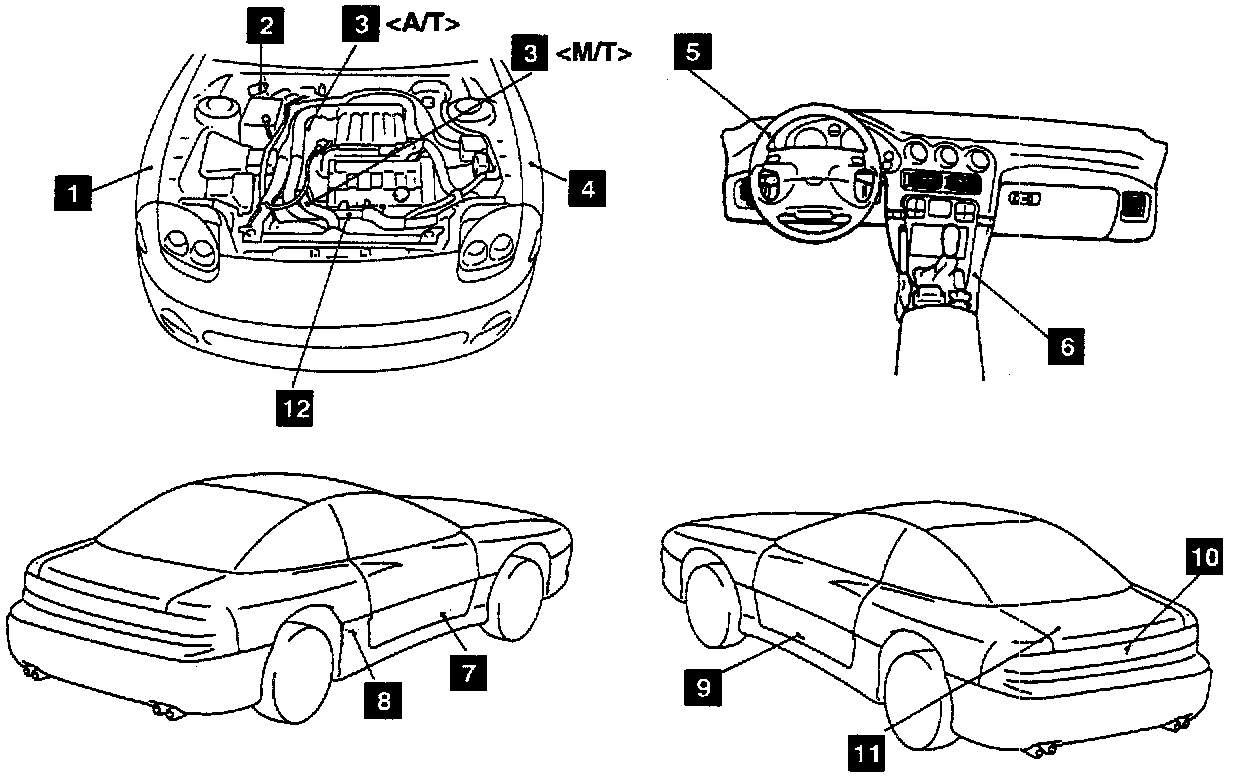

Grounding Locations Overall View:

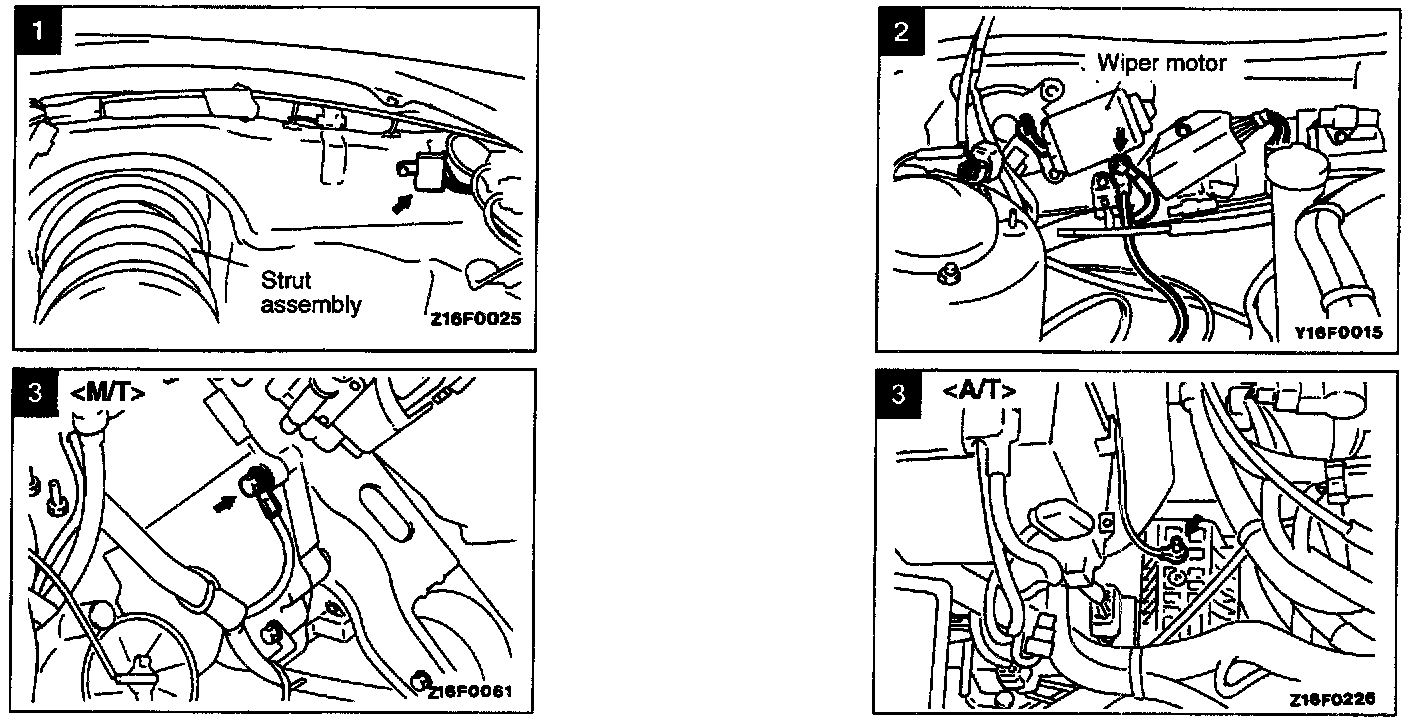

Grounding Locations Views 1-3:

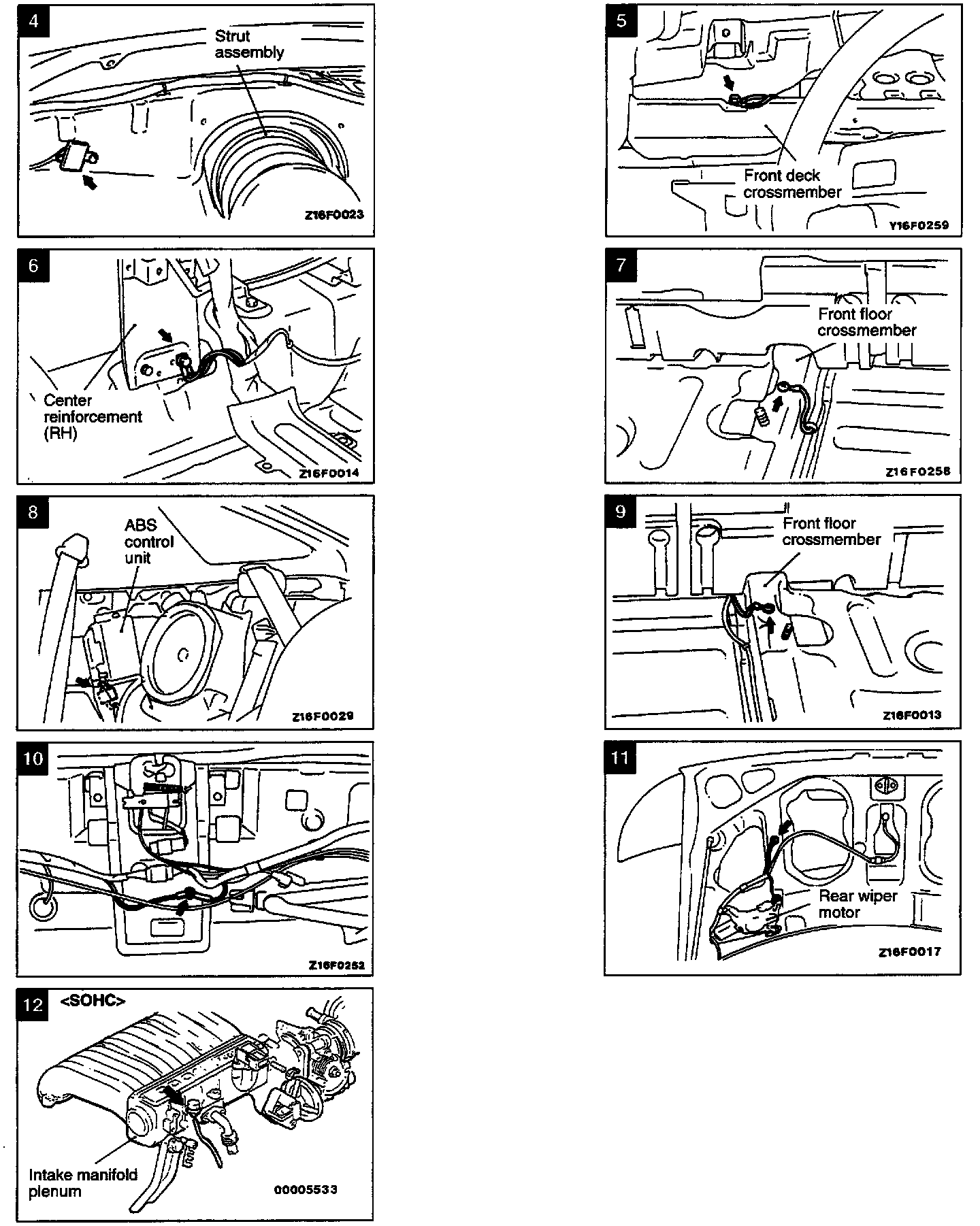

Grounding Locations Views 4-11:
NOTE:
Same ground numbers are used in the circuit diagrams.
