Horizontal Adjustment

Horizontal Adjusting:

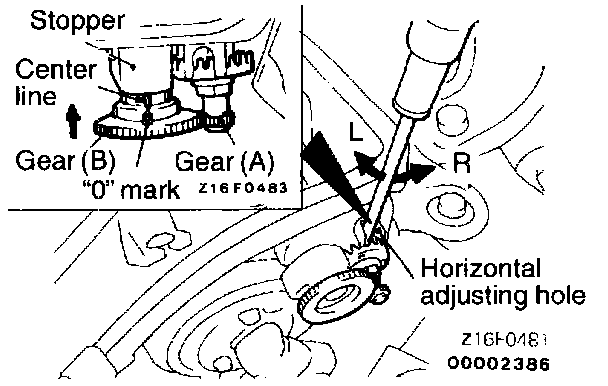

Insert a screwdriver in the horizontal adjusting hole and turn until the "0" mark and the center line are in alignment.


NOTE: The beam angle will change about 0°23' with on mark.

Horizontal Adjusting:

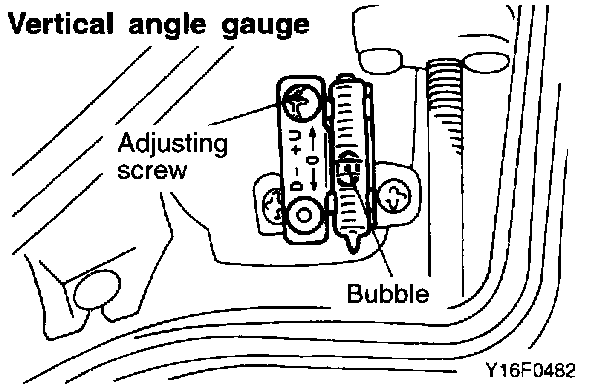

1. Check to see that the bubble in the headlight vertical angle gauge is in the illustrated position.
2. If the bubble is out of position, adjust by turning the adjusting screw.

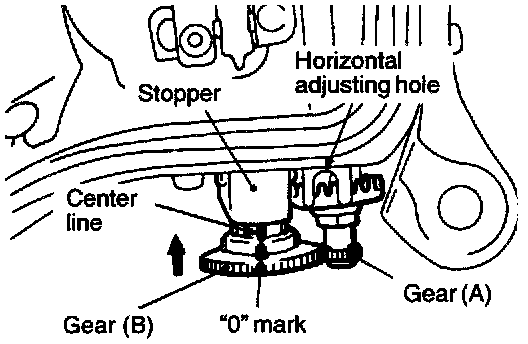

3. Confirm that the "0" mark on the headlight horizontal angle adjusting gear (B) is in alignment with the center line.
4. If not, perform the adjustment as follows.
1. Pull up the stopper.
2. Push the gear (B) in the arrow direction to disengage it from the gear (A).
3. Align the "0" mark on the gear (B) with the center line.
4. Push down the stopper to engage the gear (B) with the gear (A).


NOTE: On vehicles which have encountered an accident and undergone a body repair, the headlight cannot be adjusted perfectly by means of the on-board aiming.
For these vehicles, carry out also the headlight aiming using a screen described in the next paragraph.
