Initial Inspection and Diagnostic Overview

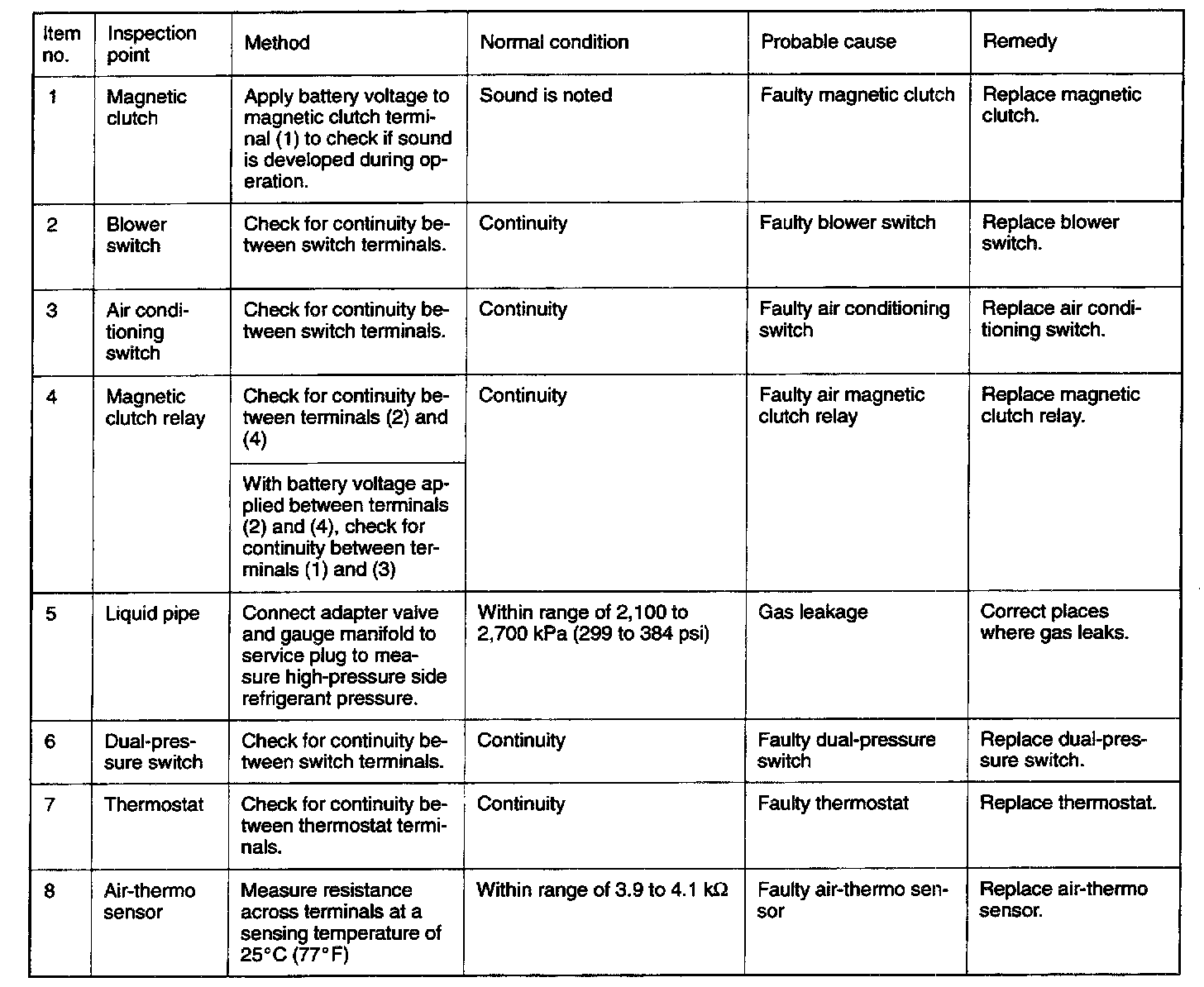

If no abnormality is noted at each inspect~on point after inspection conducted in the sequence shown in this quick-reference table, it is suspected that the compressor is inoperative because of faulty air conditioning control unit Therefore, replace the air conditioning control unit.
