Hose/Line HVAC: Service and Repair

REMOVAL SERVICE POINTS

A DISCHARGE HOSE / DISCHARGE PIPE REMOVAL

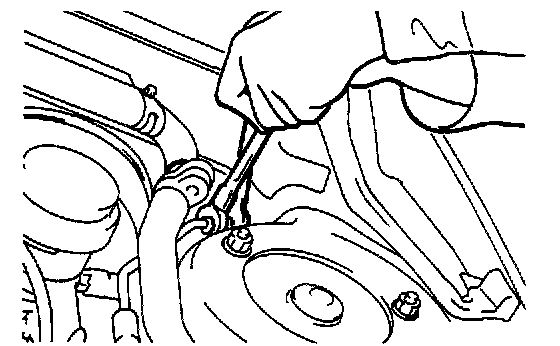

Loosen the flare nut by using two wrenches.

INSTALLATION SERVICE POINTS

RECEIVER / SUCTION HOSE INSTALLATION

If suction hose is replaced with new ones, or if a new receiver is installed, pour the specified amount of oil in the compressor before installing these parts in the vehicle.

Compressor oil: SUN PAG 56
Quantity
Suction hose: 10 Cubic.cm (0.3 fl.oz.)
Receiver: 10 Cubic.cm (0.3 fl.oz.)

B DISCHARGE PIPE B INSTALLATION

Connect discharge pipe B first on the receiver side.
