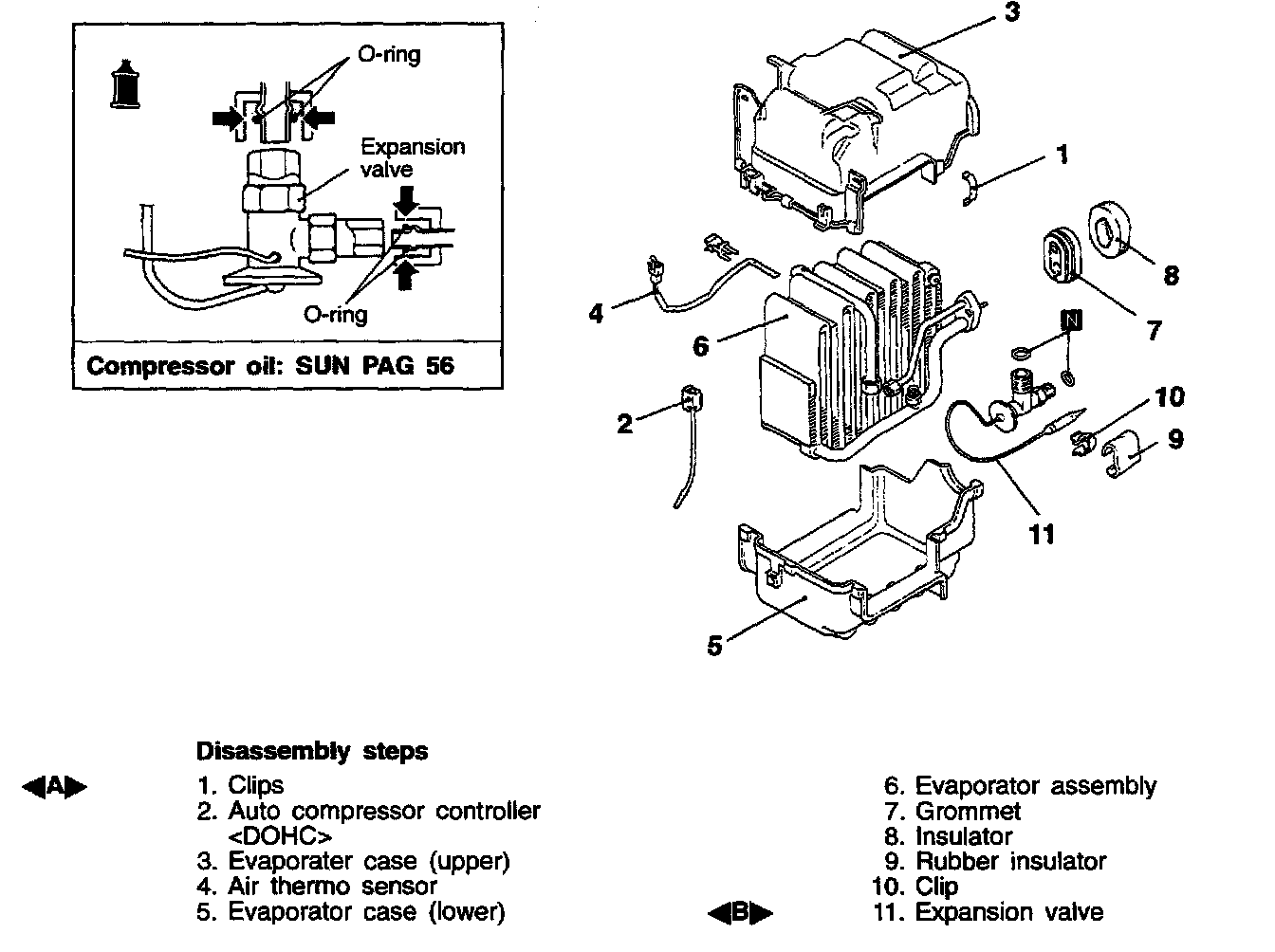

Disassembly and Reassembly

DISASSEMBLY SERVICE POINTS

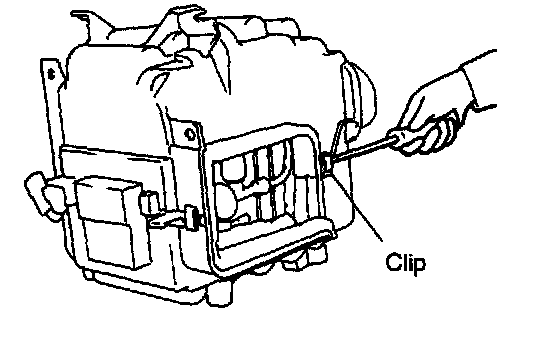

A CLIPS REMOVAL




Remove the clips with a screwdriver covered with a shop towel to prevent damage to case surfaces.

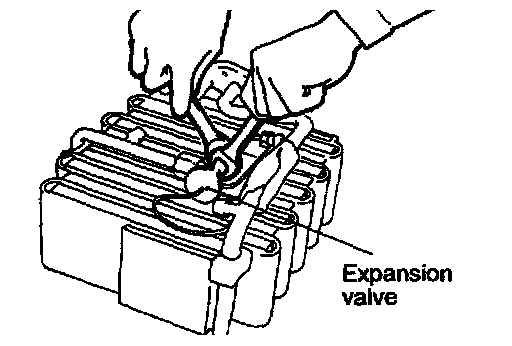

EXPANSION VALVE REMOVAL




Loosen the flare nut by using two wrenches (for both the inlet and outlet).
