Condenser Fan Motor Check

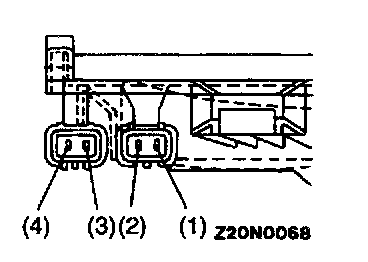

1. Apply battery voltage (+) to terminal (3) and ground (-) terminal (4); at this time, check that the condenser fan motor turns.
2. Apply battery voltage (+) to terminal (1) and ground (-) terminal (2); at this time, check that the condenser fan motor turns.
