Blower Motor: Service and Repair

INSTALLATION SERVICE POINTS

A BLOWER MOTOR ASSEMBLY INSTALLATION

Before installing the blower motor assembly, carefully clean away any dust, dirt, etc. adhering to the inner surface of the blower case.

B AIR SELECTION CONTROL WIRE INSTALLATION




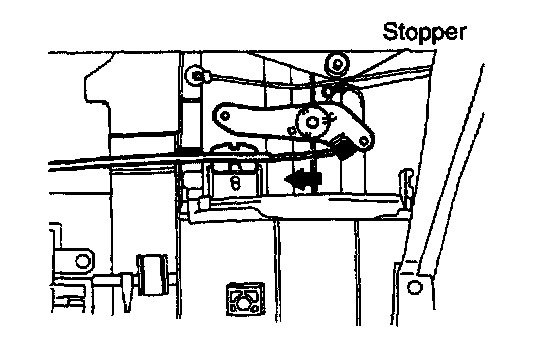

Connect the air selection control wire to the air selection damper lever by following the steps below.
1. Move the air selection control lever to the recirculation position
2. Set the air selection damper lever as it contacts stopper.
3. Connect the inner cable of the air selection control wire to the end of the air selection lever, and then secure the outer cable by using a clip.
