Air Conditioning Switch: Service and Repair

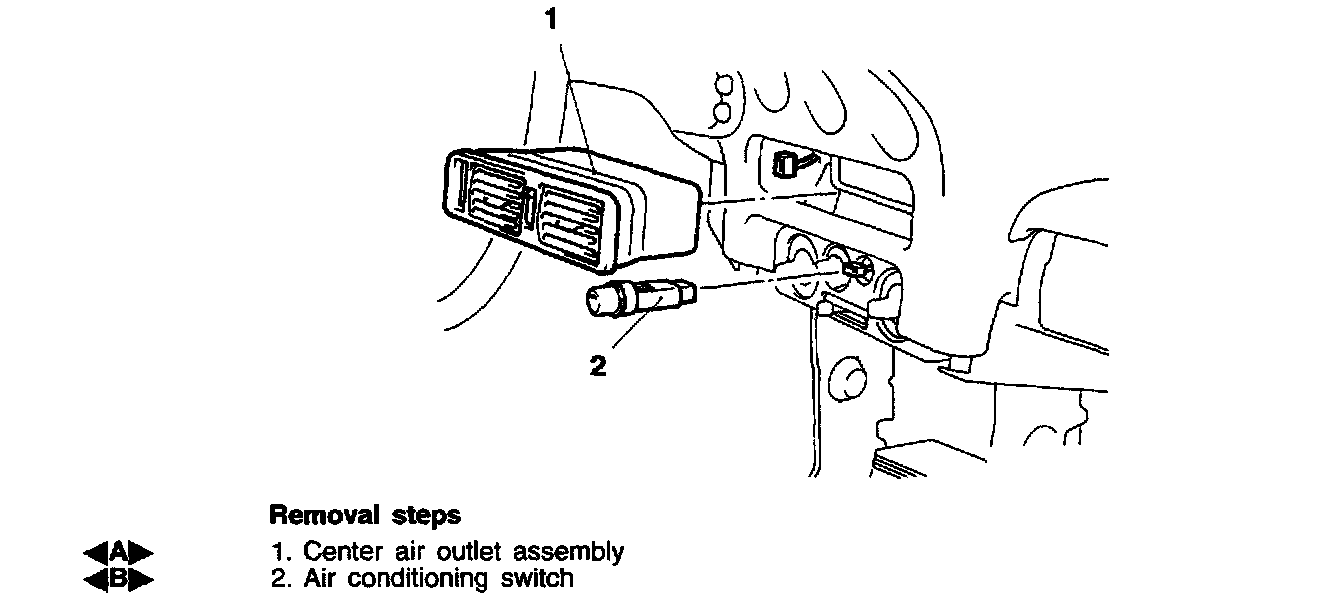

REMOVAL SERVICE POINTS

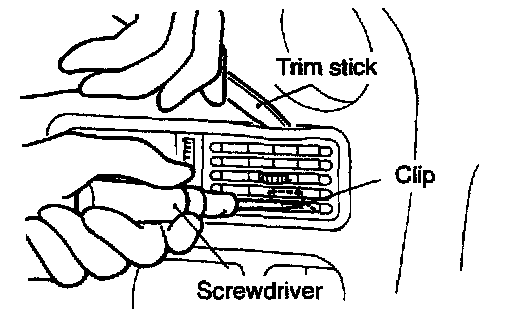

A CENTER AIR OUTLET ASSEMBLY REMOVAL




Disengaging the clips (2 positions) of the center air outlet assembly with a flat tip screwdriver, remove the center air outlet assembly with the trim stick.

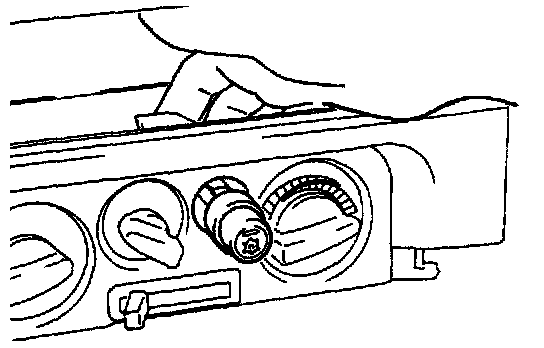

B AIR CONDITIONING SWITCH REMOVAL




Remove the center air outlet assembly, and insert hand to the back of the cluster panel assembly through the produced opening. Push it toward you for removal.
