Exhaust Pipe: Service and Repair

REMOVAL

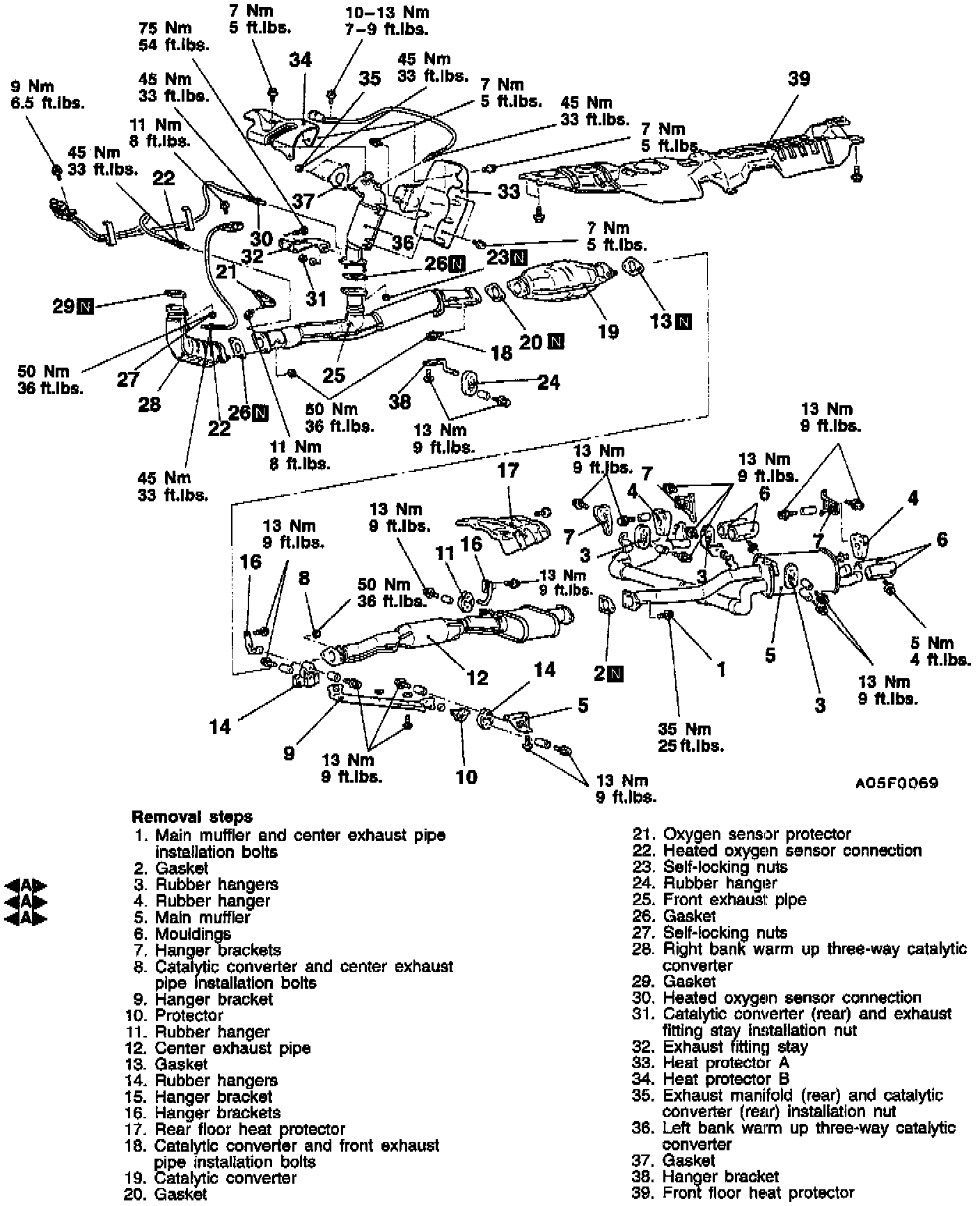

Follow removal steps outlined in illustration.

Removal Service Points

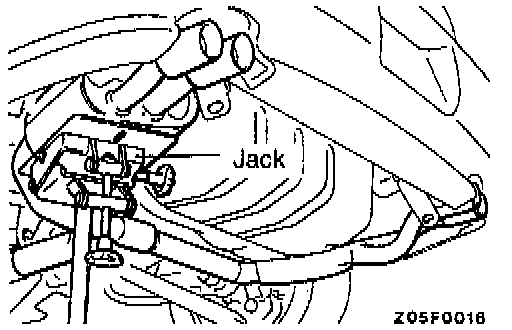

[A] Rubber Hanger / Main Muffler Removal.
Support with a transmission jack, etc.

INSTALLATION
Installation in reverse order as removal.

INSPECTION
- Check the mufflers and pipes for corrosion or damage.
- Check the rubber hangers for deterioration or damage.
- Check for gas leakage from mufflers and pipes.
