Exhaust Manifold: Service and Repair

REMOVAL
Pre-removal Operation:
- Front Exhaust Pipe Removal.

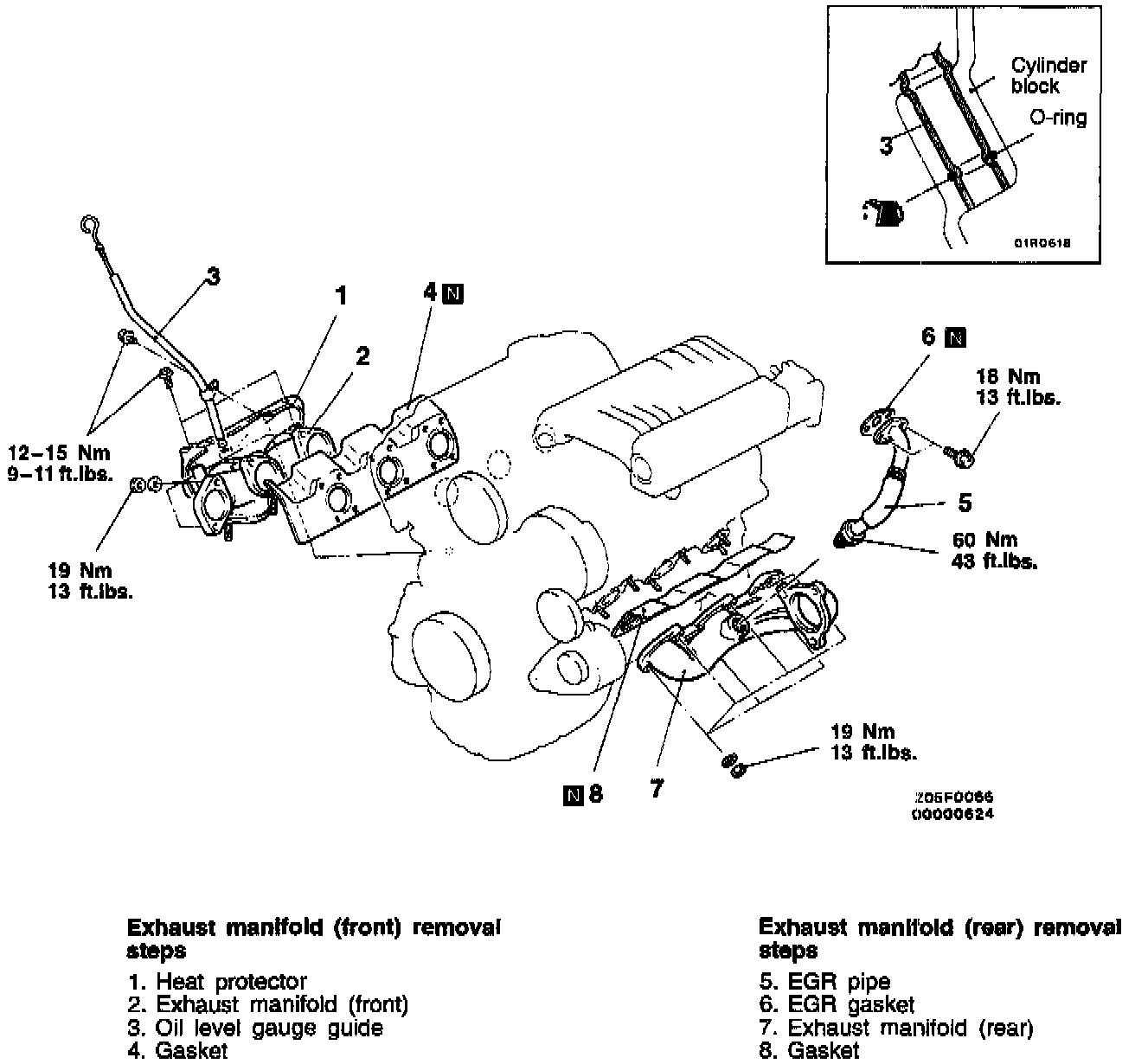

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation:
- Front Exhaust Pipe Installation.

INSPECTION
Check the following points. Replace the part if a problem is found.
- Check for damage of cracking of any part.
