System Diagram

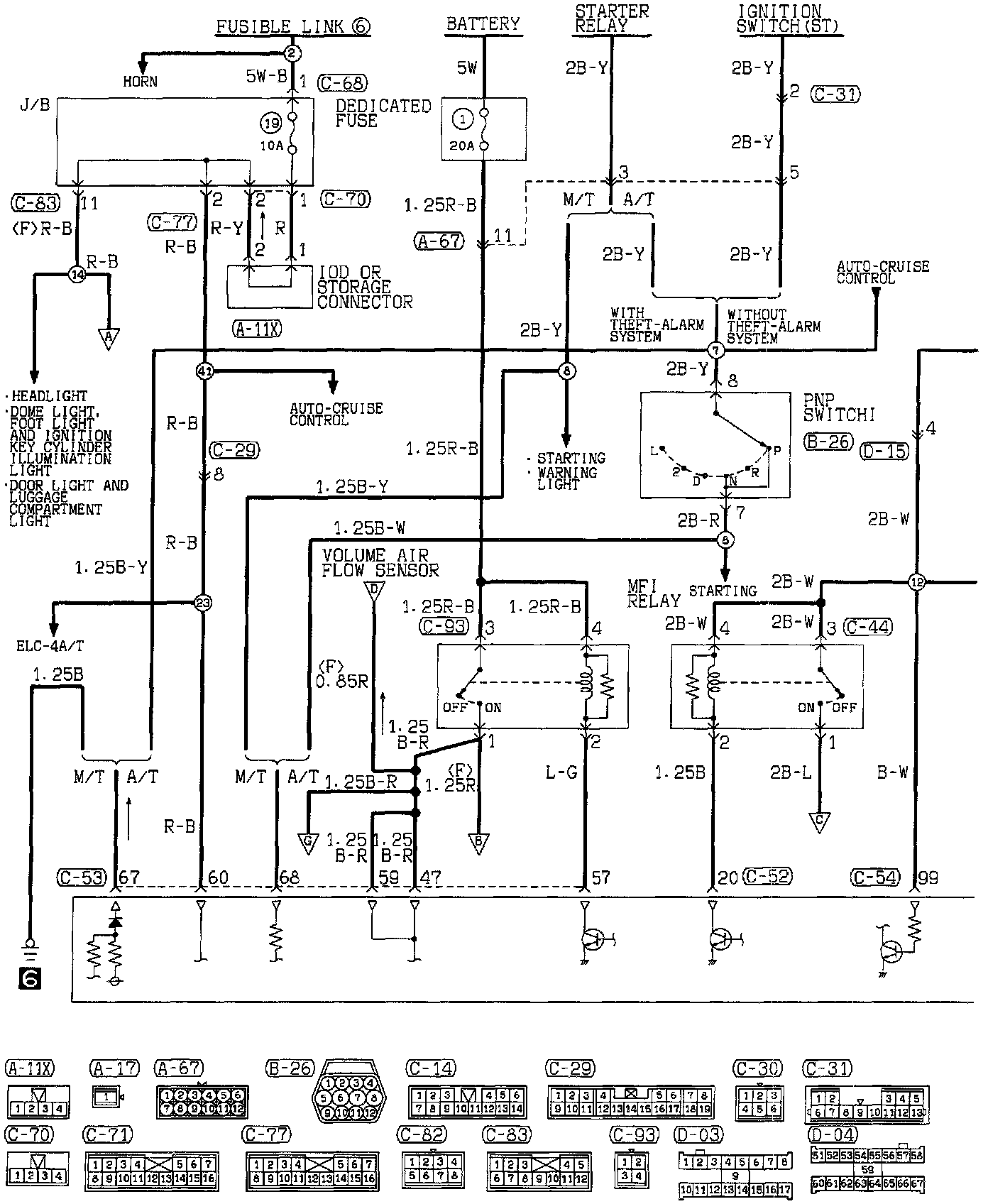

MFI System (Part 1 Of 8):

Dedicated Fuse
Engine Control Module
IOD or Storage Connector
J/B
MFI Relay
PNP Switch

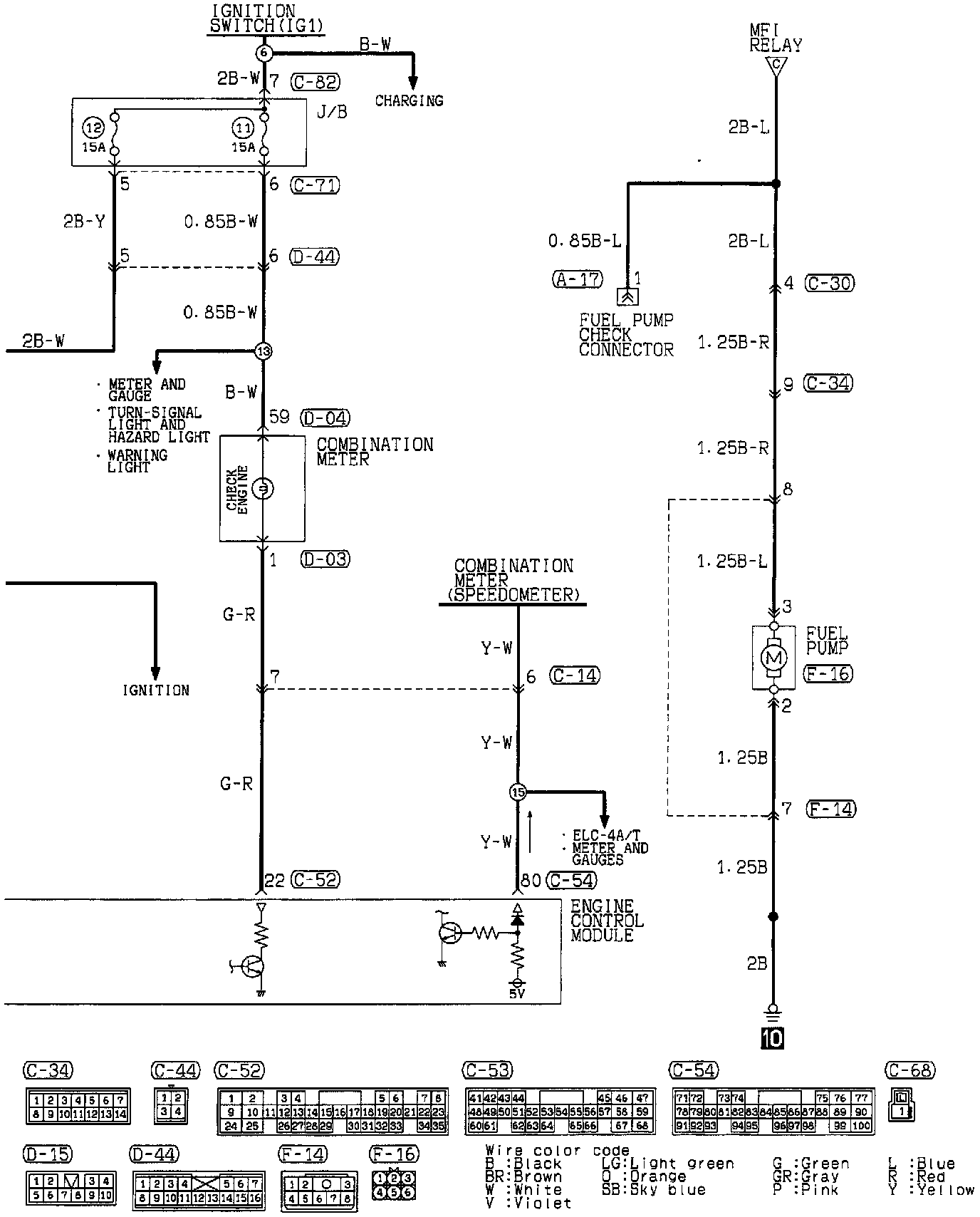

MFI System (Part 2 Of 8):

Combination Meter
Engine Control Module
Fuel Pump
J/B

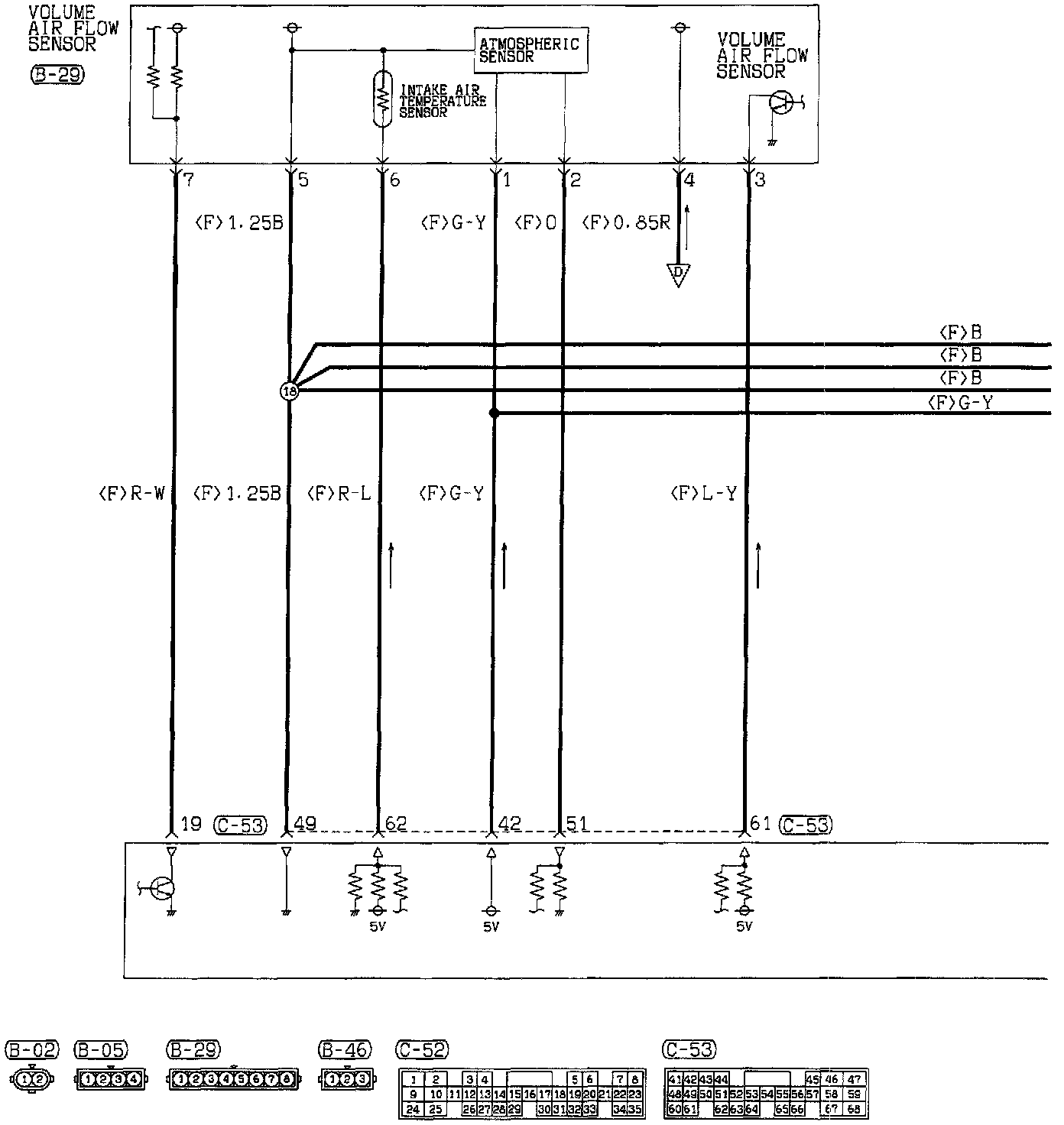

MFI System (Part 3 Of 8):

Engine Control Module
Volume Air Flow Sensor
- Atmospheric Sensor

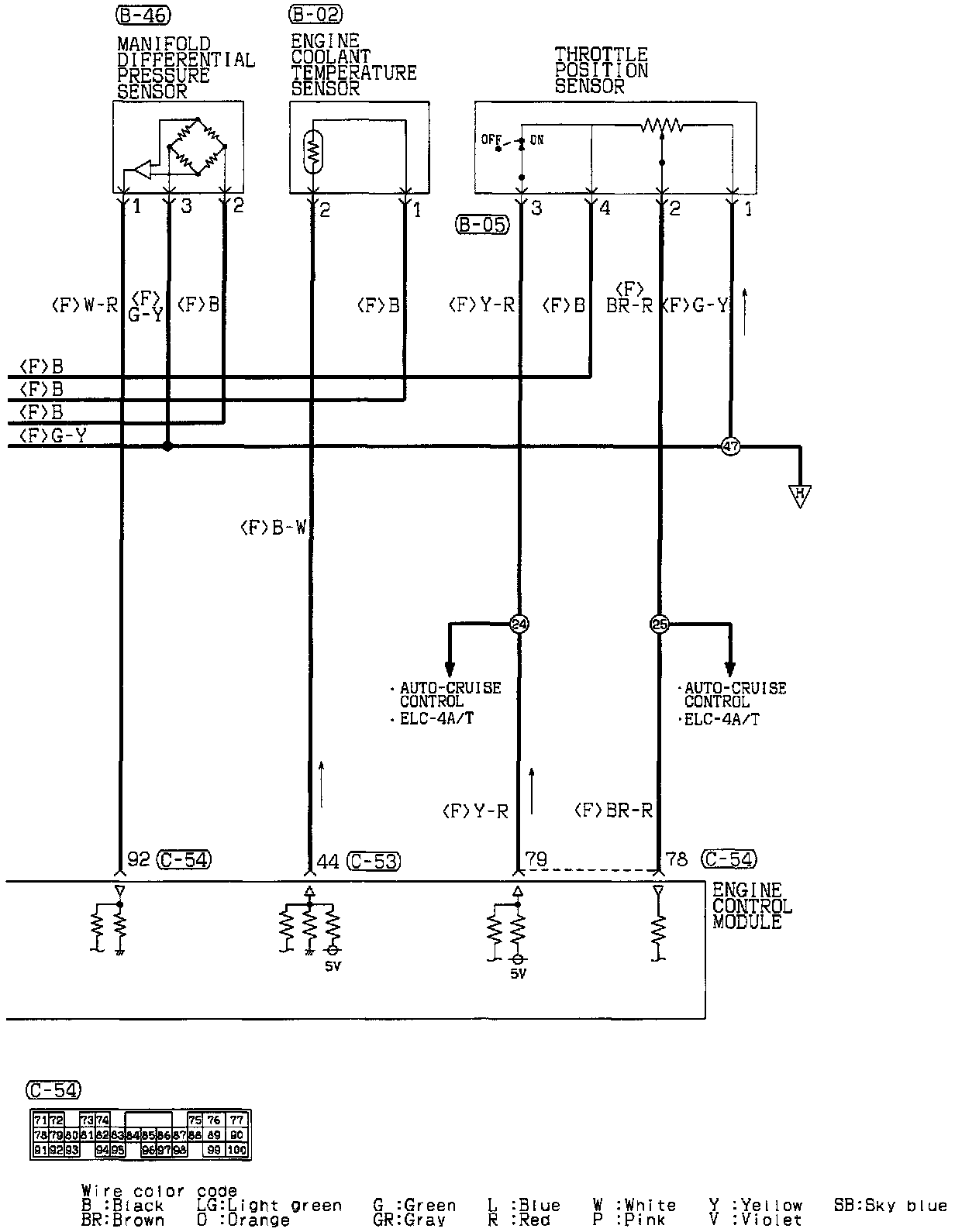

MFI System (Part 4 Of 8):

Engine Control Module
Engine Coolant Temperature Sensor
Manifold Differential Pressure Sensor
Throttle Position Sensor

MFI System (Part 5 Of 8):

CKP Sensor
CMP Sensor
Engine Control Module
Injector
ISC Motor

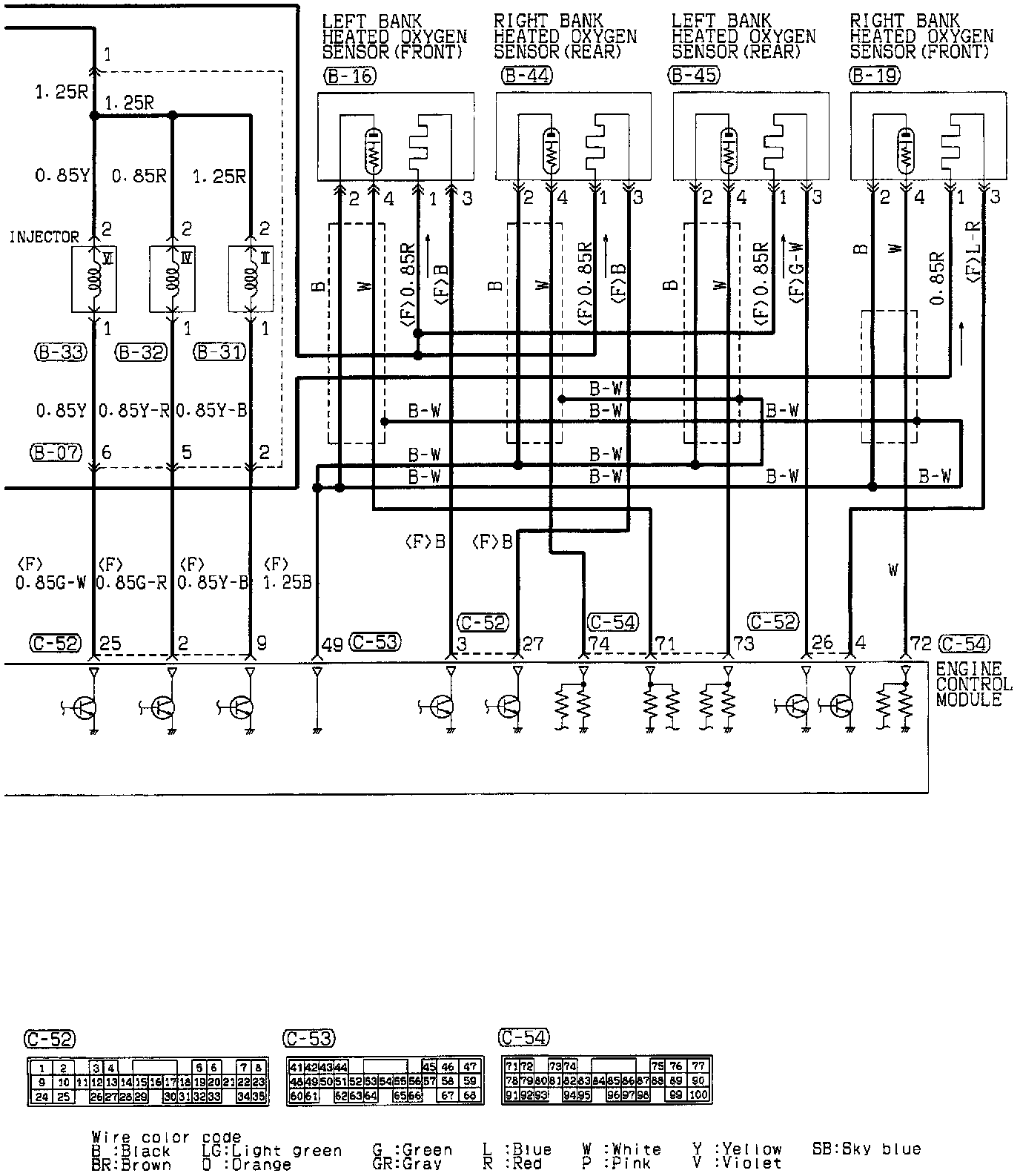

MFI System (Part 6 Of 8):

Engine Control Module
Injector
Left Heated Oxygen Sensor(Rear and Front)
Right Heated Oxygen Sensor(Rear and Front)

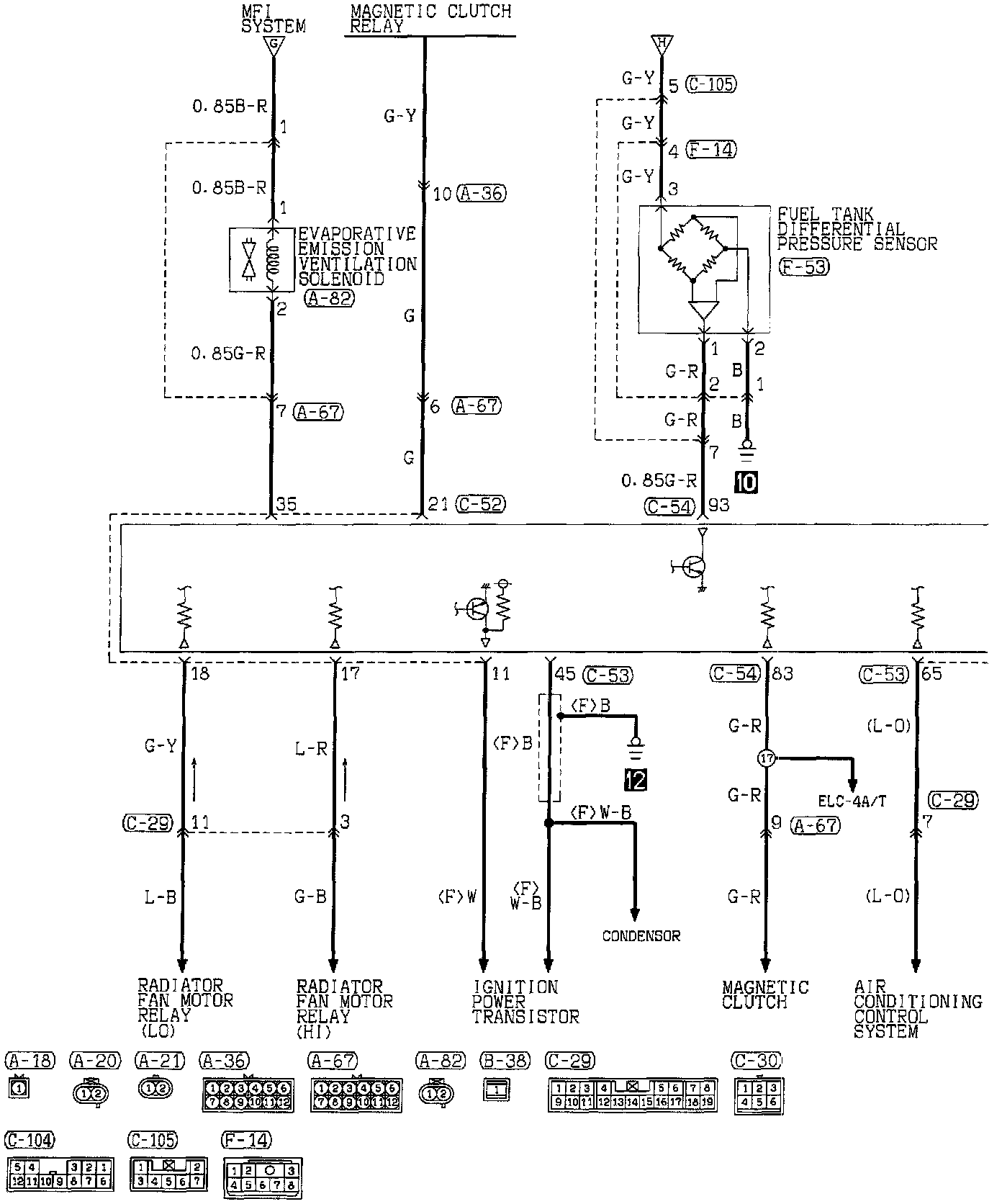

MFI System (Part 7 Of 8):

Engine Control Module
Fuel Emission Ventilation Solenoid
Fuel Tank Differential Pressure Sensor

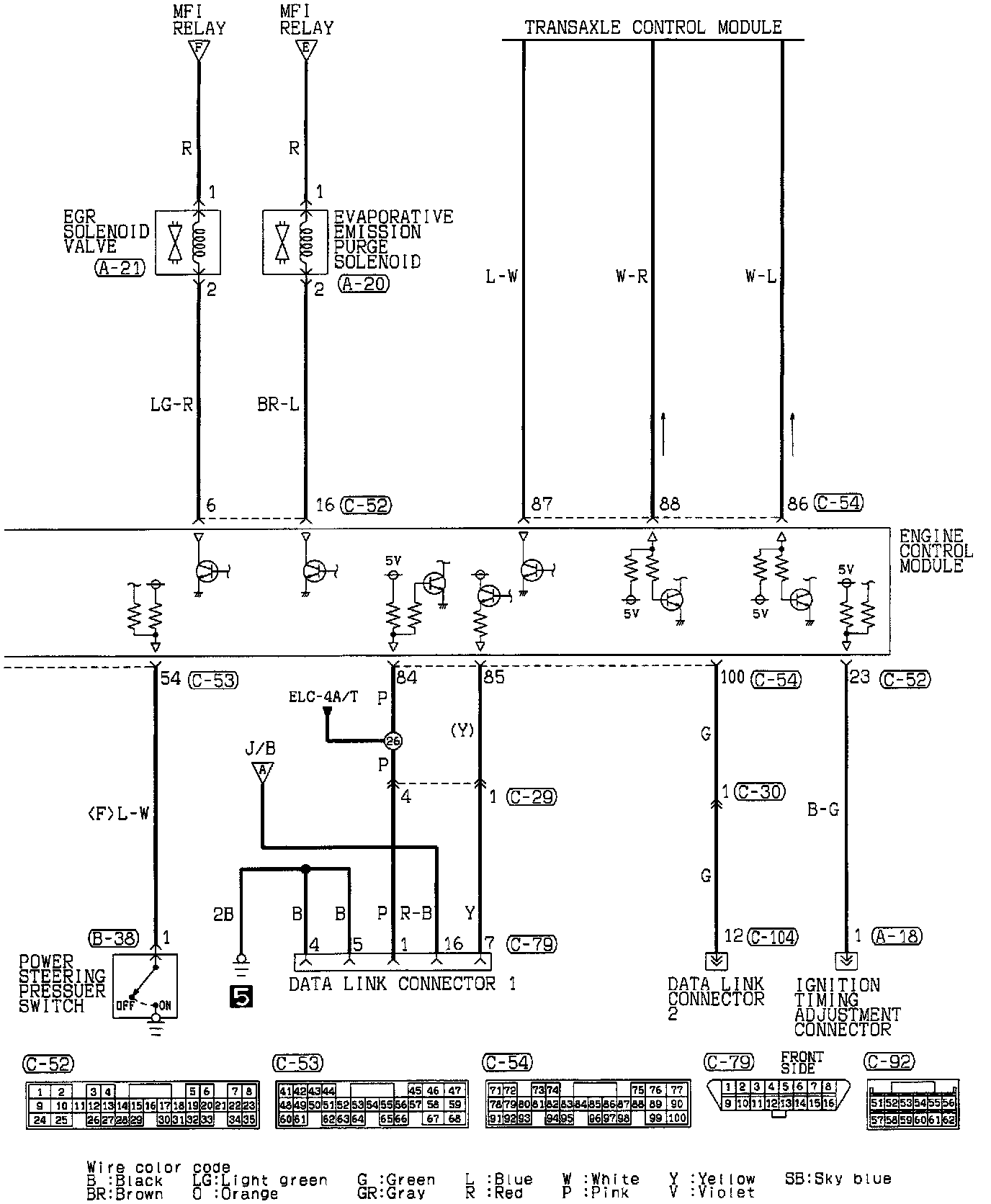

MFI System (Part 8 Of 8):

Data Link Connector (1 and 2)
Engine Control Module
EGR Solenoid Value
Evaporative Emission Purge Solenoid
Ignition Timing Adjustment Connector
Power Steering Pressure Switch
