Courtesy Lamp
>>
System Diagram
>>
Hatchback
Hatchback

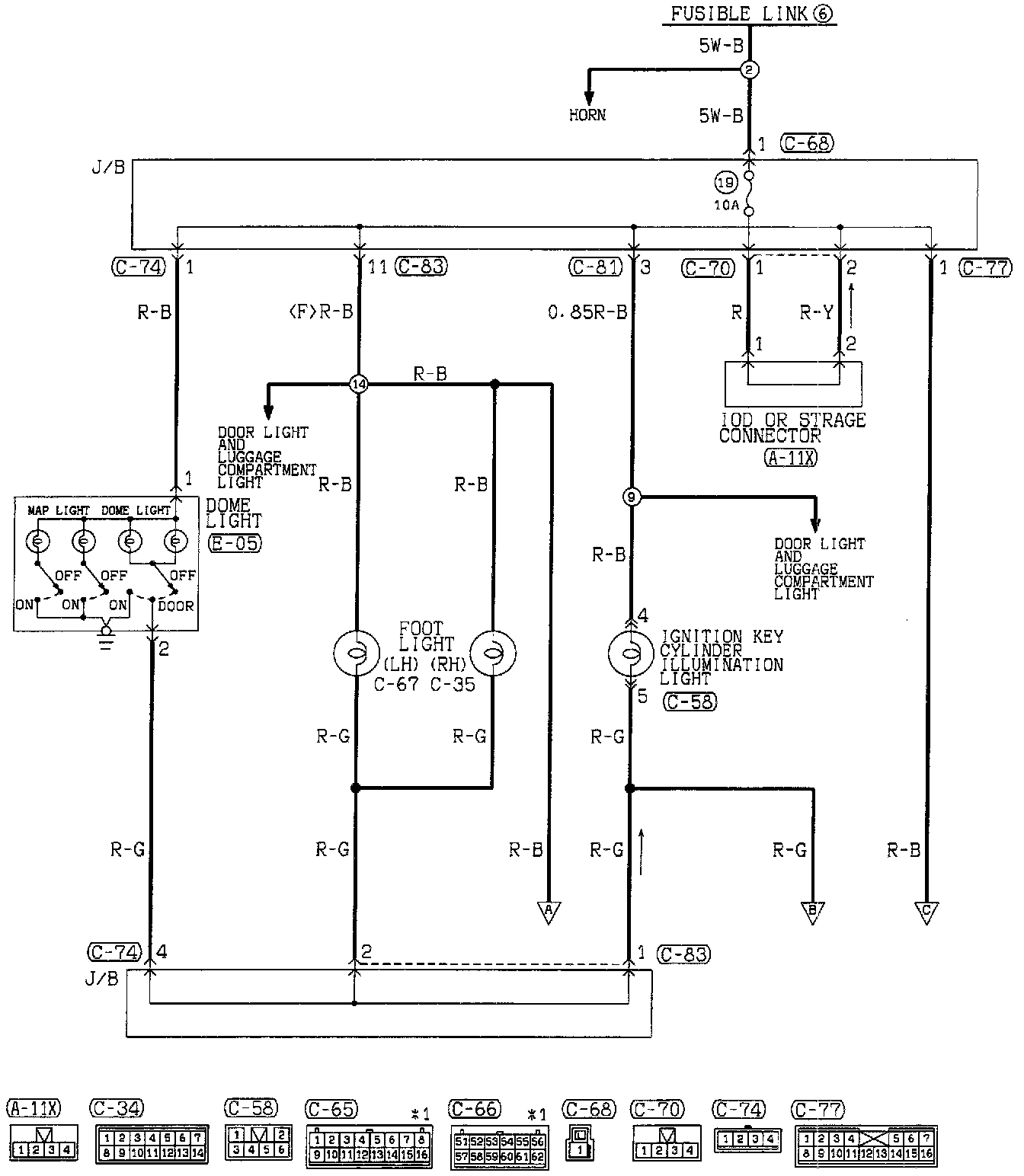

Dome, Foot And Ignition Key Cylinder Illumination Light (Part 1 Of 2):

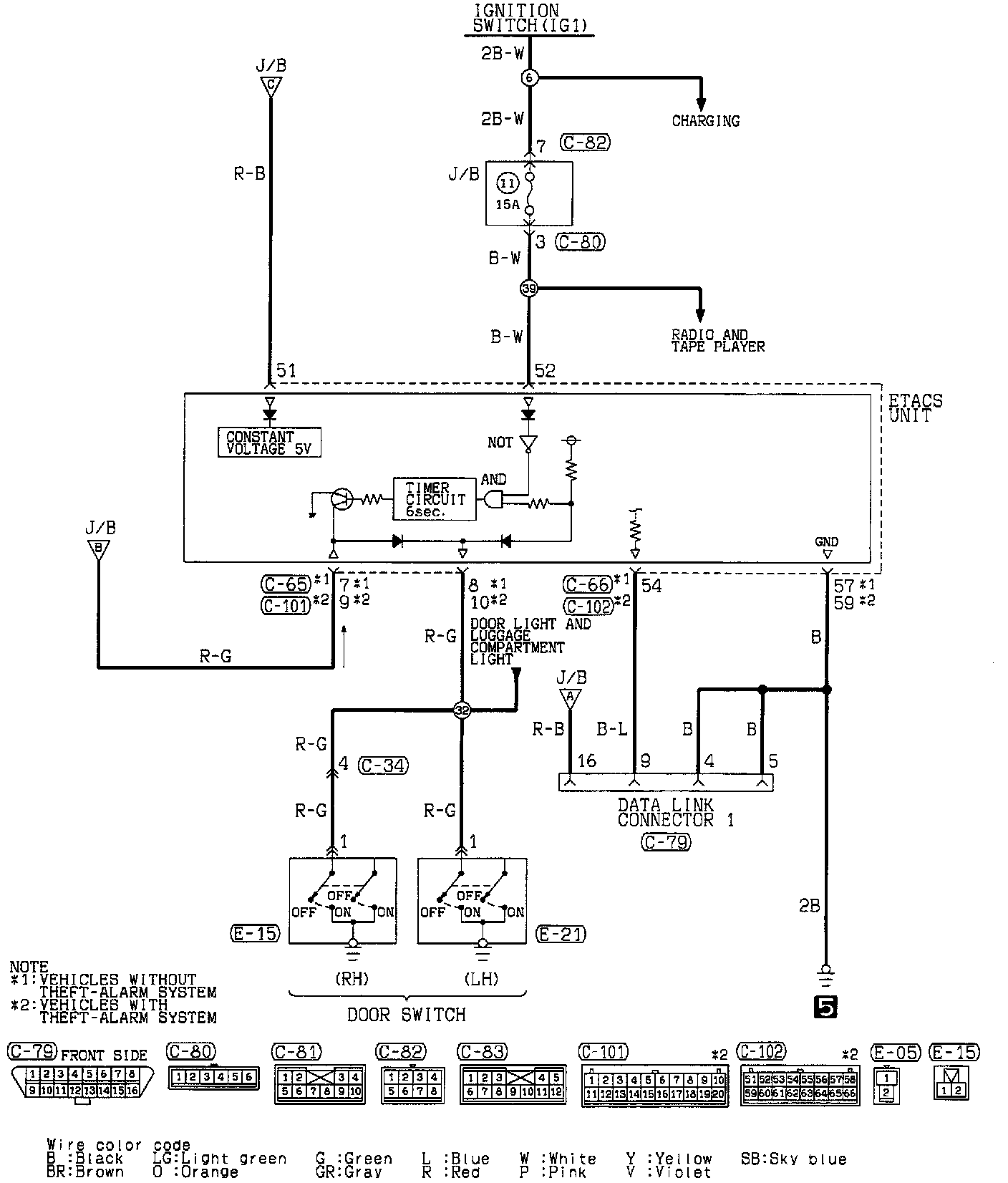

Dome, Foot And Ignition Key Cylinder Illumination Light (Part 2 Of 2):
