With Automatic Transmission

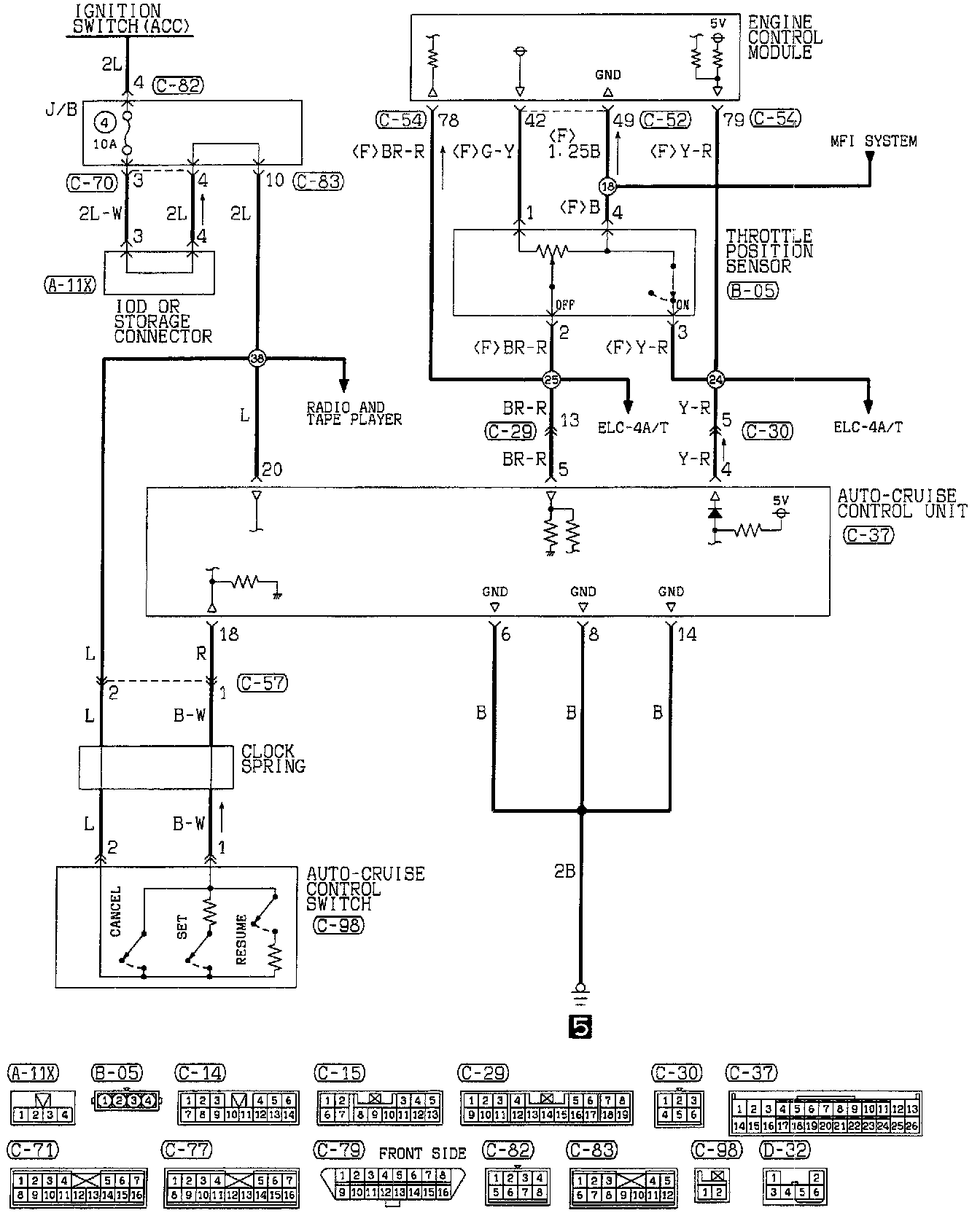

Auto-Cruise Control System (Part 1 of 4):
Auto-Cruise Control Unit
Auto-Cruise Control Switch
Clock Spring
Engine Control Module
IOD or Storage Connector
J/B
Throttle Position Sensor

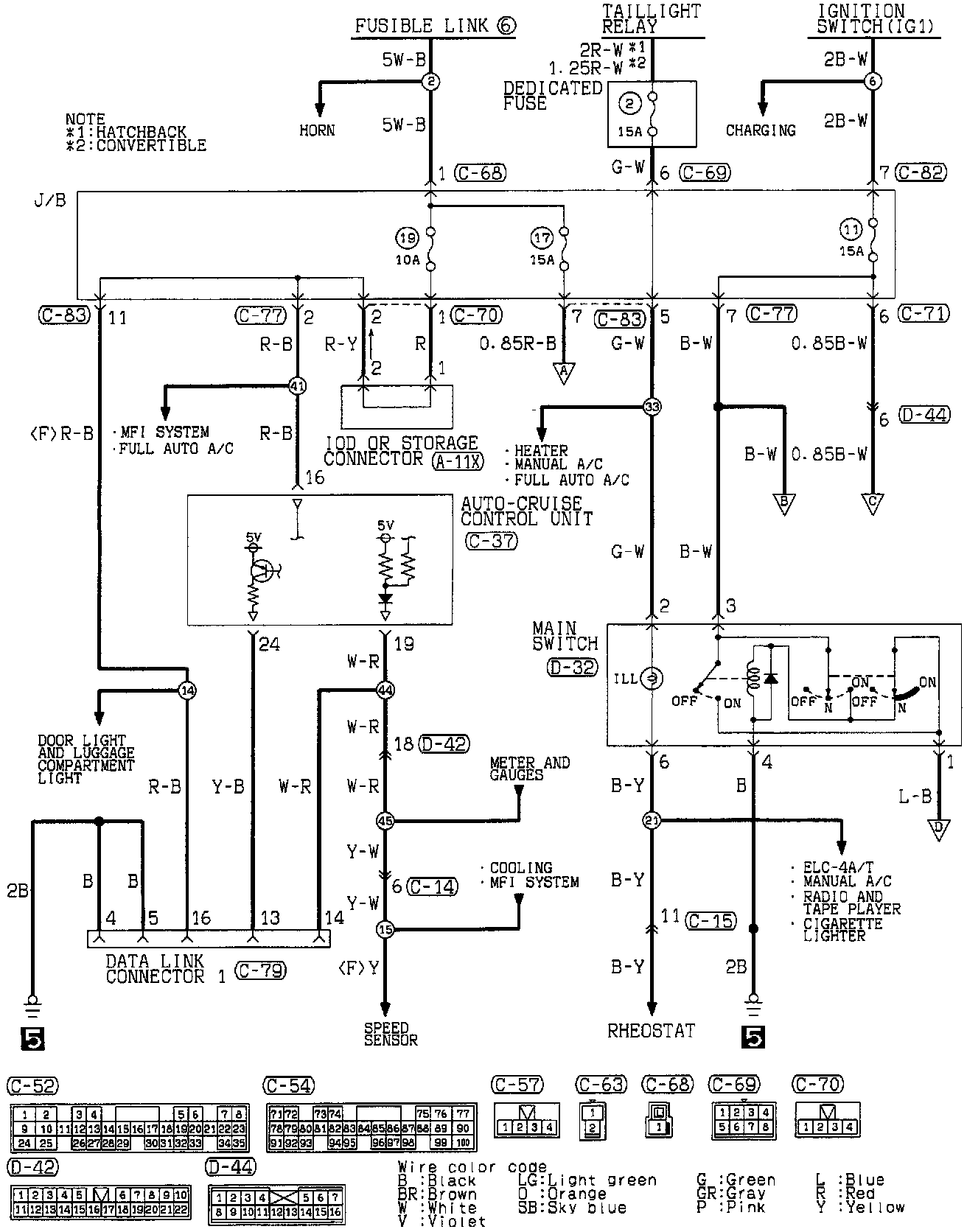

Auto-Cruise Control System (Part 2 of 4):
Auto-Cruise Control Unit
Data Link Connector 1
Dedicated Fuse
IOD or Storage Connector
J/B
Main Switch

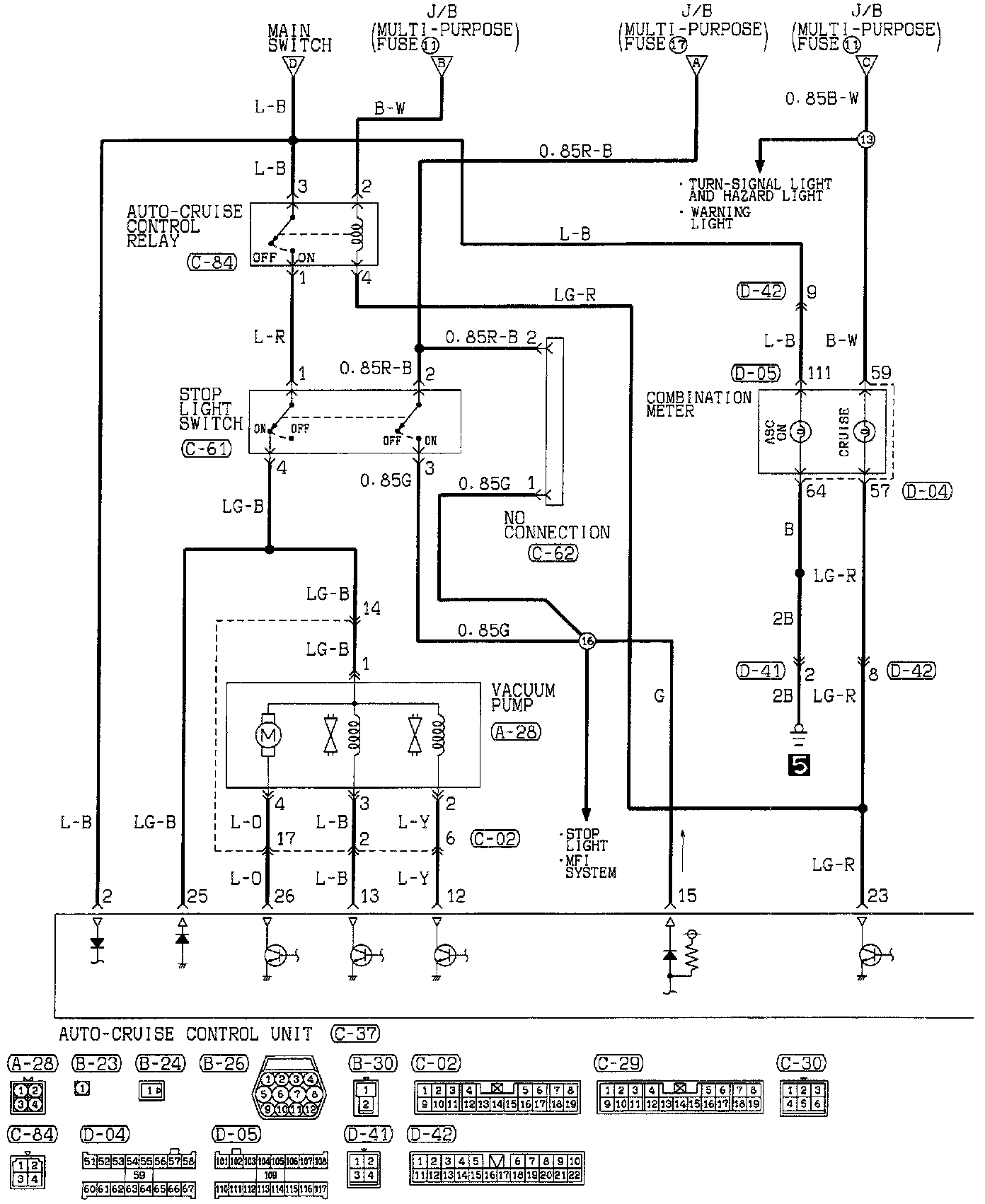

Auto-Cruise Control System (Part 3 of 4):
Auto-Cruise Control Unit
Auto-Cruise Control Relay
Combination Meter
Stop Light Switch
Vacuum Pump

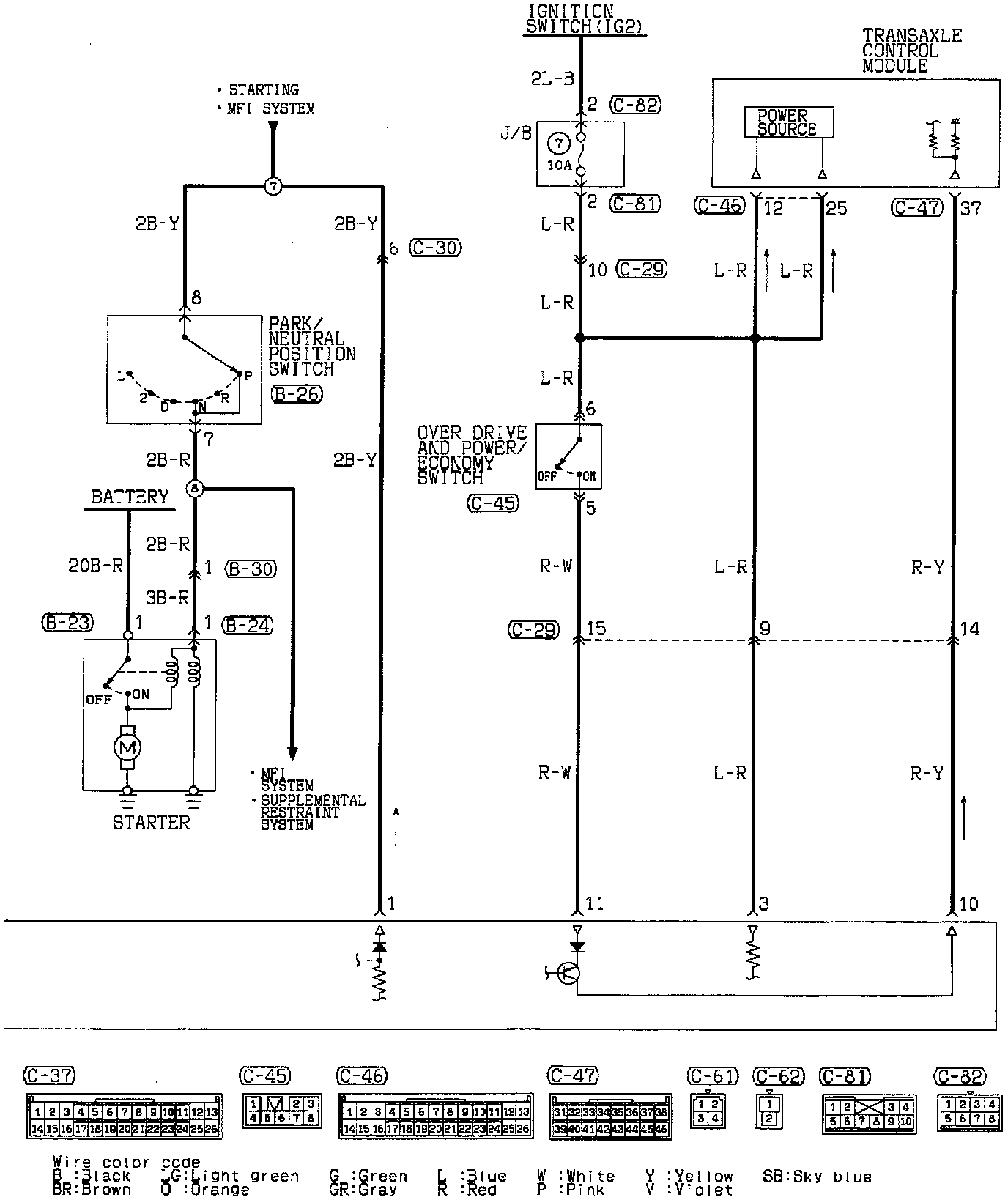

Auto-Cruise Control System (Part 4 of 4):
Auto-Cruise Control Unit
J/B
Over Drive and Power/Economy Switch
Park/Neutral Position Switch
Starter
Transaxle Control Module
- Power Source
