Parking Brake Lever: Service and Repair

REMOVAL
Pre-removal Operation:
- Front and Rear Console Removal.

CAUTION: Supplemental Restraint System (SRS) When installing or removing the floor console, don't allow any impact or shock to the SRS-Electronic Control Unit (ECU).

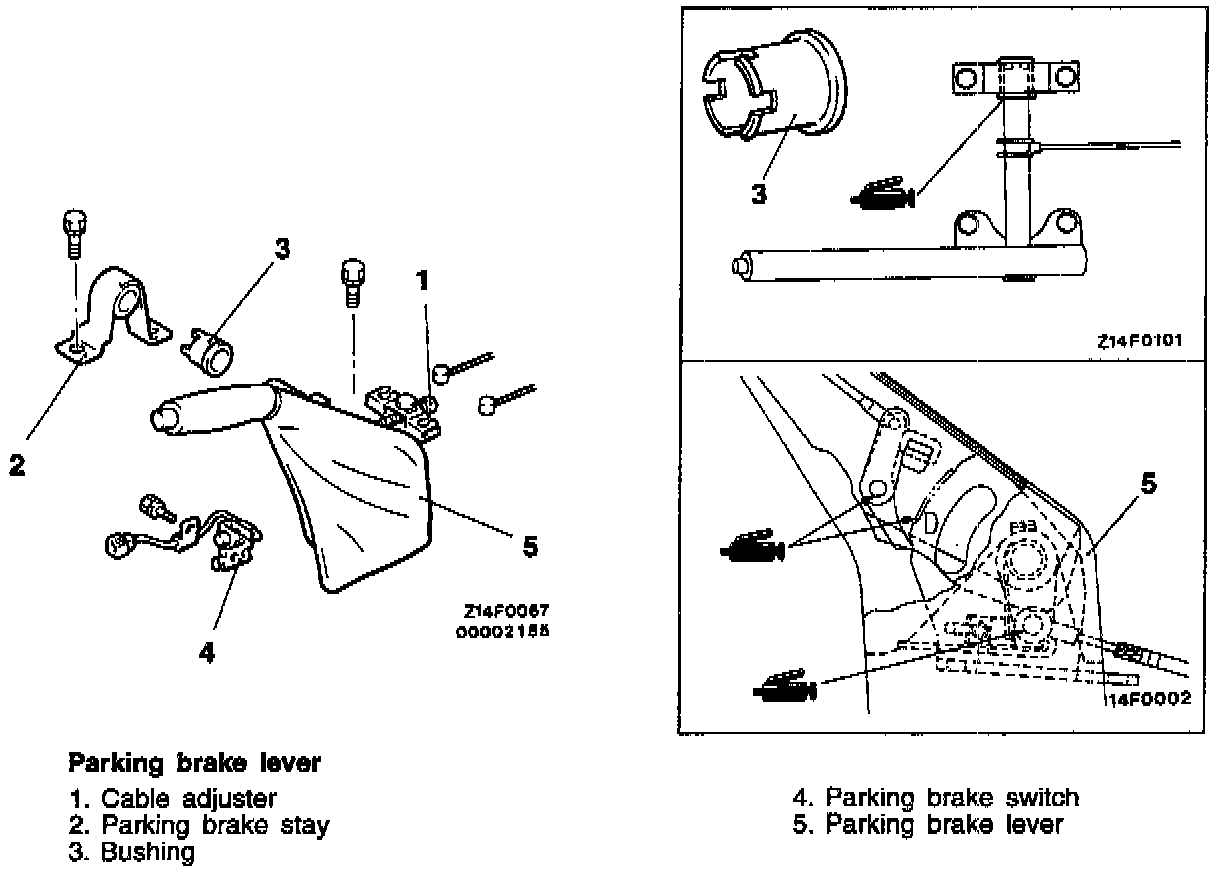

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation:
- Parking Brake Lever Stroke Adjustment.
- Front and Rear Console Installation.
