Parking Brake Cable: Service and Repair

REMOVAL
Pre-removal Operation:
- Front and Rear Console Removal.

CAUTION: Supplemental Restraint System (SRS) When installing or removing the floor console, don't allow any impact or shock to the SRS-Electronic Control Unit (ECU).

Removal Service Point

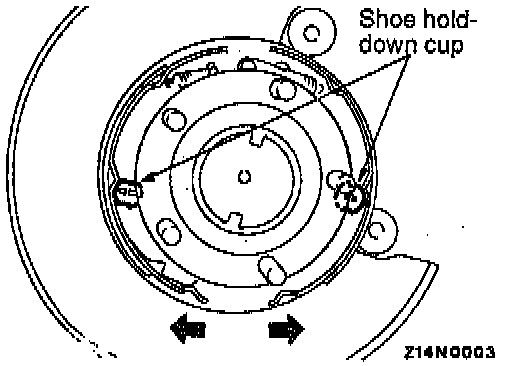

Shoe Hold-Down Cup Removal.
Expand the shoe & lining assembly and remove the shoe hold-down cup

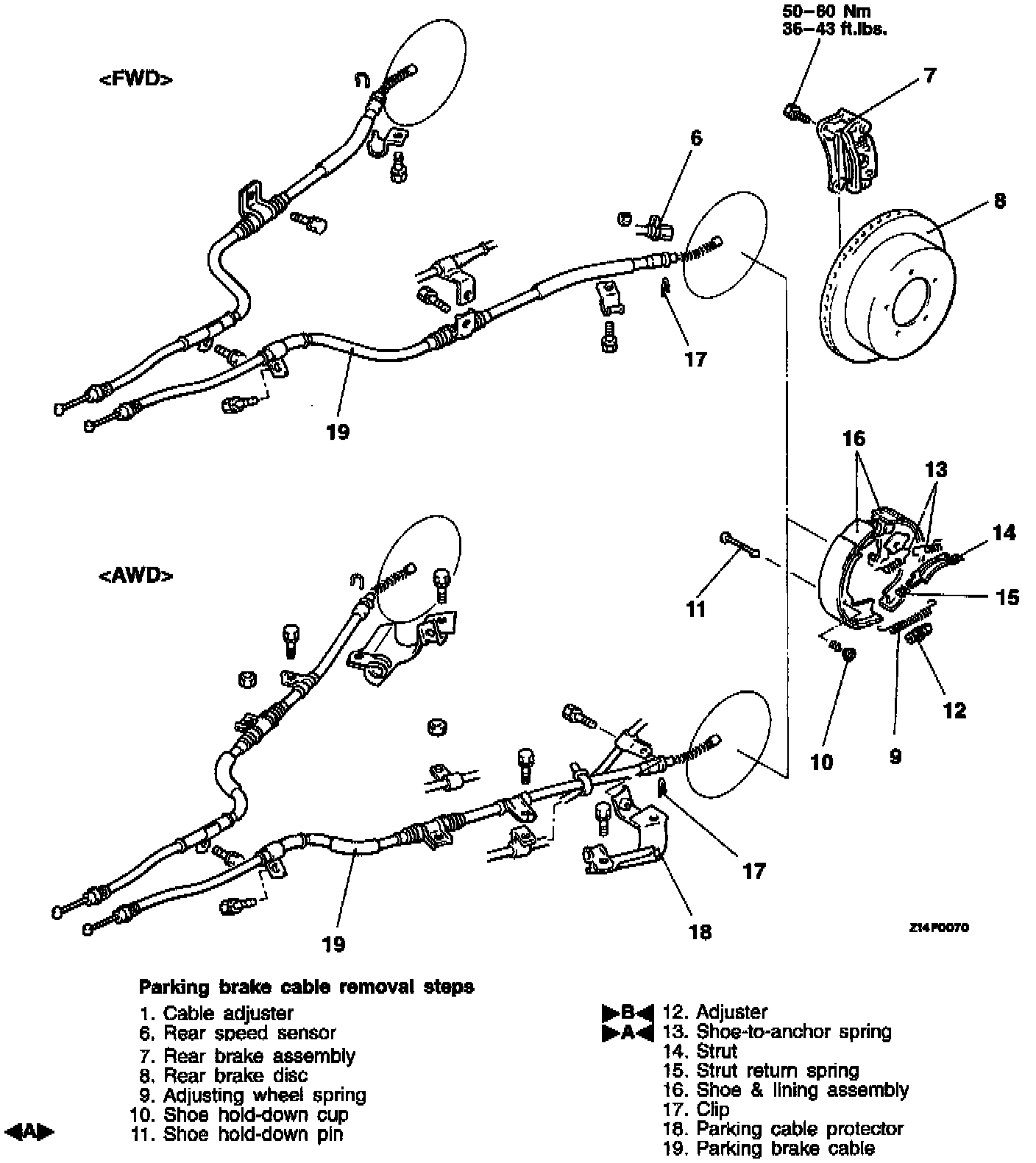

Follow removal steps outlined in illustration.

NOTE: The figure shows the left wheel; for the right wheel, the position in symmetrical.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points

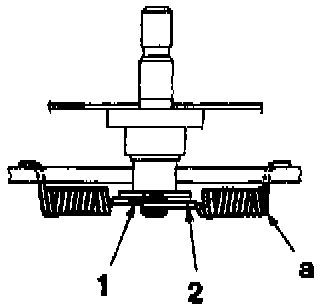

>A< Shoe To Anchor Spring Installation.
The shoe-to-anchor spring must be installed in the sequence shown in the illustration.

CAUTION: Each shoe-to-anchor spring has a unique spring load and the spring "a" is painted to prevent erroneous installation.

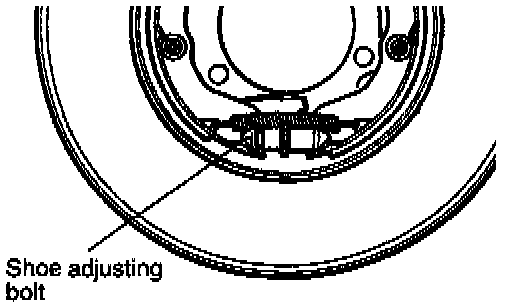

>B< Adjuster Installation.
Install the adjuster facing the left adjusting bolt to the vehicle front and right adjusting bolt to the vehicle rear.

Post-installation Operation:
- Parking Brake Lever Stroke Adjustment.
- Front and Rear Console Installation.
