Power Steering Line/Hose: Service and Repair

Pre-removal Operation
1. Drain power steering fluid.

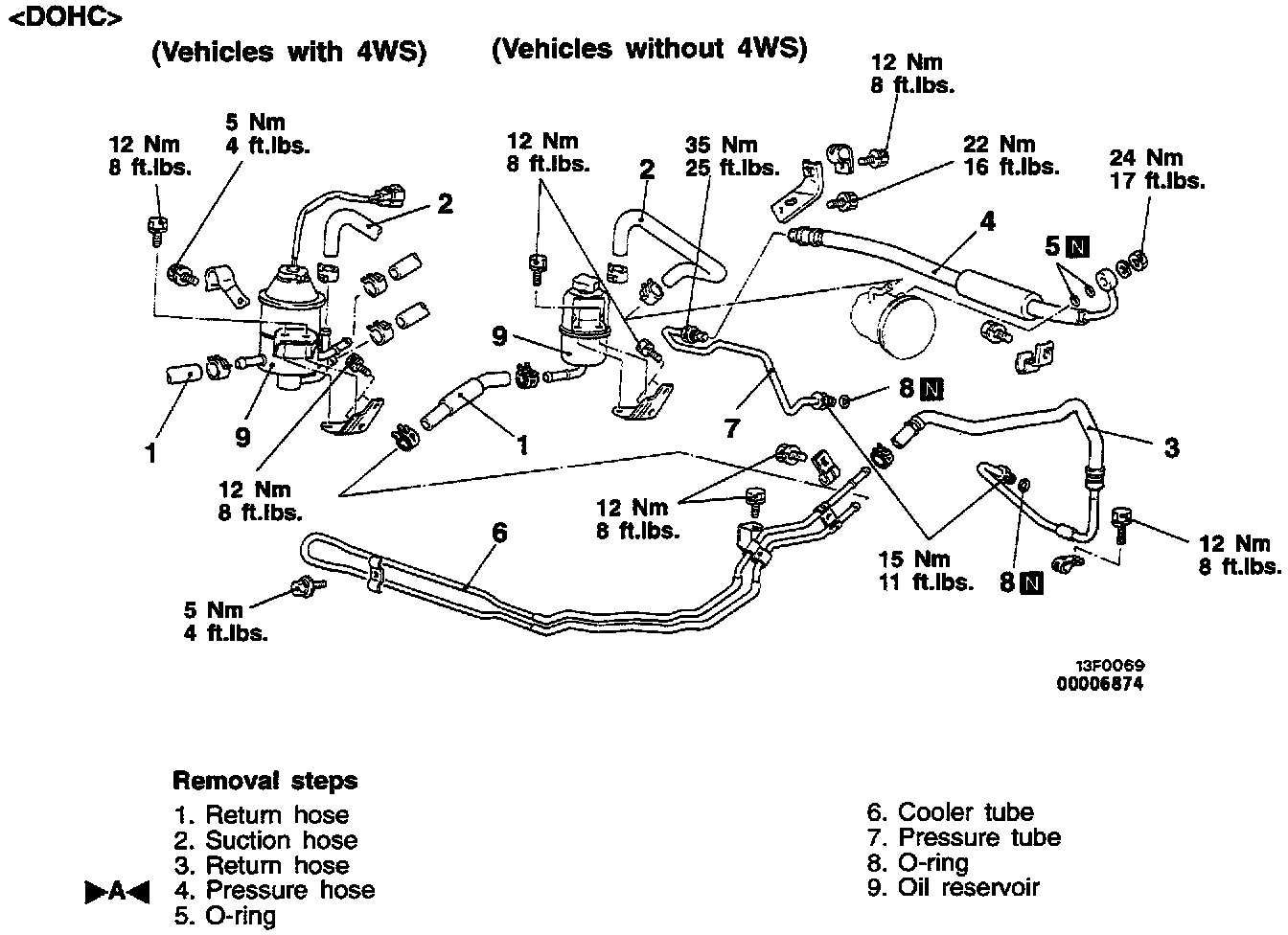

2. Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points





]A[ Pressure Hose Installation (4)

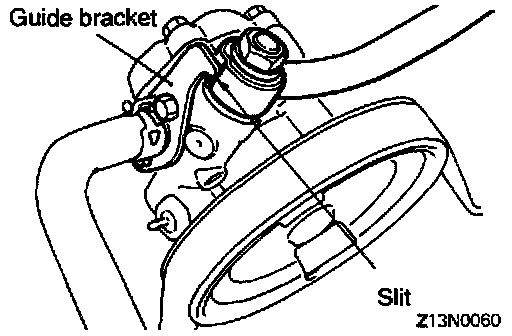

1. Connect the pressure hose so that its slit part contacts the oil pump's guide bracket.





2. When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.

Post-installation Operation
1. Fill power steering fluid.
2. Bleed power steering fluid line. Service and Repair
