Drive Belt: Service and Repair

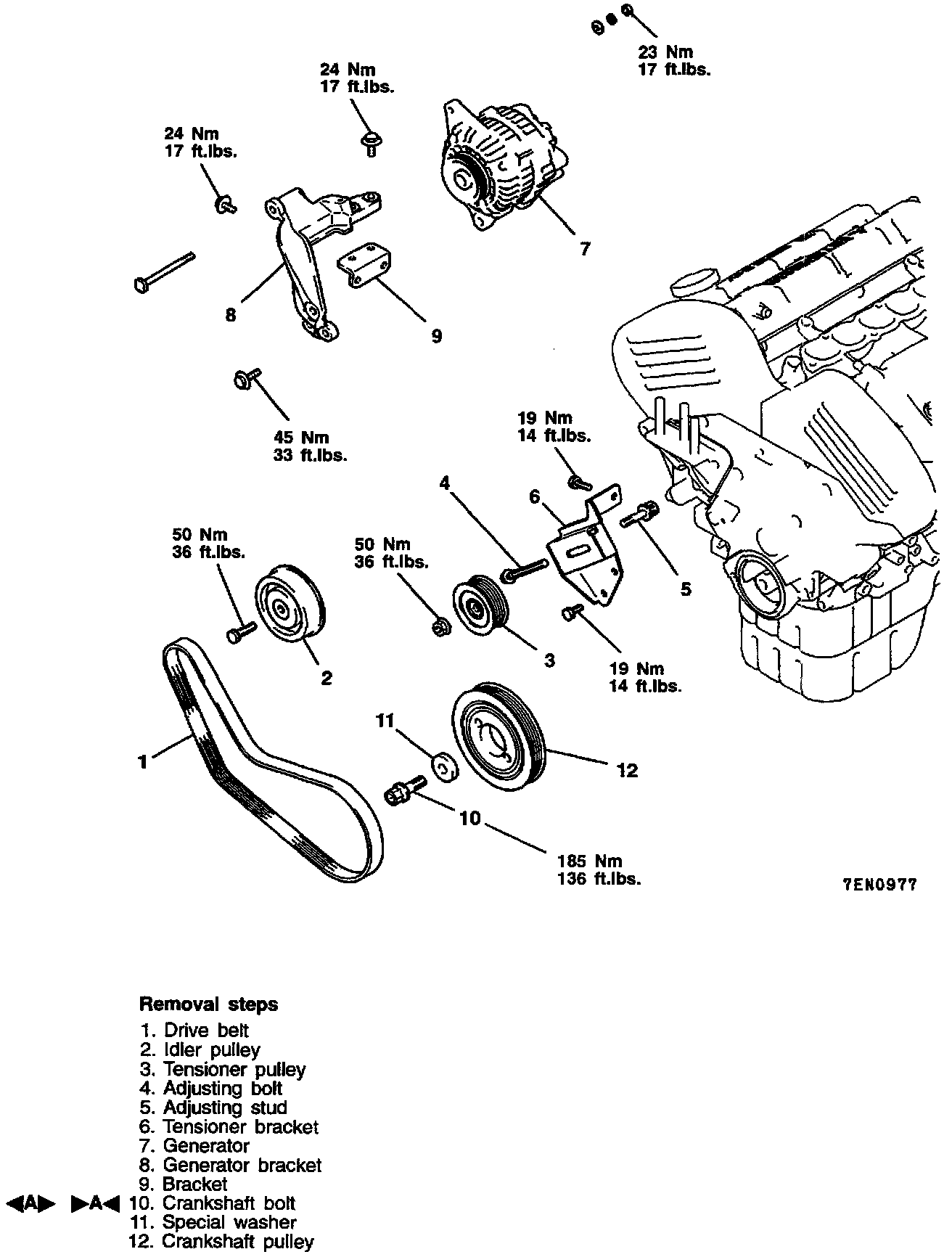

GENERATOR AND DRIVE BELT





Removal And Installation

REMOVAL SERVICE POINT





[A] Crankshaft Bolt Loosening
(1) Using the special tool, hold the drive plate or flywheel.
(2) Remove the crankshaft bolt.

INSTALLATION SERVICE POINT





]A[ Crankshaft Bolt Tightening
(1) Using the special tool, hold the drive plate or flywheel.
(2) Install the crankshaft bolt.
