Blower Motor Resistor: Testing and Inspection

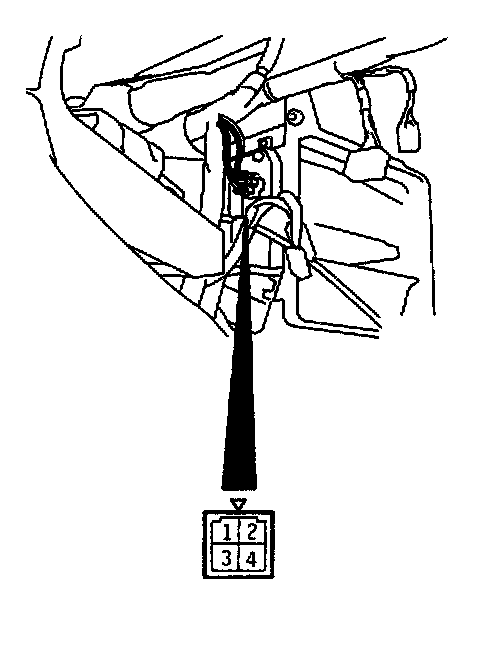

Using a circuit tester, measure the resistance between the terminals indicated.
The condition can be considered satisfactory if the value measured at this time is equivalent to the standard value.

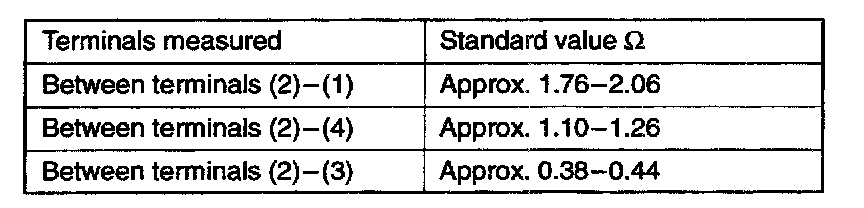

Standard value
