Actuator Testing and Reference Tables

The following actuators can be force-driven by use of the scan tool.

NOTE:
1) Actuator test cannot be made when ABS-Electronic Control Unit (ECU) is not functioning.
2) Actuator test can be carried out only when the vehicle is not running. If the vehicle speed reaches 10 km/h (6 mph) while the actuator is force-driven, force driving is discontinued.

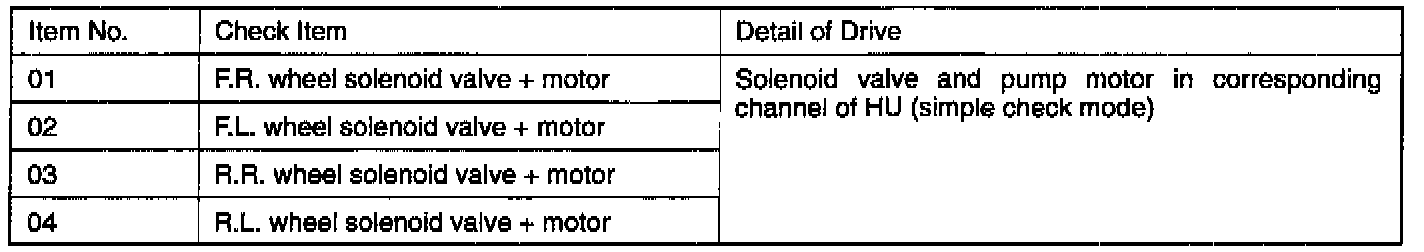

Actuator Test Specifications

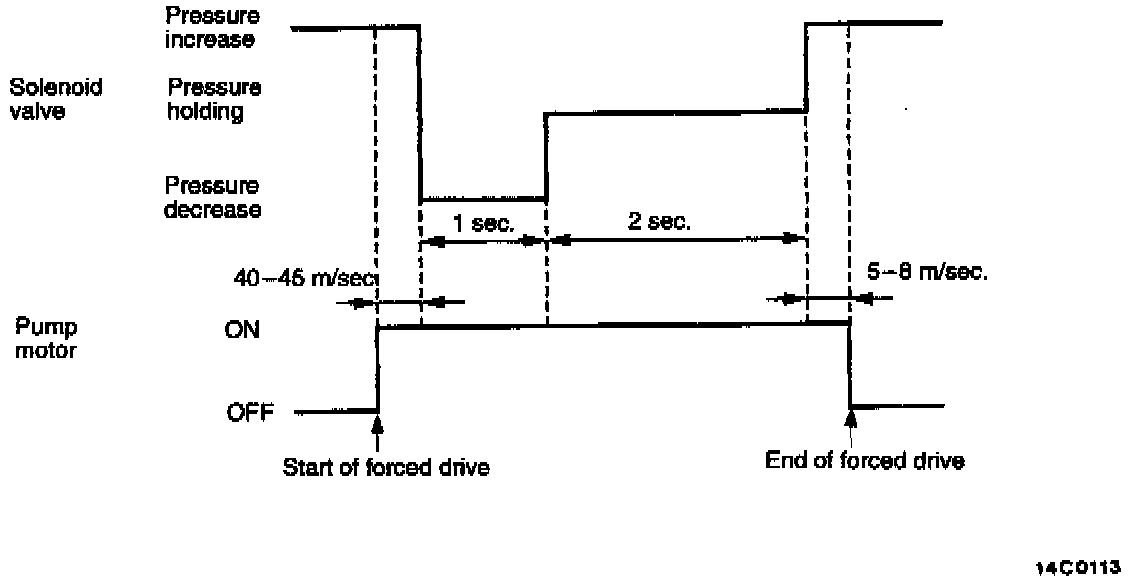

Drive Pattern
