Short Circuit Check

Foreword
A circuit consists of the power supply, switch, relay, load, ground, etc. There are various methods to check a circuit including an overall check, voltage check, short circuit check and continuity check.

Short-Circuit Check:

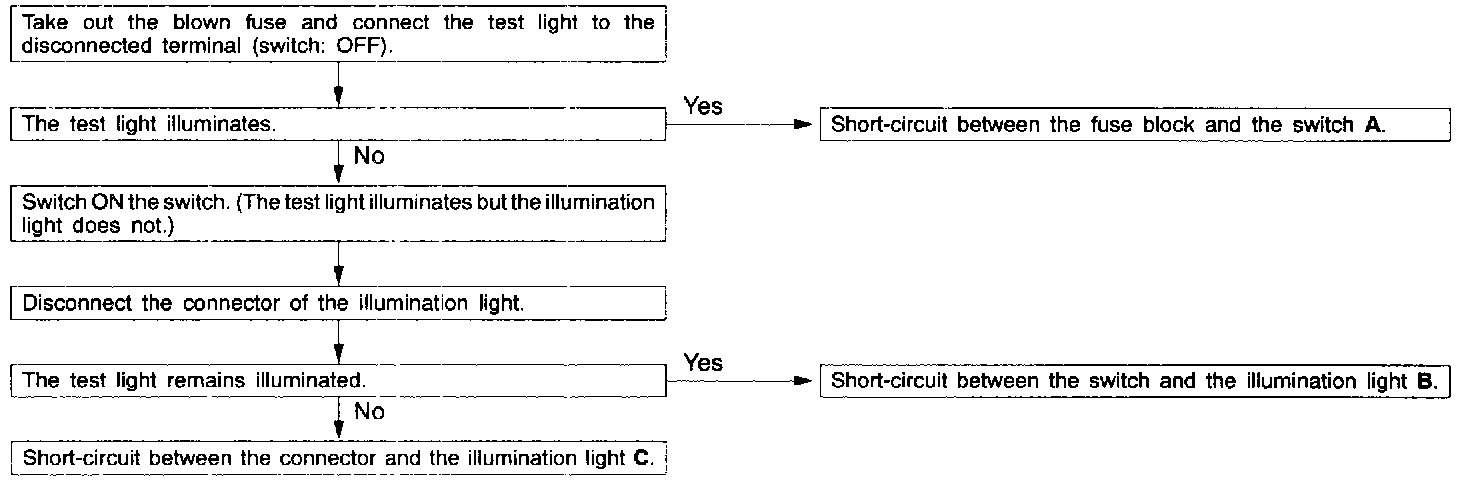

Short-Circuits Check is briefly described as below
Because the fuse has blown. It is probable that there is a short-circuited circuit. Follow the procedures above to narrow down the short-circuit location.

Short-Circuit Check:

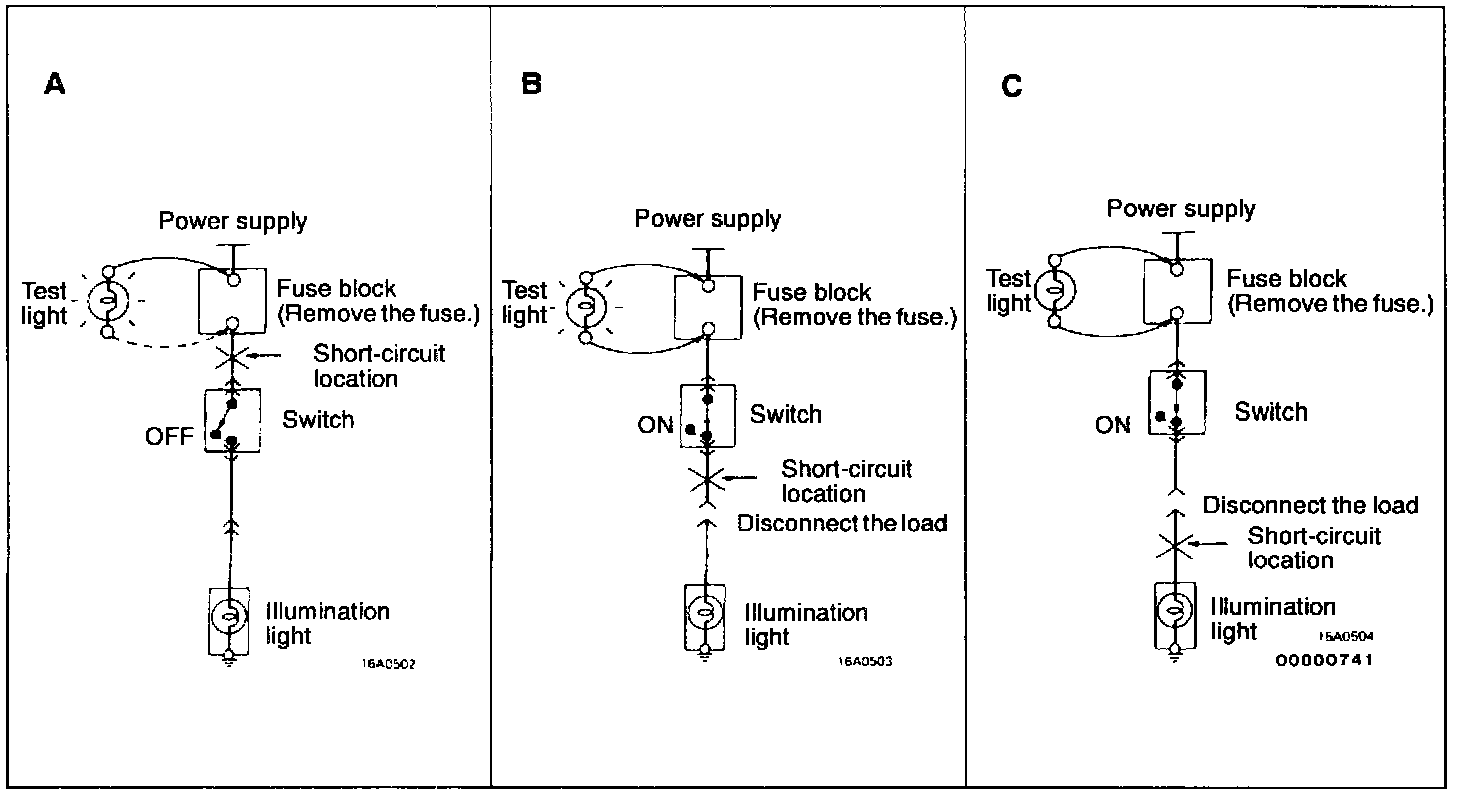

Figure A, B and C
