Axle Shaft - Revised Assembly Procedures
NO.: TSB-97-26-004DATE: August, 1997
MODEL: 1997 Mirage
SUBJECT:
REVISED DRIVE SHAFT DISASSEMBLY AND REASSEMBLY PROCEDURES (MIRAGE) - SERVICE MANUAL REVISION
[TSB REVISION TSB-97-26 004]
PURPOSE
This bulletin contains revised procedures for disassembly and reassembly of the 1997 Mirage drive shaft. An additional shim on the hub end of the drive shaft was introduced into production effective November 11, 1996. The service manual revision ads this shim.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997 Mirage
AFFECTED SERVICE MANUAL
1997 Mirage Service Manual, Volume 1, Page 26-14
SERVICE MANUAL REVISION

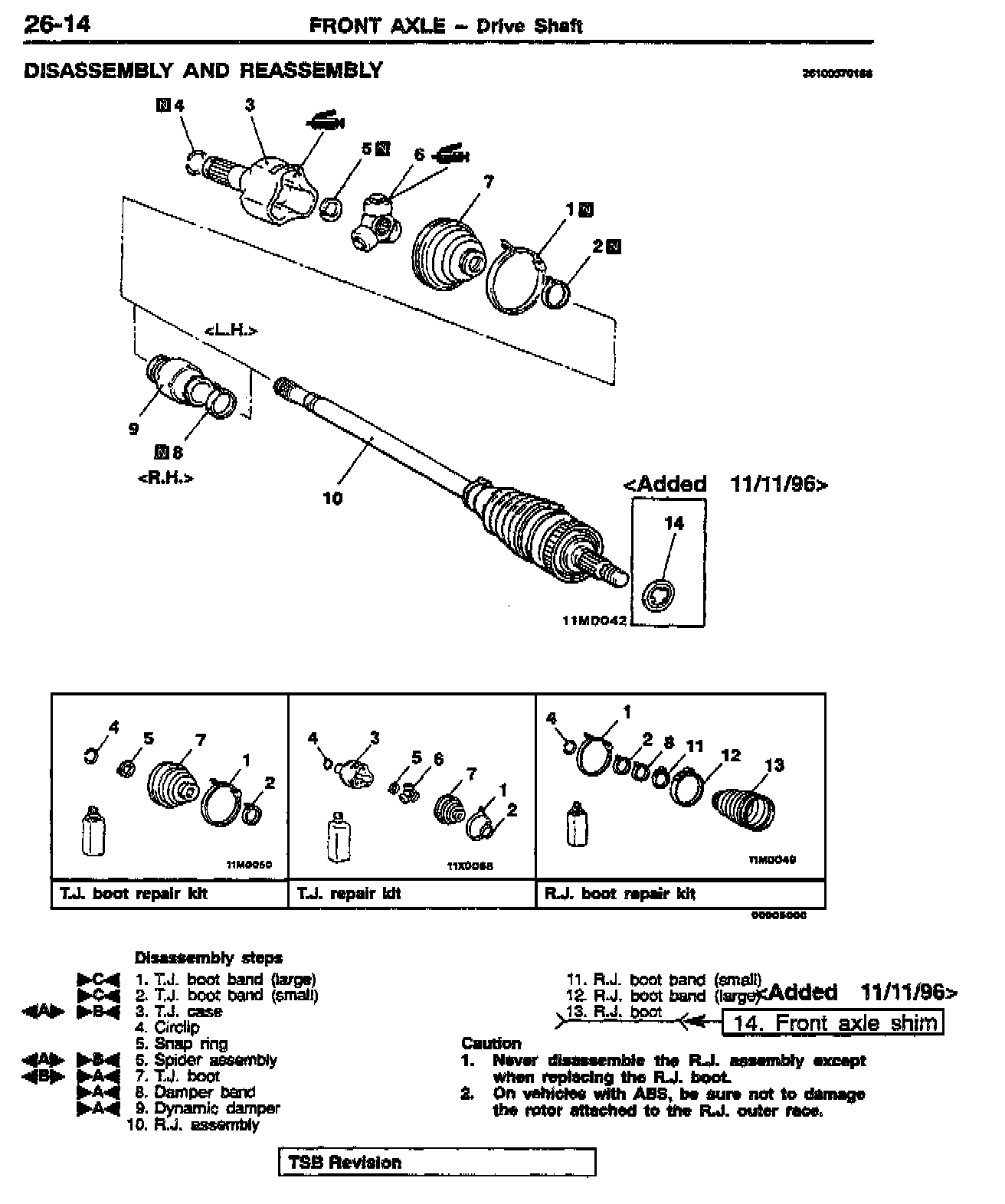

1997 Mirage Service Manual, Volume 1, Page 26-14
Add the new information as shown.
