Alternator Relay: Locations

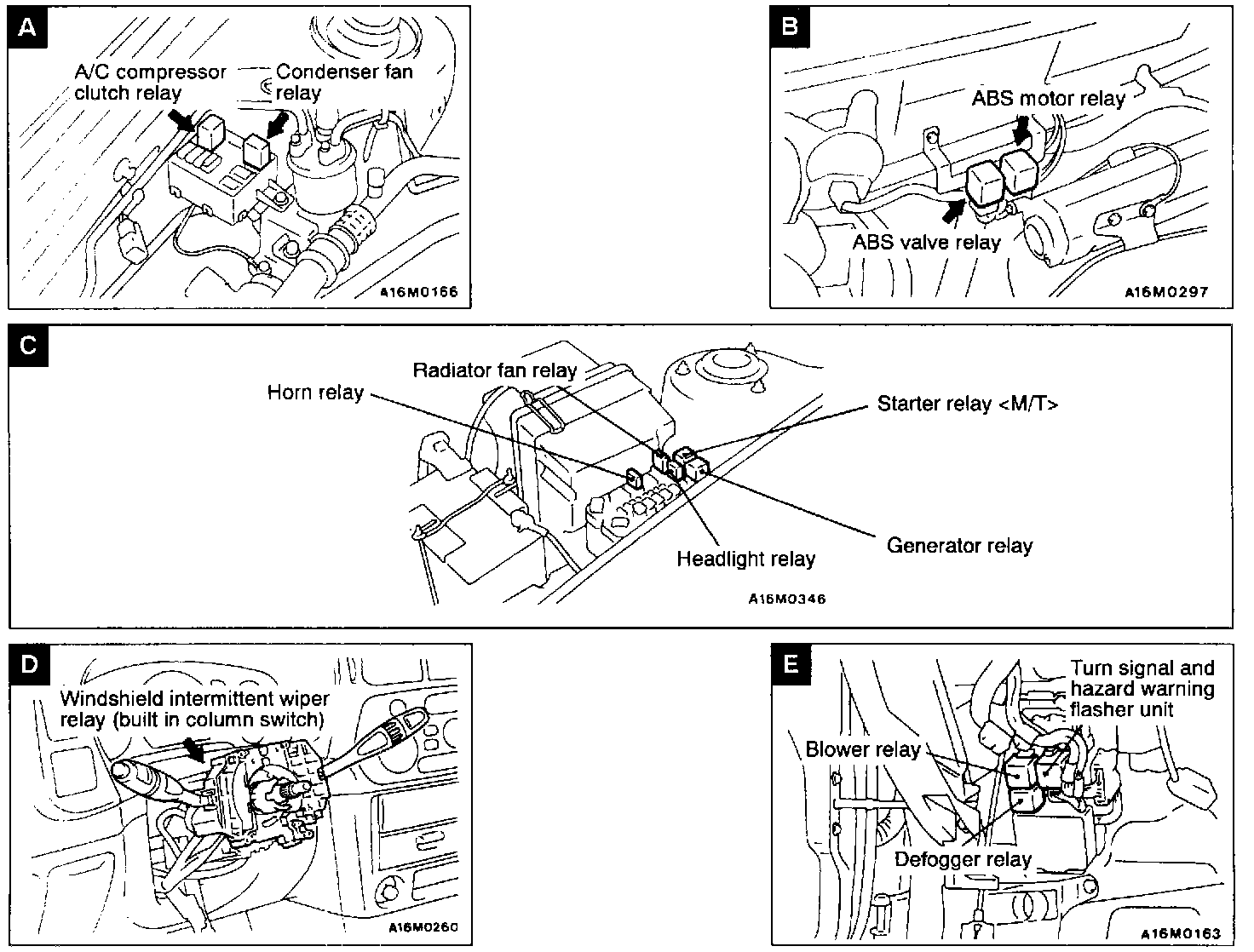

Relay Locations Overall View:




Views A - E:





RELAY VIEW
Generator C
