Electrical Diagrams

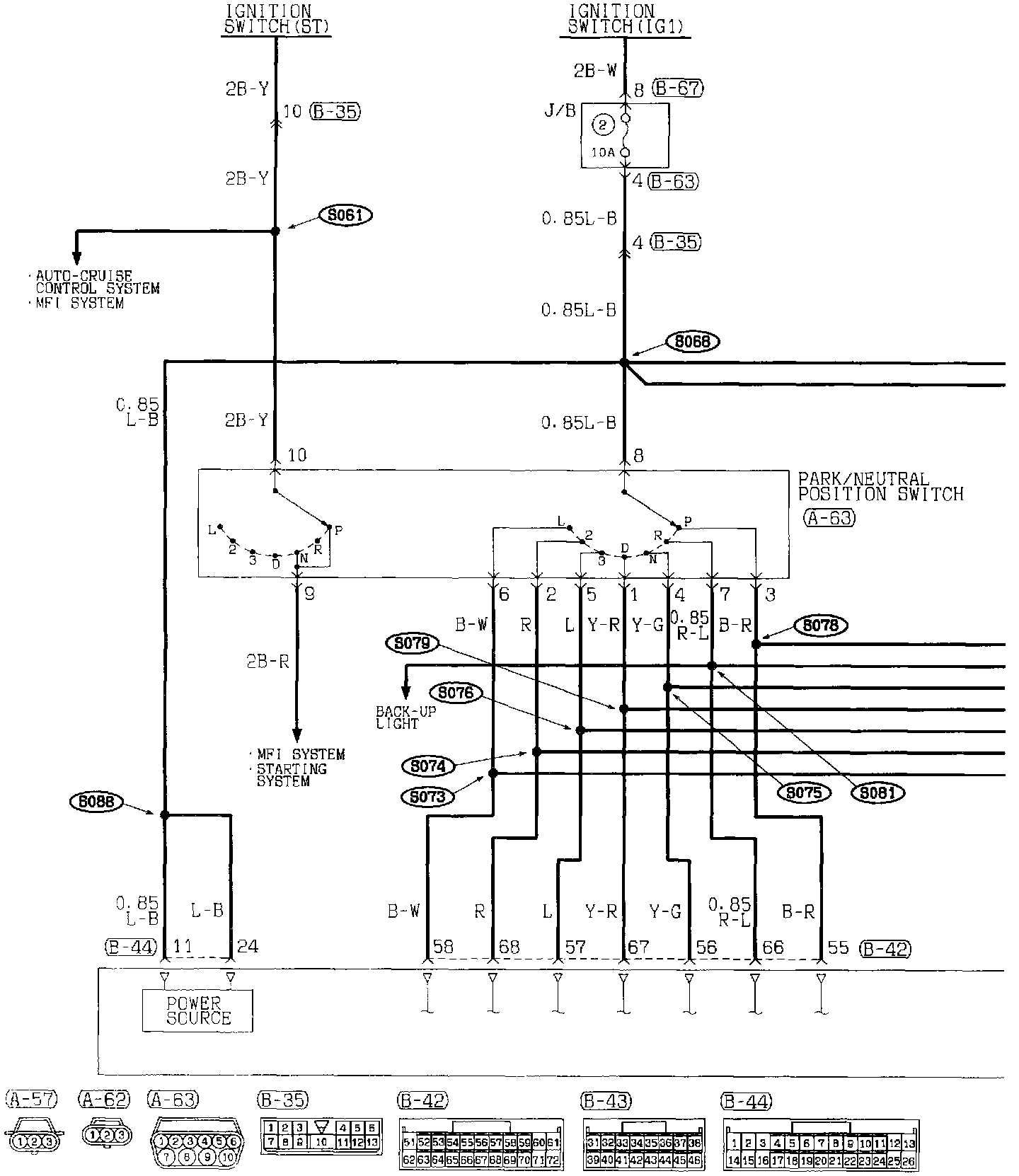

ELC 4-Speed Automatic Transaxle (Part 1 Of 8):
J/B
Park/Neutral Position Switch
Transaxle Control Module (Pin Nos. 11, 24, 58, 68, 67, 56, 66, 55)

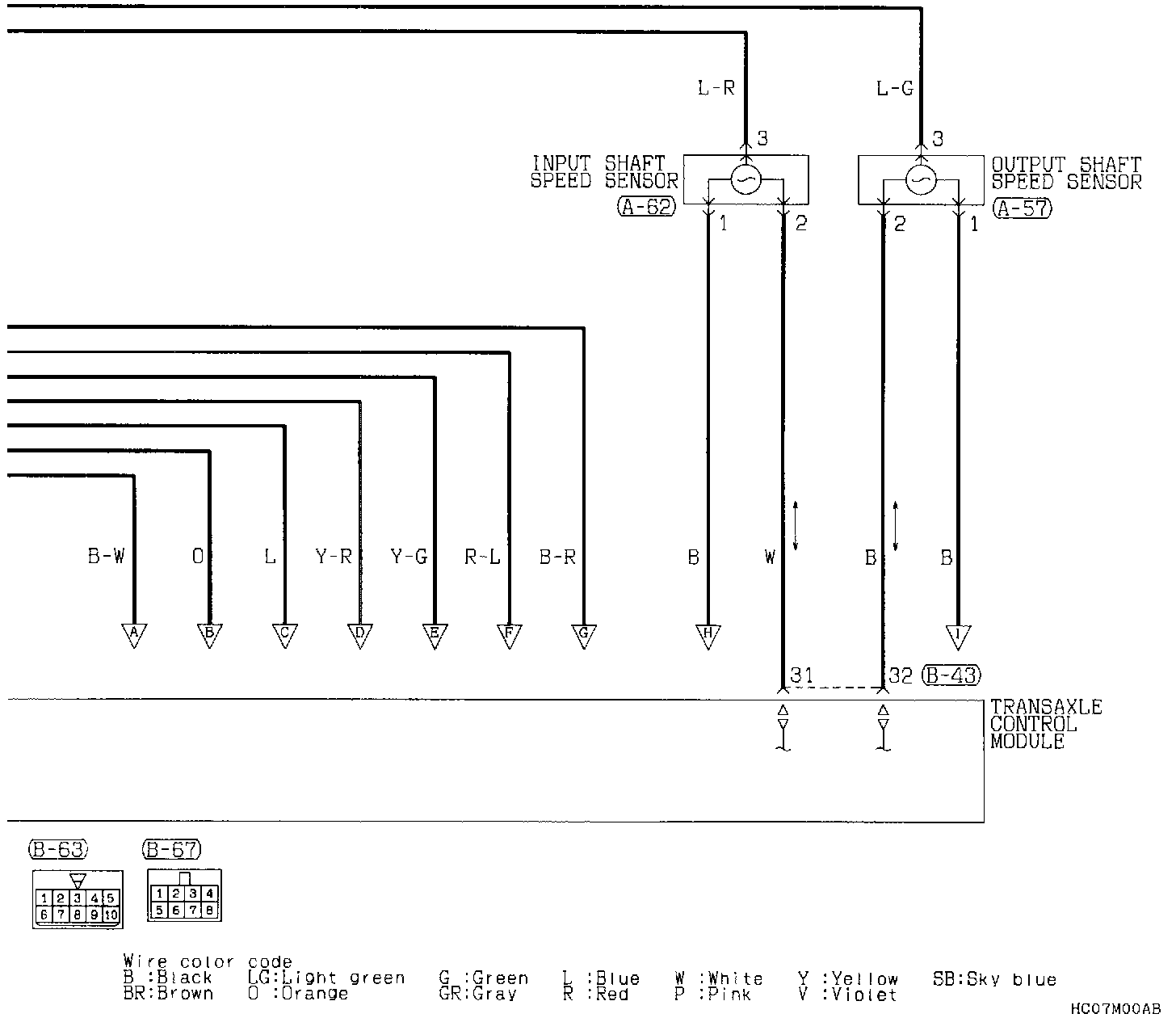

ELC 4-Speed Automatic Transaxle (Part 2 Of 8):
Input and Output Shaft Speed Sensor
Transaxle Control Module (Pin Nos. 31, 32)
ELC 4-Speed Automatic Transaxle (Part 3 Of 8):
Dedicated Fuse
J/B
J/C (5)
Stop Light Switch
Transaxle Control Module

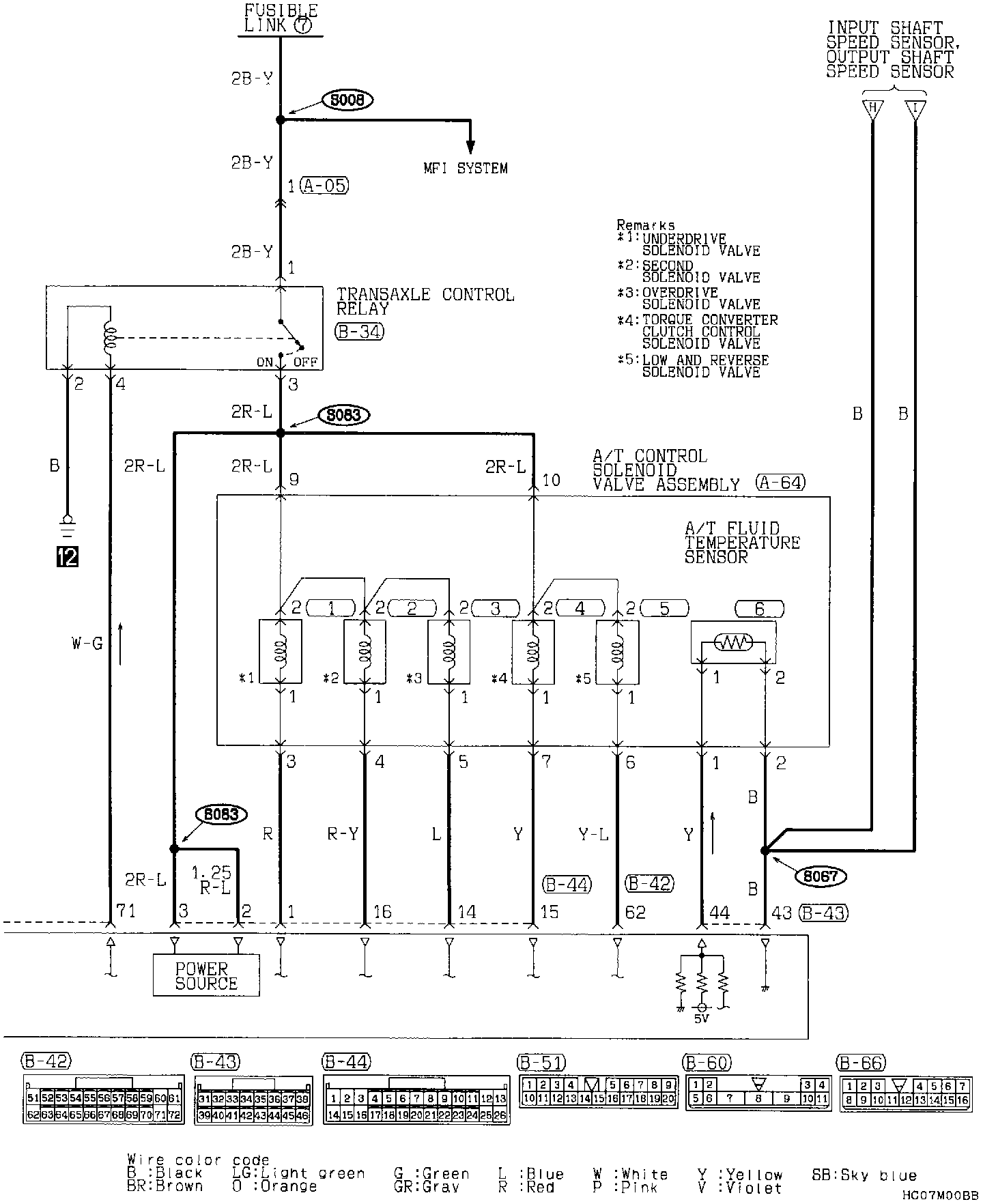

ELC 4-Speed Automatic Transaxle (Part 4 Of 8):
A/T Control Solenoid Valve Assembly
Transaxle Control Relay
Transaxle Control Module (Pin Nos. 1, 2, 3, 14, 15, 16, 43, 44, 62, 71)

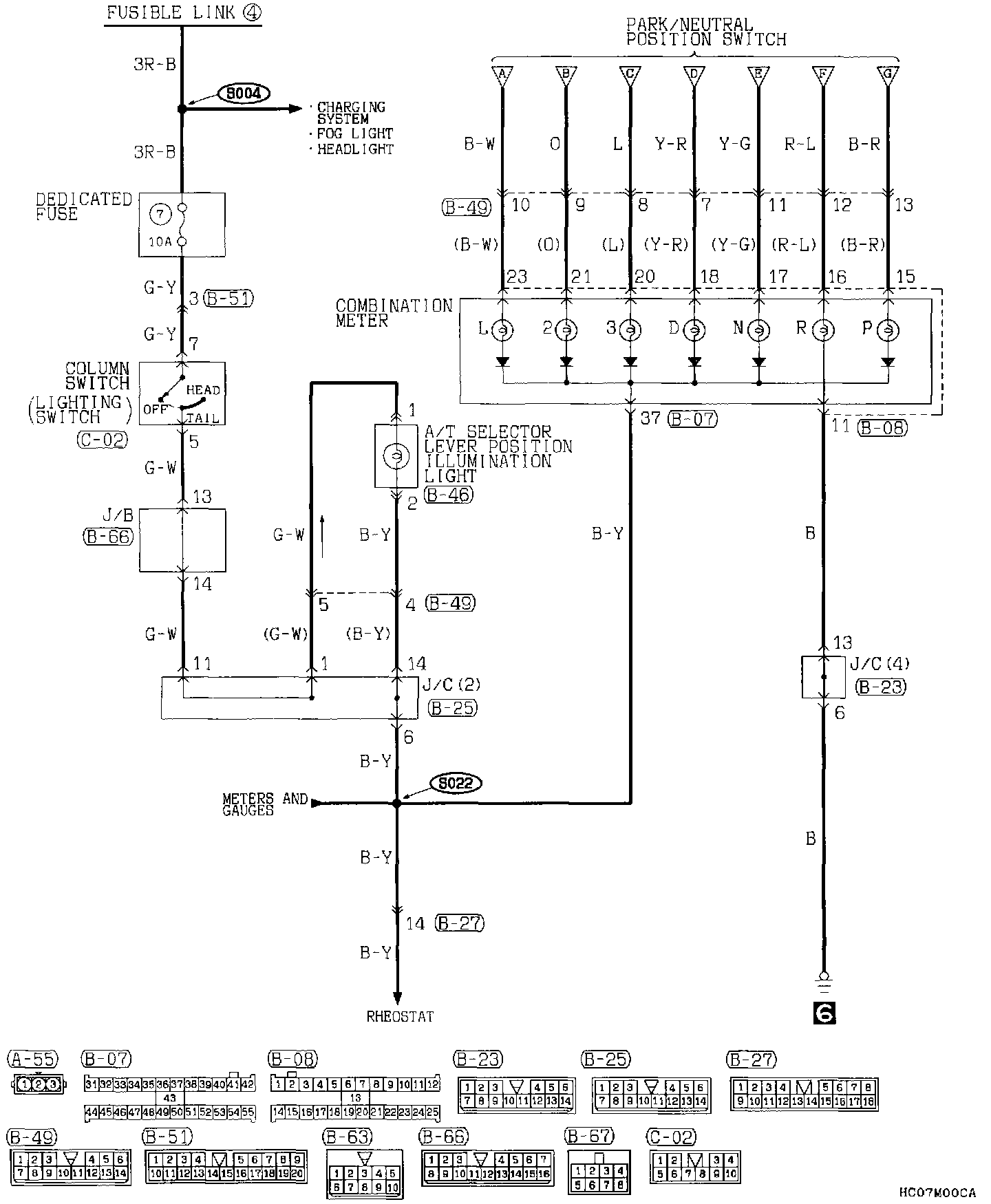

ELC 4-Speed Automatic Transaxle (Part 5 Of 8):
A/T Selector Level Illumination Light
Combination Meter
Column Switch
Dedicated Fuse
J/C (2 & 4)

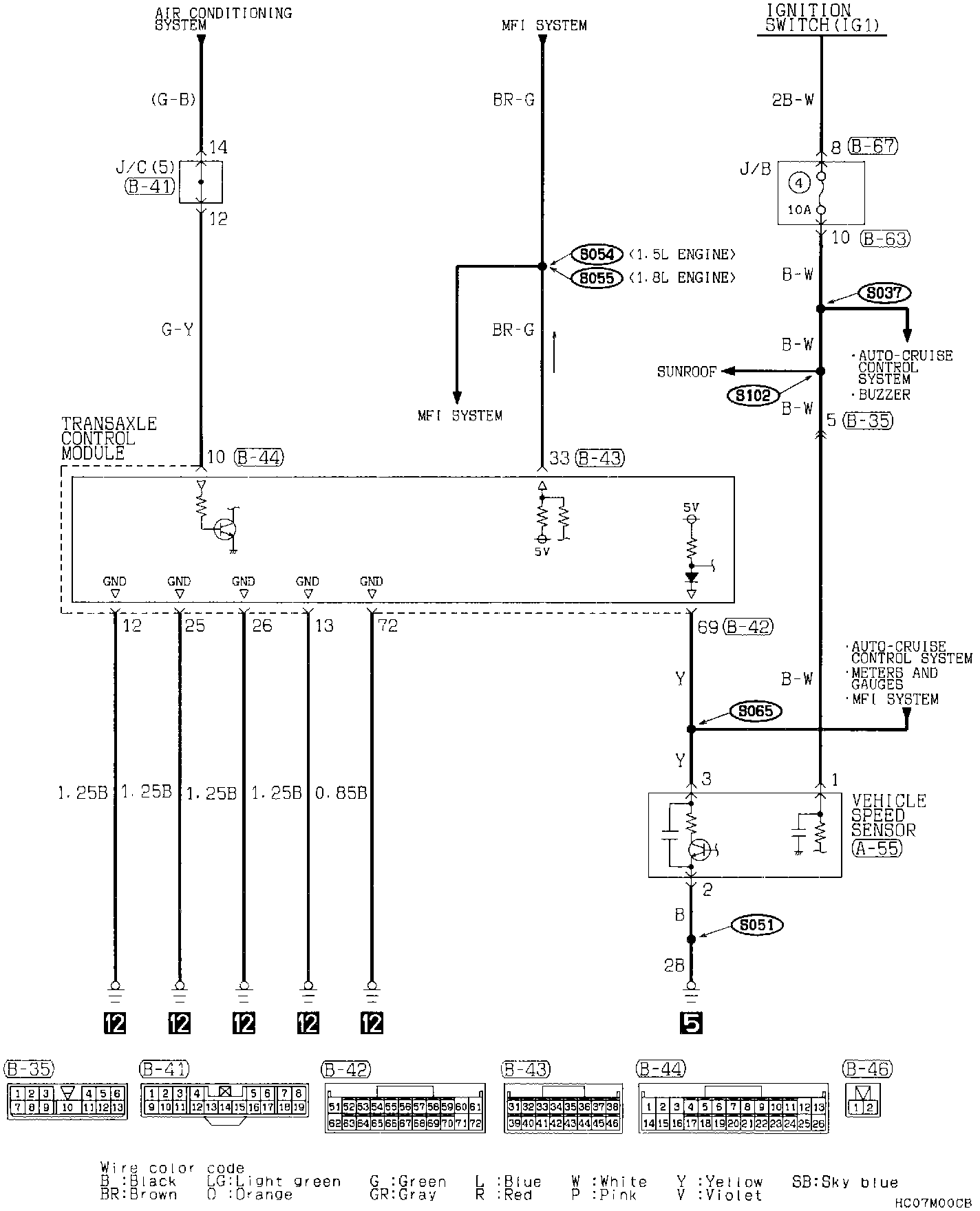

ELC 4-Speed Automatic Transaxle (Part 6 Of 8):
J/B
Transaxle Control Module
Vehicle Speed Sensor

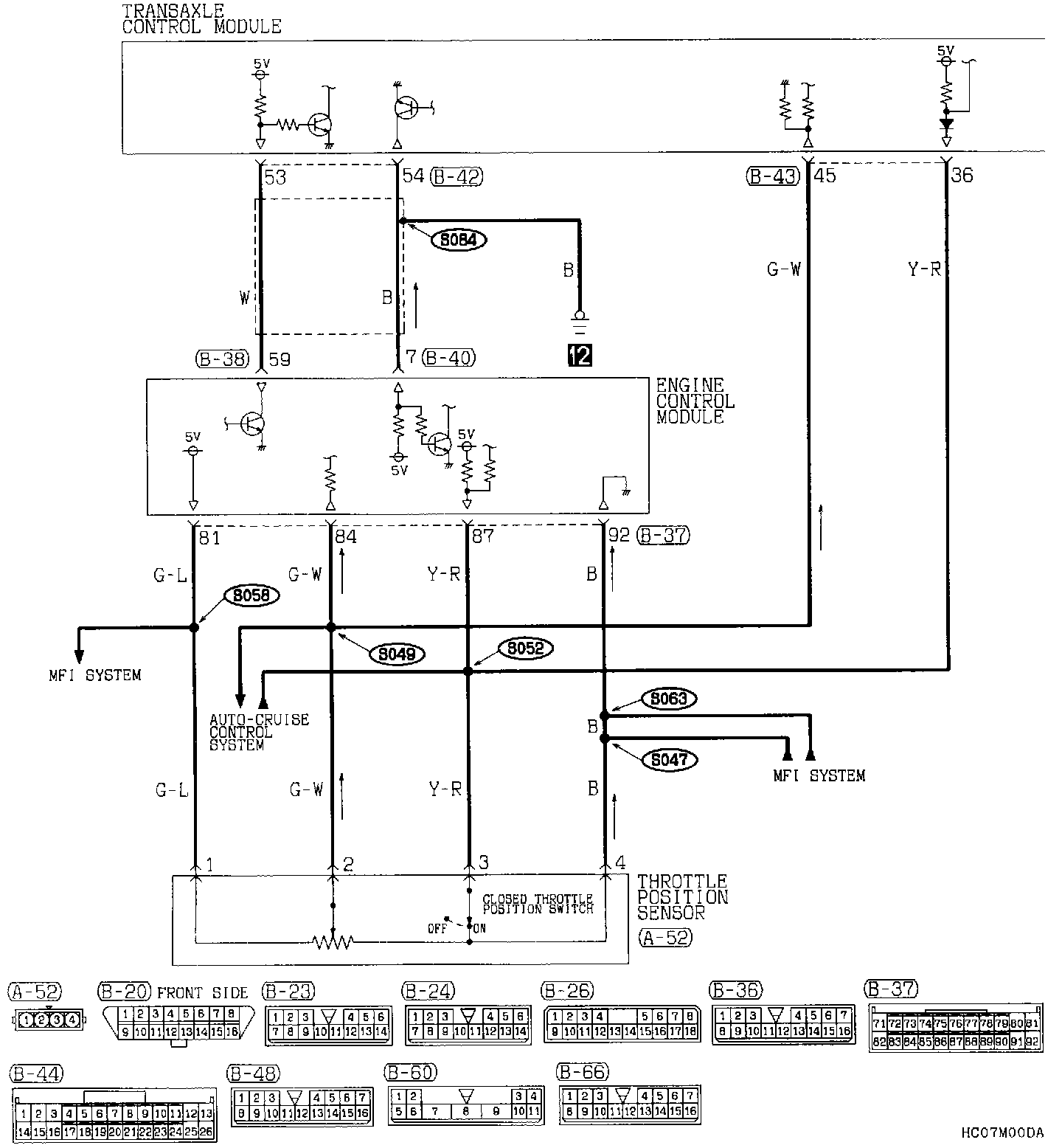

ELC 4-Speed Automatic Transaxle (Part 7 Of 8):
Engine Control Module
Throttle Position Sensor
Transaxle Control Module (Pin Nos. 36, 45, 53, 54)

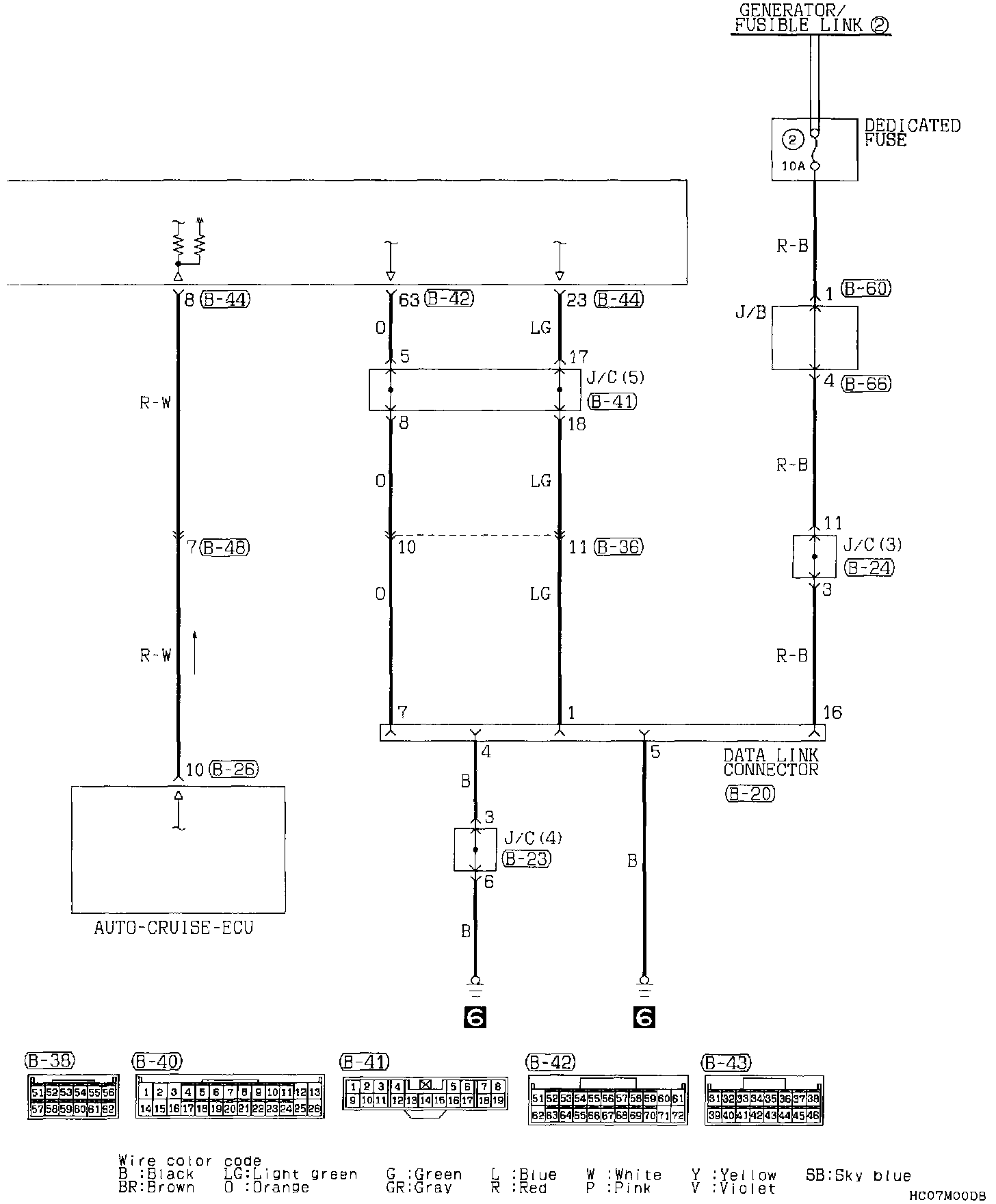

ELC 4-Speed Automatic Transaxle (Part 8 Of 8):
Auto-Cruise ECU
Data Link Connector
Dedicated Fuse
J/B
J/C (3, 4 & 5)
