Inspection

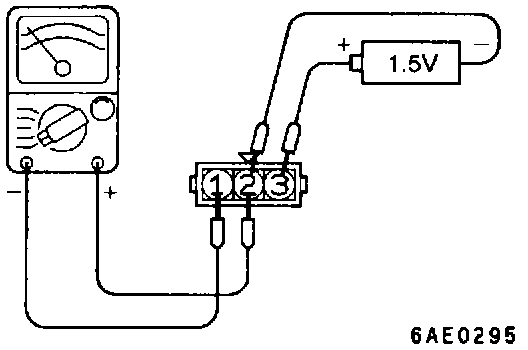

Primary Coil And Ignition Power Transistor Continuity Check:

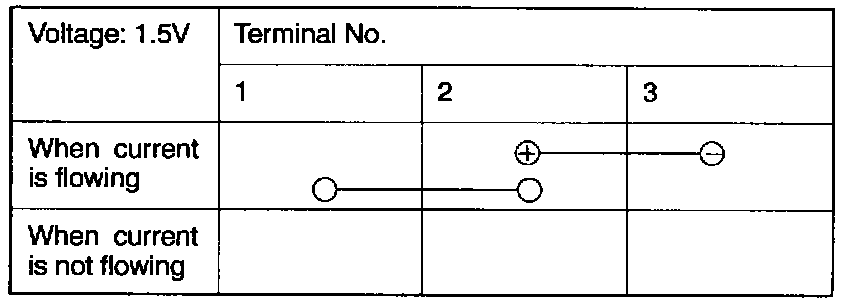

Primary Coil And Ignition Power Transistor Continuity Check - Chart:

NOTE
1. An analog-type ohmmeter should be used.
2. Connect the negative (-) probe of the ohmmeter to terminal 1.

CAUTION : This test must be performed quickly (in less than 10 seconds) to prevent coil from burning and ignition power transistor from breaking.
