Component Tests and General Diagnostics

Ignition Failure Sensor Check:

NOTE: An analog-type ohmmeter should be used.

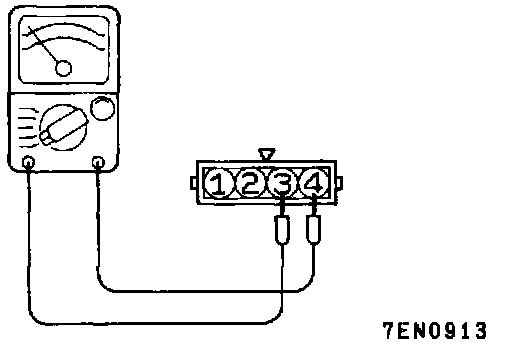

Check that the resistance between terminals 3 and 4 is at the standard value.
Standard value: 0.1 ohms or less
