Ignition Coil - Specification Revision

No.: TSB-97-16-005
DATE: June, 1997
MODEL: 1997 Mirage

SUBJECT:
IGNITION COIL RESISTANCE - SERVICE MANUAL REVISION

[TSB Revision TSB-97-16-005]

PURPOSE
This bulletin corrects ignition coil resistance information in the 1997 Mirage Service Manual, Volume 1.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
1997 Mirage

AFFECTED SERVICE MANUAL
1997 Mirage Service Manual, Volume 1, Pages 16-32 & 16-35

SERVICE MANUAL REVISION

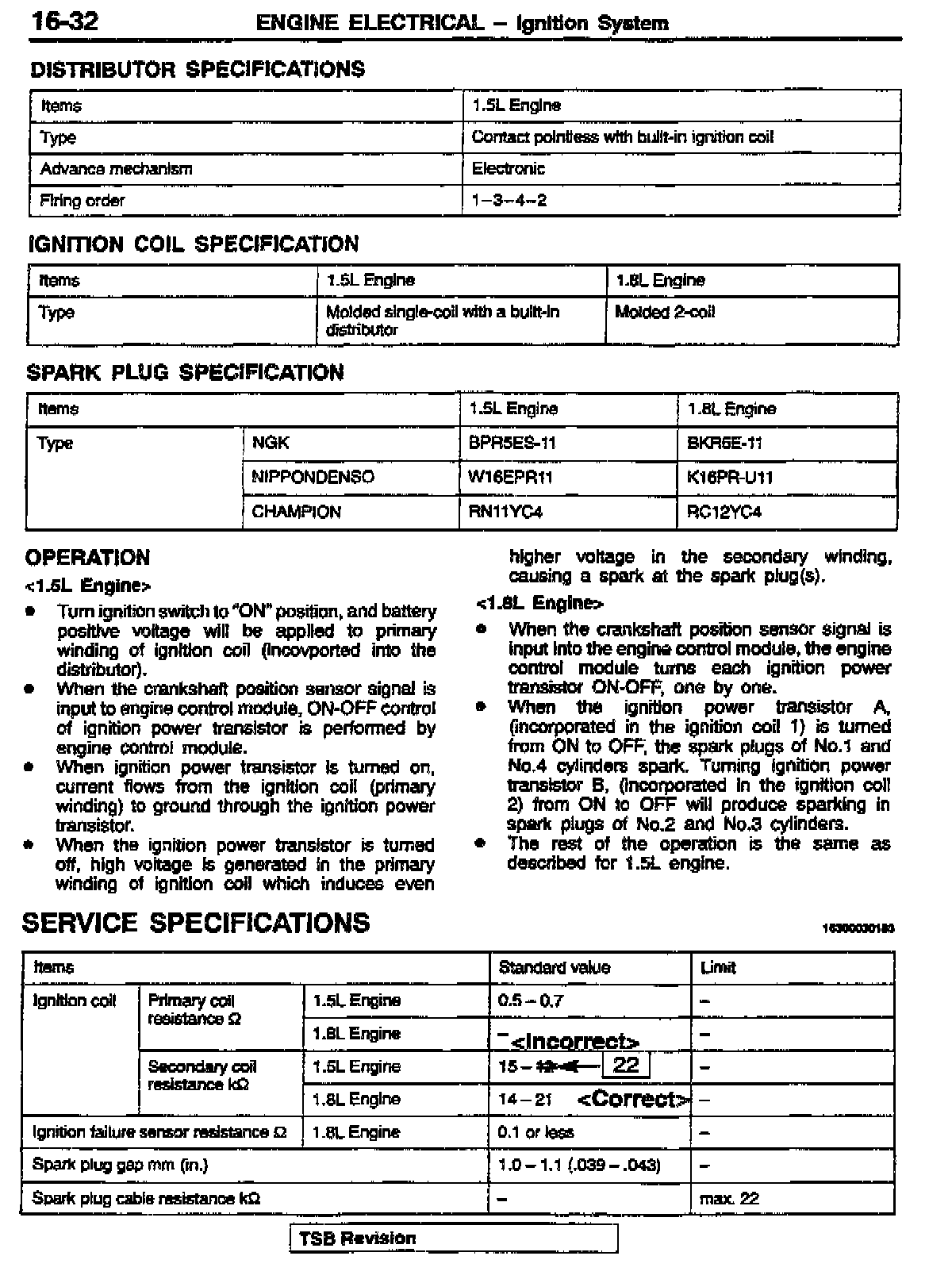

1997 Mirage Service Manual, Volume 1, Page 16-32
Correct the ignition coil resistance maximum standard value as shown.

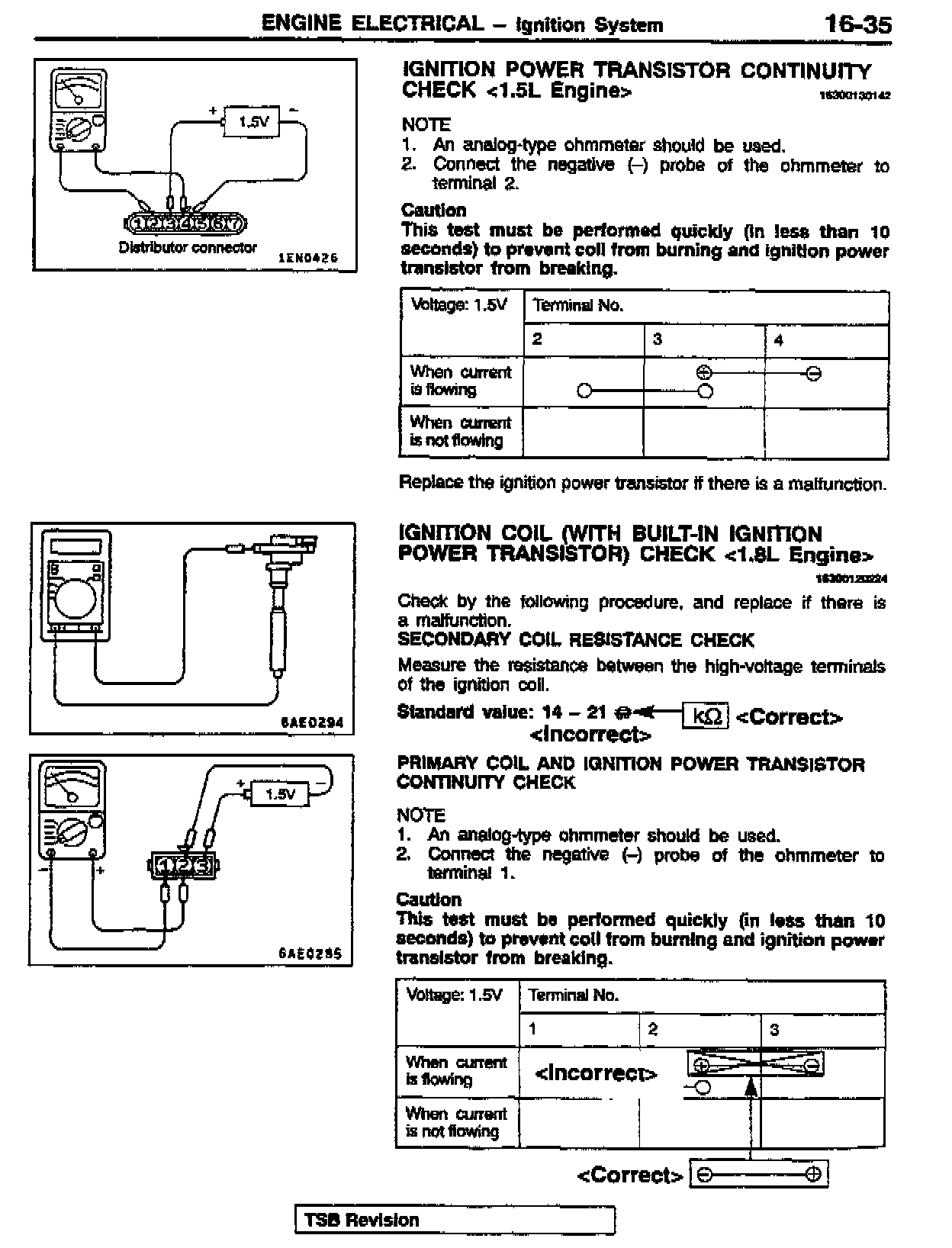

1997 Mirage Service Manual, Volume 1, Page 16-35 Correct the ignition coil resistance information as shown.
