Connector and Ground Indicators

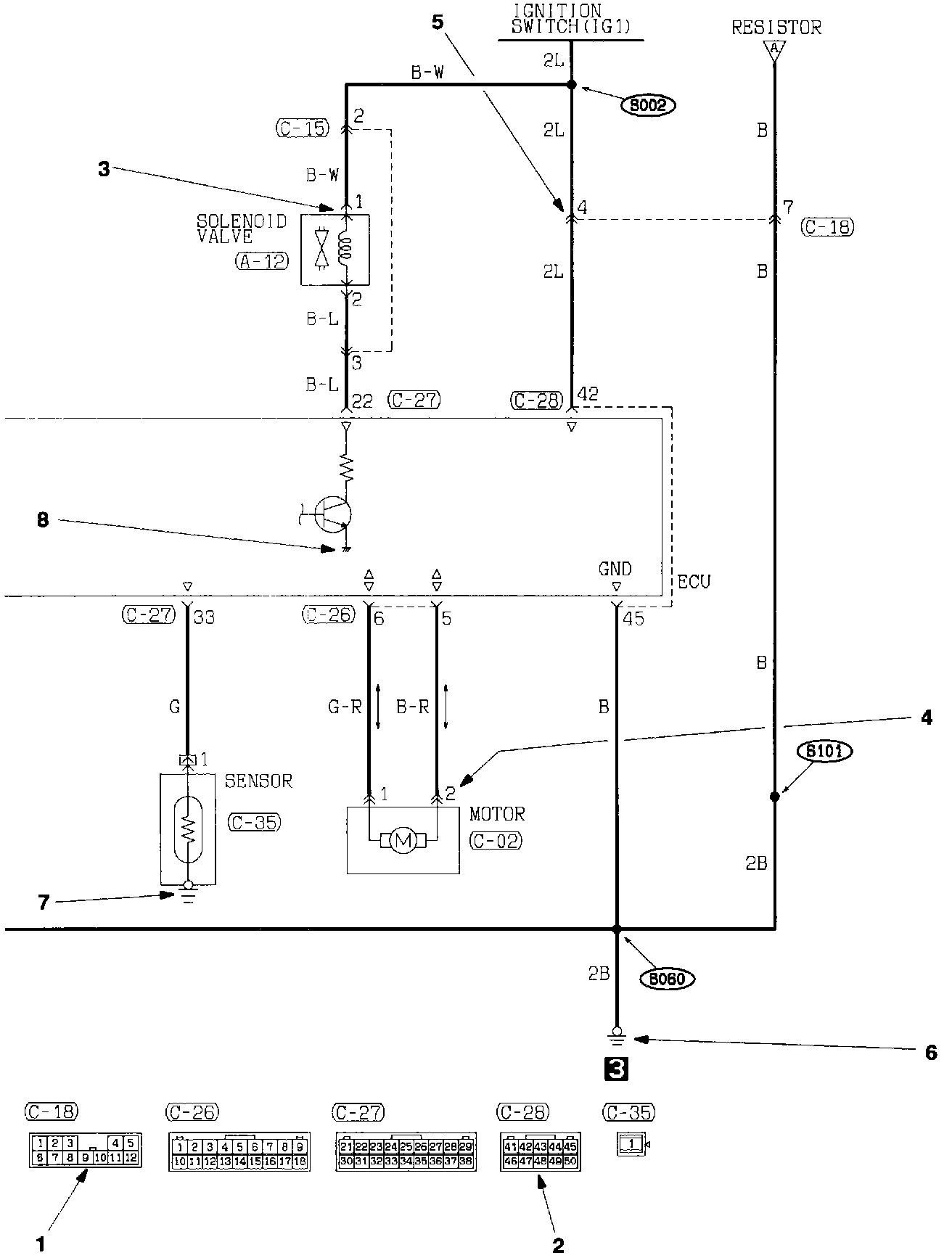

Connector/Grounding Indications:

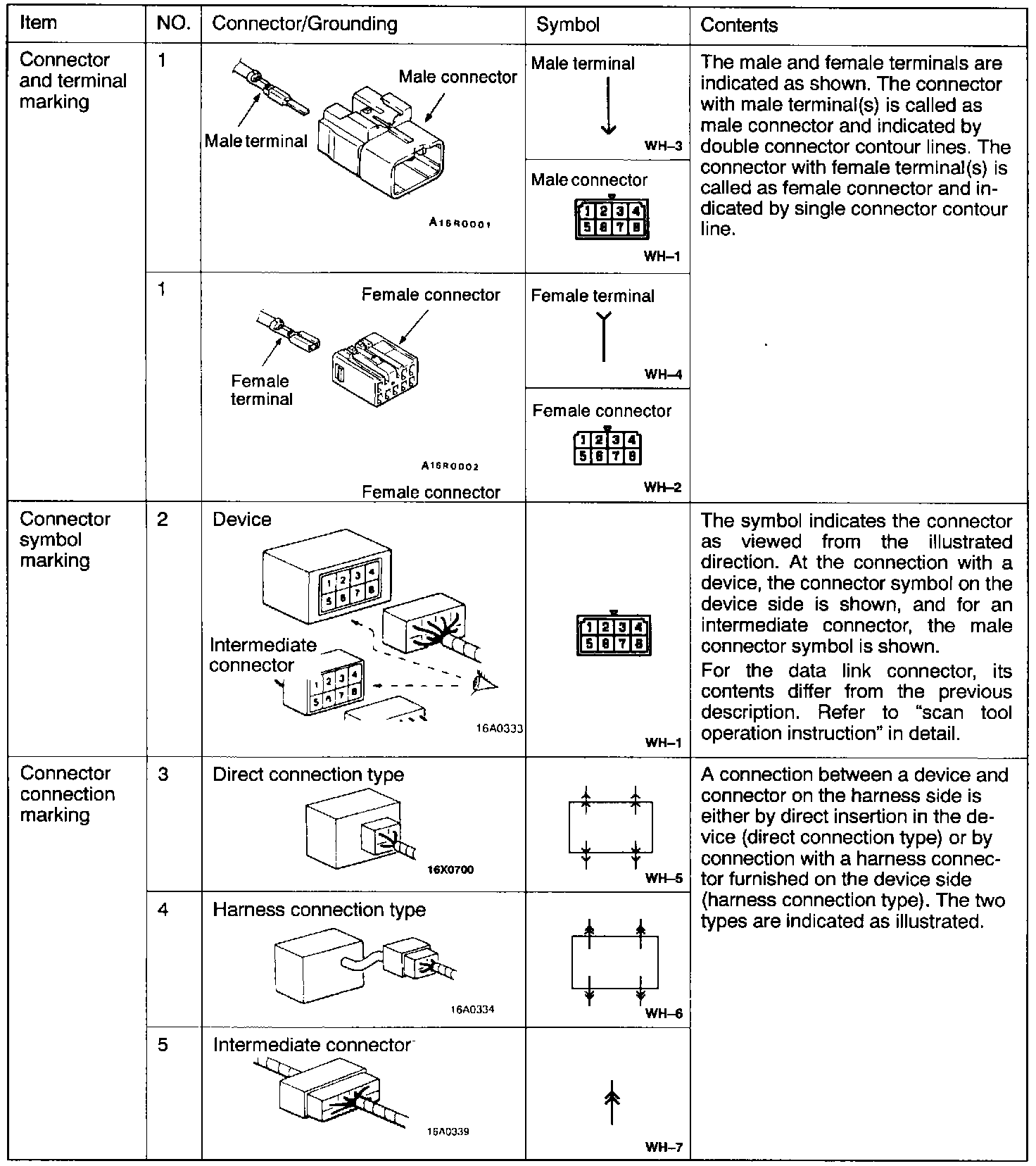

Connector Symbol And Terminal Markings:

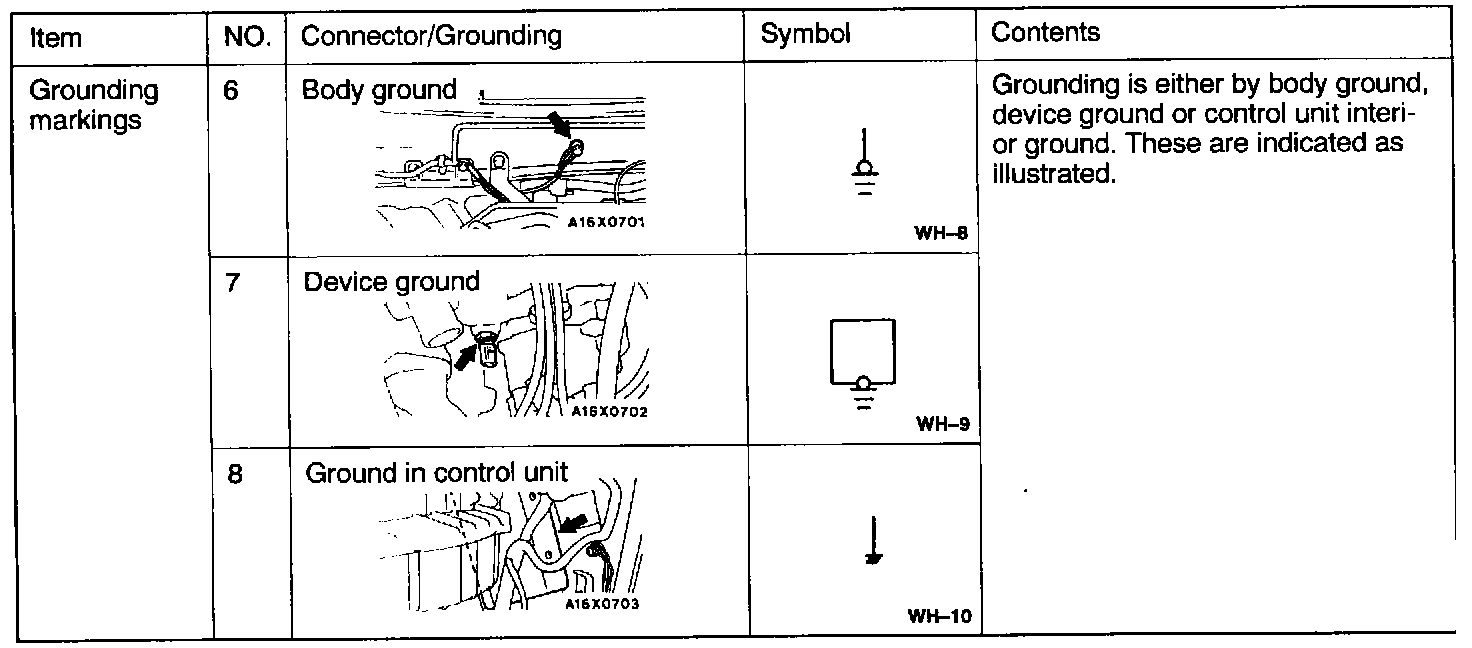

Grounding Markings:
