OBD-II Drive Cycle Pattern Lists

OTHER MONITORS
- Misfire (DTC P0300, P0301, P0302, P0303, P0304)
- Evaporative emission control system (DTC P0440)
- Idle air control system (DTC P0505)
- Manifold differential pressure sensor (DTC P1400)
- Excessive time to enter closed loop fuel control (DTC P0125)
- Throttle position sensor (DTC P0120)
- Barometric pressure sensor (DTC P0105)
- Intake air temperature sensor (DTC P0110)
- Crankshaft position sensor (DTC P0335)
- Camshaft position sensor (DTC P0340)
- Volume air flow sensor (DTC P0100)
- Engine coolant temperature sensor (DTC PO115)
- Closed throttle position switch (DTC P0510)
- Generator FR terminal circuit (DTC P1500)
- Heated oxygen sensor circuit (DTC P0130, P0136)
- Heated oxygen sensor heater circuit (DTC P0135, P0141)
- EGR solenoid (DTC P0403)
- Evaporative emission purge solenoid (DTC P0443)
- Evaporative emission purge ventilation solenoid (DTC P0446)
- Injector circuit (DTC P0201, P0202, P0203, P0204)
- Power steering pressure sensor circuit range/performance (DTC P0551)
- Serial communication link (DTC P1600)

TEST REQUIREMENTS/PROCEDURE
1. All of the following requirements should be met when carrying out a drive test.
(1) Engine coolant temperature: 80°C (176°F) or more (Engine fully warmed up)
(2) Atmospheric temperature: 5°C (41°F) or more
(3) Condition of A/T:
- Selector lever position: D range
2. One trip monitor will be completed by driving according to the steps below (from start to switch off). It will take approx. 10 minutes.
*1: After warming up, turn off the ignition switch.

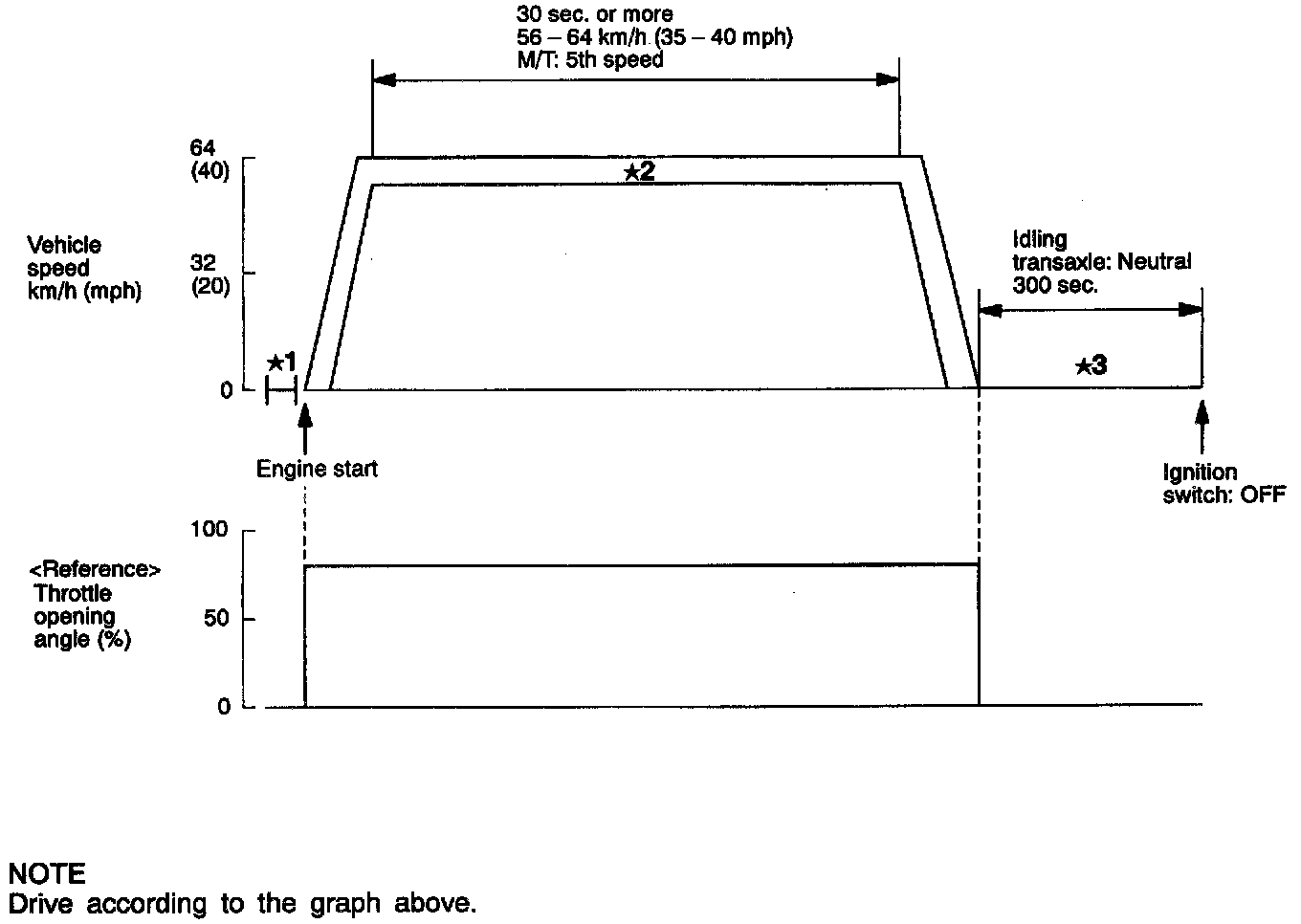

*2: Start the engine, accelerate to 56 - 64 km/h (35 - 40 mph), continue driving for 300 seconds or more at that speed range and stop. Moreover, brake or throttle may be applied for this period.
*3: After stopping the vehicle, continue idling for 300 seconds or more, and then turn off the ignition switch. Moreover, the vehicle should be set to the following conditions for idling.
- A/C switch: OFF
- Lights, electric cooling fan and all accessories: OFF
- Transaxle: Neutral (A/T for P range)
- Steering wheel: Straight-forward position
