Engine Control Module: Diagrams

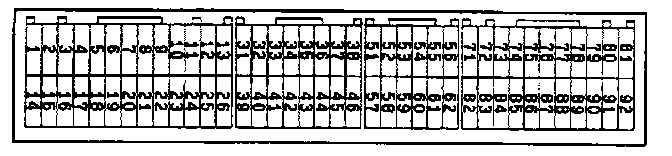

Engine Control Module (ECM) Connector Terminal Arrangement

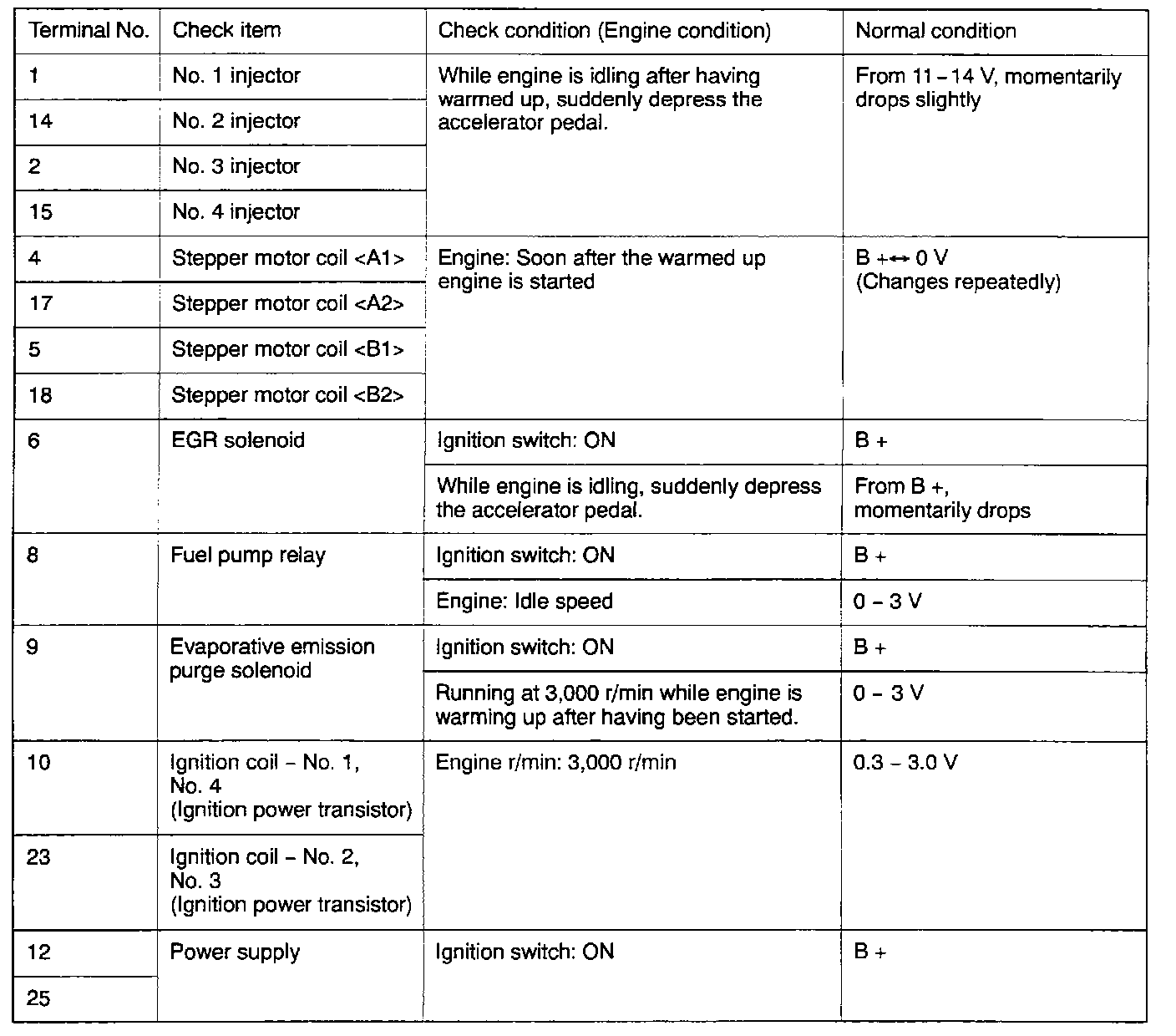

PART 1 OF 4

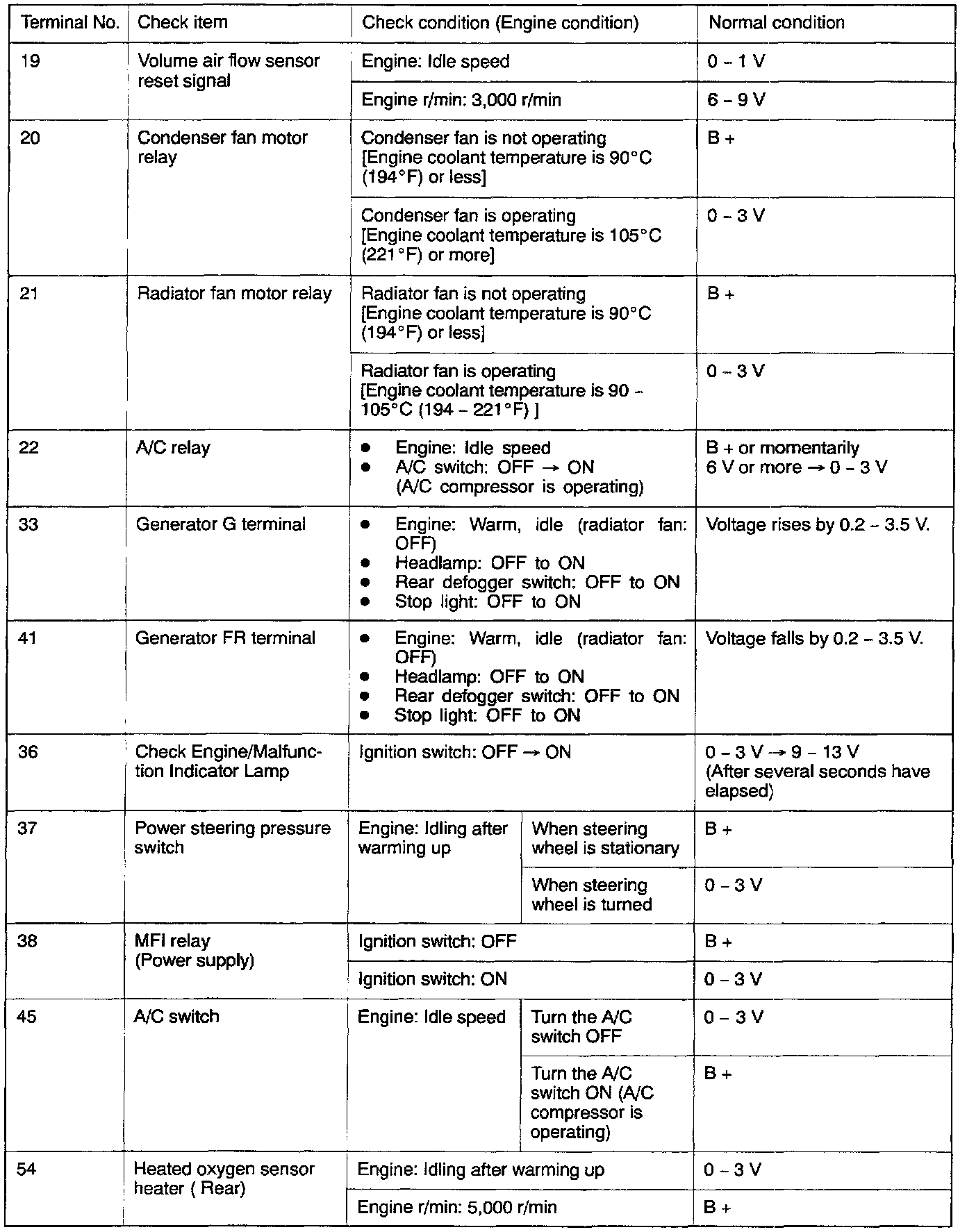

PART 2 OF 4

PART 3 OF 4

PART 4 OF 4

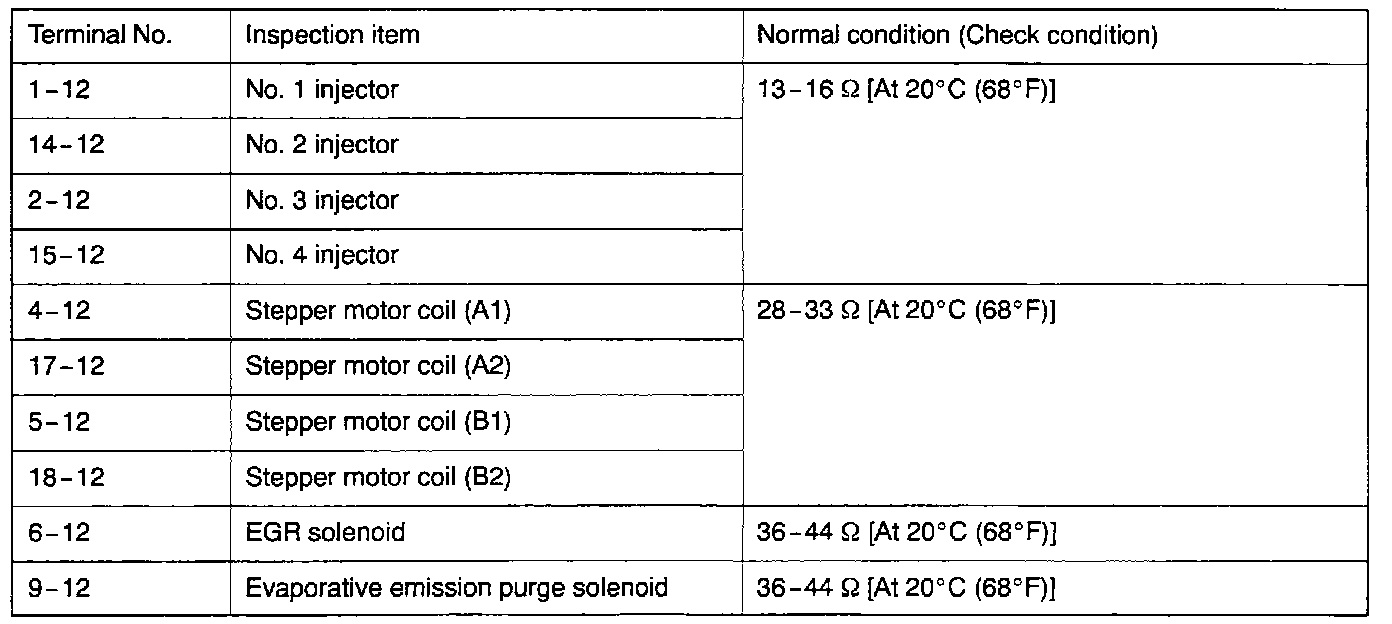

TERMINAL RESISTANCE AND CONTINUITY

PART 1 OF 2

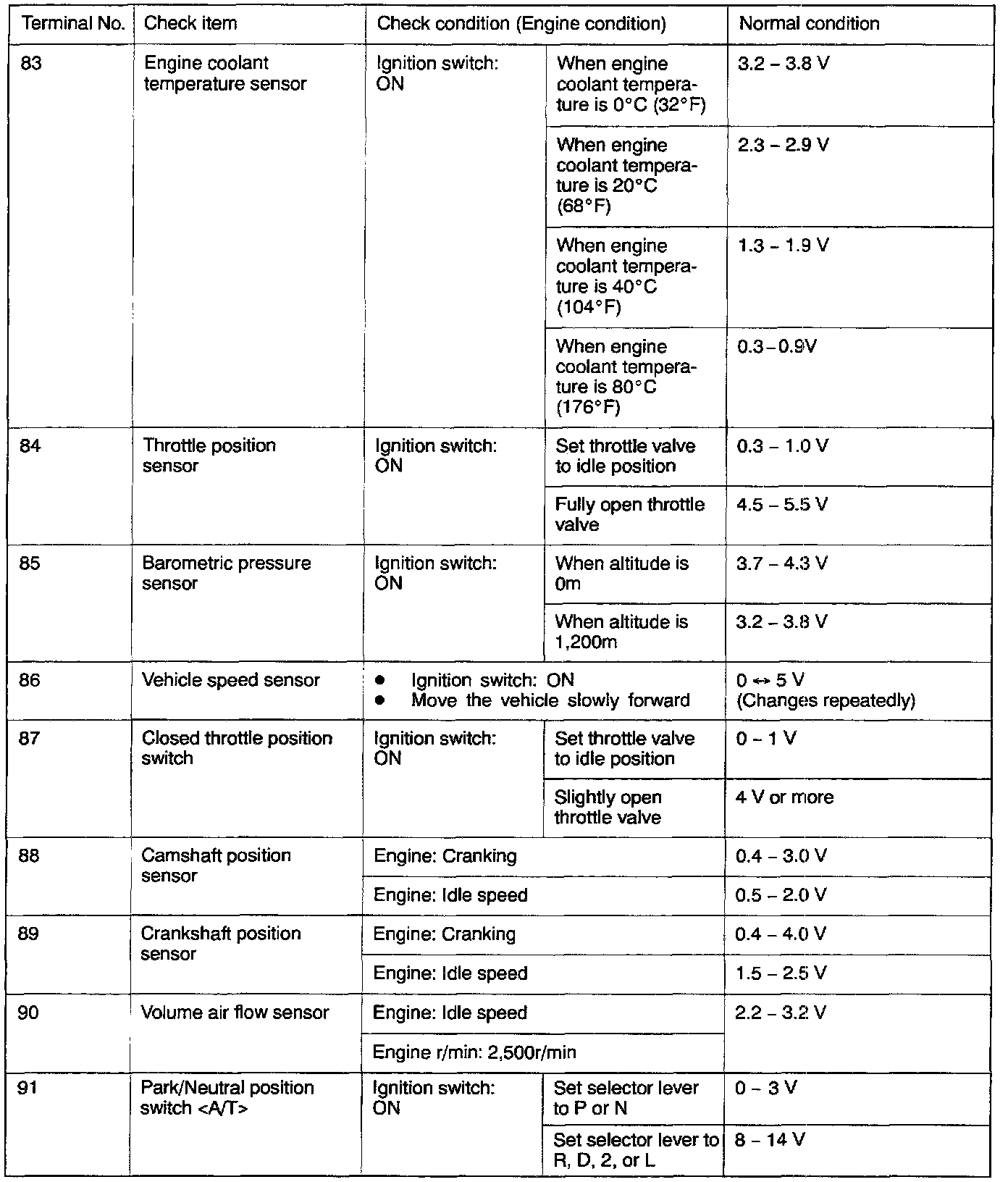

PART 2 OF 2
